Gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods. Unleash Ultimate Performance with One-Click Activation. With just a single click, unleash the full potential of CPU & DDR5 memory, instantly boosting your gaming and work efficiency. GAMING motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process. The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install. Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer. Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.

CPU

Intel Socket LGA1851 for Intel Core Ultra Processors (Series 2)

  • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset

Intel B860 Express Chipset

Memory

2 x DIMM slots, max. 128GB, DDR5

  • Support for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    • Support for HDMI 2.1 version and HDCP 2.3.
  • 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
    • Support for DisplayPort 2.1 version.

Support for up to triple-display at the same time

Audio

Realtek Audio CODEC

  • High Definition Audio
  • 2/4/5.1/7.1-channel
    • You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • Support for S-PDIF Out
LAN

Realtek 2.5GbE LAN chip

  • 2.5 Gbps / 1 Gbps / 100 Mbps
Wireless Communication Module

Realtek Wi-Fi 6 RTL8851BE

  • WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
  • Support for 11ax 80MHz wireless standard

BLUETOOTH 5.3

Expansion Slots

CPU:

  • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
    • The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage Interface

CPU:

  • 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

  • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  • 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

Chipset:

  • 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
  • 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  • 3 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

  • 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x CPU fan/water cooling pump header
  • 1 x system fan header
  • 1 x system fan/water cooling pump header
  • 3 x addressable RGB Gen2 LED strip headers
  • 2 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 1 x USB Type-C header, with USB 3.2 Gen 1 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  • 1 x serial port header
  • 1 x Q-Flash Plus button
  • 1 x reset jumper
  • 1 x Clear CMOS jumper
Back Panel Connectors
  • 1 x PS/2 keyboard/mouse port
  • 1 x HDMI port
  • 1 x DisplayPort
  • 3 x USB 3.2 Gen 1 ports
  • 3 x USB 2.0/1.1 ports
  • 2 x antenna connectors (2T2R)
  • 1 x RJ-45 port
  • 3 x audio jacks
I/O Controller
  • iTE I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
BIOS

1 x 256 Mbit flash

  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features

Support for GIGABYTE Control Center (GCC)

  • Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

  • Support for Q-Flash Plus

Support for Smart Backup

Bundled Software

  • Norton Internet Security (OEM version)
  • LAN bandwidth management software
Operating System
  • Support for Windows 11 64-bit
Form Factor
  • Micro ATX Form Factor, 24.4cm x 24.4cm
Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

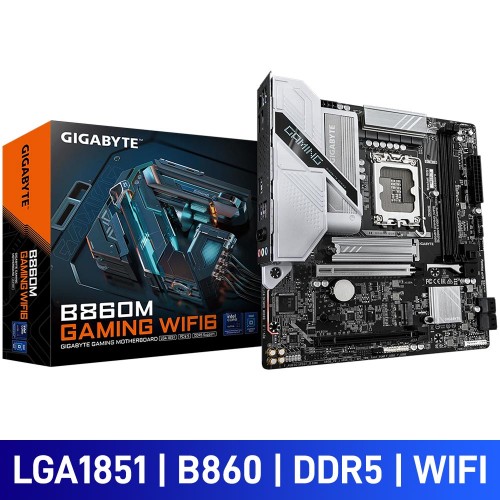

Gigabyte B860M GAMING WIFI6, Intel B860 Chipset, LGA1851, DDR5, Micro ATX Desktop Motherboard

- Socket LGA1851, Intel B860 Chipset
- Supports Intel Core Ultra (Series 2) Processors
- 2 x DDR5 DIMM Slots, up to 128GB, DDR5-9066+ (OC)
- 1 x PCIe 5.0 x16 Slot
- 1 x PCIe 4.0 x16 Slot (x4 Electrical)
- 1 x M.2 PCIe 5.0 NVMe Slot
- 1 x M.2 PCIe 4.0 NVMe Slot
- 4 x SATA Ports with RAID 0/1/5/10
- 2.5Gbps LAN, Wi-Fi 6 & Bluetooth 5.3
- 1 x DisplayPort 2.1, 1 x HDMI 2.1
- 3 x Rear USB Type-A 5Gb/s
- 3 x Rear USB 2.0/11
- 3 x Rear Audio Jacks
- M.2 EZ-Latch Click
- PCIe EZ-Latch Plus & Wi-Fi EZ-Plug
- Integrated RGB Lighting & 3 x ARGB Gen2 Headers
- Form Factor: Micro ATX
- 3 Year Warranty

  • Product Code: GA-B860M-GAMING-WIFI6
  • Availability: In Stock with Supplier leadtimeTooltip Lead Times:
    • In Stock with Progenix: Ready for collection/dispatch once payment clears. The cut-off for same-day dispatch is 12:00pm on business days.
    • In Stock with Supplier: 1-3 business days until dispatched or ready for collection
    • Special Order Item: Ordered specially upon request. Contact us for estimated lead times.
    • Out Of Stock: Contact us to see if this item will be restocked.

  • R2,981



Price displayed is already subject to a 4% discount for EFT payments

0 reviews / Write a review
