UD motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods. GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform. The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage. Innovative and intuitive hardware, software, and BIOS interface design to create your personal style. Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer.

CPU

Intel Socket LGA1851 for Intel Core Ultra Processors (Series 2)

  • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset

Intel Z890 Express Chipset

Memory

4 x DIMM slots, max. 256GB, DDR5

  • Support for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • Support CUDIMM memory module
Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

  • 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
    • Support for DisplayPort 2.1 version
  • 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
    • Support for DisplayPort 2.1 version
Audio

Realtek Audio CODEC

  • High Definition Audio
  • 2/4/5.1/7.1-channel
    • You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN

Realtek 2.5GbE LAN chip

  • 2.5 Gbps / 1 Gbps / 100 Mbps
Wireless Communication Module

Intel Wi-Fi 6E AX211 (PCB rev. 1.0)

  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.3
  • Support for 11ax 160MHz wireless standard

Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1)

  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.3
  • Support for 11ax 160MHz wireless standard
Expansion Slots

CPU

  • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
    • The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset

  • 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)
Storage Interface

CPU

  • 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
  • 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

Chipset

  • 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
  • 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

CPU

  • 1 x USB4 USB Type-C port on the back panel

Chipset

  • 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs

  • 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors

  • 1 x 24-pin ATX main power connector
  • 2 x 8-pin ATX 12V power connectors
  • 1 x CPU fan header
  • 1 x CPU fan/water cooling pump header
  • 2 x system fan headers
  • 2 x system fan/water cooling pump headers
  • 3 x addressable RGB Gen2 LED strip headers
  • 1 x RGB LED strip header
  • 3 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C header, with USB 3.2 Gen 1 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 2 x Thunderbolt add-in card connectors
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
  • 1 x serial port header
  • 1 x power button
  • 1 x reset button
  • 1 x Q-Flash Plus button
  • 1 x reset jumper
  • 1 x Clear CMOS jumper
Back Panel Connectors
  • 4 x USB 2.0/1.1 ports
  • 1 x PS/2 keyboard/mouse port
  • 1 x DisplayPort (Note)
  • 4 x USB 3.2 Gen 1 ports
  • 1 x USB4 USB Type-C port (DisplayPort)
  • 1 x USB 3.2 Gen 2 Type-A port (red)
  • 1 x RJ-45 port
  • 2 x SMA antenna connectors (2T2R)
  • 3 x audio jacks
I/O Controller
  • iTE I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
BIOS

1 x 256 Mbit flash

  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features

  • Support for GIGABYTE Control Center (GCC)
    • Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • Support for Q-Flash
  • Support for Q-Flash Plus
  • Support for Smart Backup
Bundled Software

  • Norton Internet Security (OEM version)
  • LAN bandwidth management software
Operating System
  • Support for Windows 11 64-bit (22H2 and later)
Form Factor
  • ATX Form Factor, 30.5cm x 24.4cm
Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

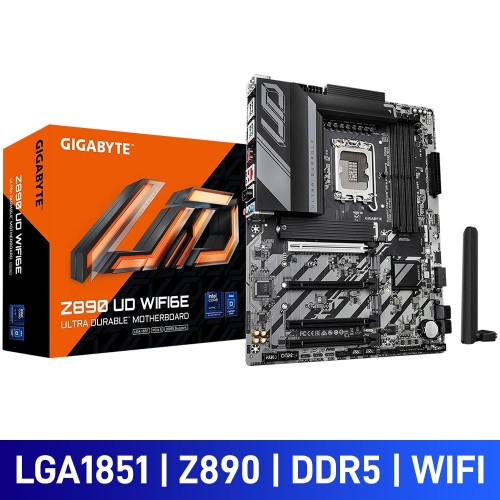

Gigabyte Z890 UD WIFI6E, Intel Z890 Chipset, LGA1851, DDR5, ATX Desktop Motherboard

- Socket LGA1851, Intel Z890 Chipset
- Supports Intel Core Ultra (Series 2) Processors
- 4 x DDR5 DIMM Slots, Up To 256GB, DDR5-8800+ (OC)
- 1 x PCIe 5.0 x16 Slot
- 2 x PCIe 4.0 x16 Slots (x4 Electrical)
- 1 x PCIe 4.0 x16 Slot (x1 Electrical)
- 1 x M.2 PCIe 5.0 NVMe Slots
- 2 x M.2 PCIe 4.0 NVMe Slots
- 4 x SATA Ports with RAID 0/1/5/10
- 2.5Gbps LAN & Wi-Fi 6E
- 1 x DisplayPort 2.1, 1 x Thunderbolt DP
- 1 x Rear Thunderbolt 4 / USB 4.0 Type-C 40Gb/s
- 1 x Rear USB Type-A 10Gb/s, 4 x Rear USB Type-A 5Gb/s
- Form Factor: ATX
- 3 Year Warranty
