The ROG Strix X870E-E Gaming WiFi is engineered to harness the full potential of AMD Ryzen 9000 Series processors. Featuring PCIe 5.0 support, AI Overclocking, AI Cooling II, AI Networking II, and AEMP, setup is streamlined while performance is maximized. Dual USB4 Type-C ports and WiFi 7 with Realtek 5Gb Ethernet ensure top-tier connectivity, while robust heatsinks keep M.2 drives cool under heavy loads. This motherboard not only meets the demands of gaming and professional applications but also delivers the power and connectivity essential for advanced AI PC applications.

CPU	AMD Socket AM5 for AMD Ryzen 7000 / 8000 / 9000 Series Desktop Processors (Refer to www.asus.com for CPU support list.)
Chipset	AMD X870E
Memory	4 x DIMM slots, max. 192GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen 9000 Series Processors 8400+MT/s(OC) with Ryzen 8000 Series Processors 8000+MT/s(OC) with Ryzen 7000 Series Processors ECC and Non-ECC Un-buffered DIMM Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO) NitroPath DRAM Technology ASUS Enhanced Memory Profile (AEMP)
Onboard Graphics	Integrated Graphics Processor: 1 x HDMI port Supports max. 4K@60Hz as specified in HDMI 2.1. 2 x USB4 (40Gbps) ports support USB Type-C display outputs Supports max. 4K@60Hz as specified in DisplayPort 1.4a
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 Impedance sense for front and rear headphone outputs Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking High quality 120 dB SNR stereo playback output and 110 dB SNR recording input Supports up to 32-Bit/384 kHz playback The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. Audio Features Audio Shielding Savitech SV3H712 AMP Gold-plated audio jacks Rear optical S/PDIF out port Premium audio capacitors Audio cover
LAN	1 x Realtek 5Gb Ethernet ASUS LANGuard
Wireless Communication Module	Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate. For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details. Bluetooth v5.4
Expansion Slots	AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slots (supports x16 mode) AMD X870E Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)
Storage Interface	Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 & M.2_3 slots share bandwidth with PCIEX16(G5). When M.2_2 & M.2_3 are occupied with SSD devices, PCIEX16(G5) will run x8 only. M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 & M.2_3 slots share bandwidth with PCIEX16(G5). When M.2_2 & M.2_3 are occupied with SSD devices, PCIEX16(G5) will run x8 only. AMD X870E Chipset M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Funciton is only supportted by AMD Ryzen 9000series CPU.
USB	Rear USB (Total 13 ports) 2 x USB4 (40Gbps) ports(2 x USB Type-C) 1 x USB 20Gbps port (1 x USB Type-C with up to 30W PD Fast-charge) USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A 10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C) Front USB (Total 11 ports) 1 x USB 20Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports USB Type-C power delivery output: 5V/3A
Internal I/O Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x CPU Over Voltage jumper 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header

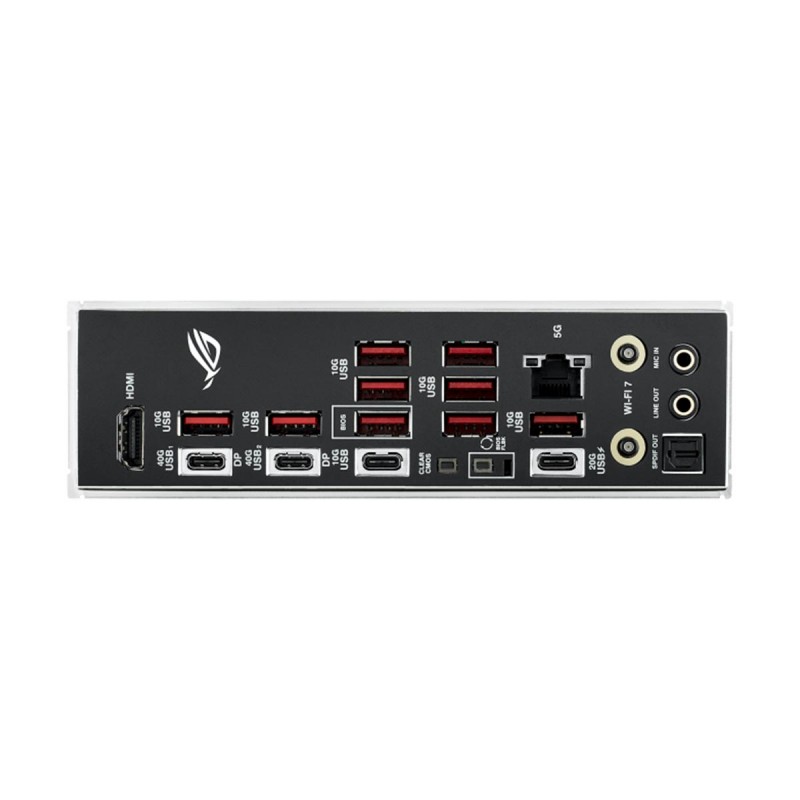

Back Panel Connectors	2 x USB4 (40Gbps) ports (2 x USB Type-C) 1 x USB 20Gbps port (1 x USB Type-C with up to 30W PD Fast-charge) 10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C) 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 5Gb Ethernet 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button
I/O Controller	Not Specified
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Unique Features	Extreme Engine Digi+ 5K Black Metallic Capacitors ASUS Q-Design M.2 Q-Latch M.2 Q-Release M.2 Q-Slide PCIe Slot Q-Release Slim (with PCIe SafeSlot) Q-Antenna Q-Code Q-Dashboard Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) Q-Slot ASUS Thermal Solution M.2 heatsinks M.2 heatsink backplate VRM heatsink design ASUS EZ DIY BIOS FlashBack button BIOS FlashBack LED Clear CMOS button ProCool II Pre-mounted I/O shield SafeSlot SafeDIMM Aura Sync Addressable Gen 2 headers
Bundled Software	ROG Exclusive Software ROG CPU-Z Dolby Atmos Armoury Crate AIDA64 Extreme (60 days free trial) Aura Creator Aura Sync Fan Xpert 4 (with AI Cooling II) GameFirst HWiNFO Power Saving ASUS Driver Hub ASUS GlideX TurboV Core USB Wattage Watcher Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode MyHotkey Dynamic OC Switcher FlexKey
Operating System	Support for Windows 10 64-bit / Windows 11 64-bit
Form Factor	ATX Form Factor, 30.5cm x 24.4cm

Manufacturer
Manufacturer's Website	Link *
Product Website	Link *
Warranty Information
Warranty Duration	3 Years

* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating Bad Good

ASUS ROG STRIX X870E-E GAMING WIFI, AMD X870E Chipset, Socket AM5, ATX Desktop Motherboard

- Socket Socket AM5, AMD X870 Chipset
- Supports Ryzen 7000 / 8000 / 9000 Series Processors
- 4 x DDR5 DIMM Slots, up to 192GB, DDR5-8400
- 1 x PCIe 5.0 x16 Slot
- 1 x PCIe 4.0 x16 Slot (x4 electrical)
- 3 x M.2 PCIe 5.0 NVMe Slots
- 2 x M.2 PCIe 4.0 NVMe Slots
- 4 x SATA 3.0 Ports, Supports RAID 0 / 1 / 5 / 10
- 5Gbps LAN & Wi-Fi 7
- 1 x HDMI 2.1, 2 x Type-C DisplayPort Alt Mode
- 2 x Rear USB Type-C 40Gb/s
- 1 x Rear USB Type-C 20Gb/s, 1 x Rear USB Type-C 10Gb/s
- 9 x USB Type-A 10Gb/s
- Form Factor: ATX
- 3 Year Warranty

Product Code: 90MB1IB0-M0EAY0
Availability: Out Of Stock Lead Times:

In Stock with Progenix: Ready for collection/dispatch once payment clears. The cut-off for same-day dispatch is 12:00pm on business days.

In Stock with Supplier: 1-3 business days until dispatched or ready for collection

Out Of Stock: Contact us to see if this item will be restocked.

OUT OF STOCK

Qty

Price displayed is already subject to a 4% discount for EFT payments

0 reviews / Write a review
