Intel Socket LGA1851 for Intel Core Ultra Processors (Series 2)

• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Intel Z890 Express Chipset

4 x DIMM slots, max. 192GB, DDR5

• Support up to 8800 +MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
• Dual Channel Memory Architecture

• Supports Intel Extreme Memory Profile (XMP) memory module
• Supports DIMM Flex
• NitroPath DRAM Technology
• DIMM Fit
• ASUS Enhanced Memory Profile III (AEMP III)

Integrated Graphics Processor-Intel HD Graphics support:

• 1 x DisplayPort
• Supports max. 8K@60Hz as specified in DisplayPort 1.4.
• 1 x HDMI port
• Supports 4K@60Hz as specified in HDMI 2.1.
• 2 x Intel Thunderbolt 4 support DisplayPort and Thunderbolt video outputs
• Supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

• Impedance sense for front and rear headphone outputs
• Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
• High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
• Supports up to 32-Bit/384 kHz playback on front panel
• The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
• Audio Features
• Audio Shielding

• Savitech SV3H712 AMP
• Gold-plated audio jacks
• Rear optical S/PDIF out port
• Premium audio capacitors
• Audio cover

1 x Realtek 5Gb Ethernet

• ASUS LANGuard

Wi-Fi 7

• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.

Bluetooth v5.4

CPU

• 1 x PCIe 5.0 x16 slot

Chipset

• 1 x PCIe 4.0 x16 slot (supports x4 mode)

Total supports 7 x M.2 slots and 4 x SATA 6Gb/s ports

CPU

• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 & M.2_3 slots share bandwidth with PCIEX16(G5). When M.2_2 & M.2_3 are occupied with SSD devices, PCIEX16(G5) will run x8 only.
• M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 & M.2_3 slots share bandwidth with PCIEX16(G5). When M.2_2 & M.2_3 are occupied with SSD devices, PCIEX16(G5) will run x8 only.

Chipset

• M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_7 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

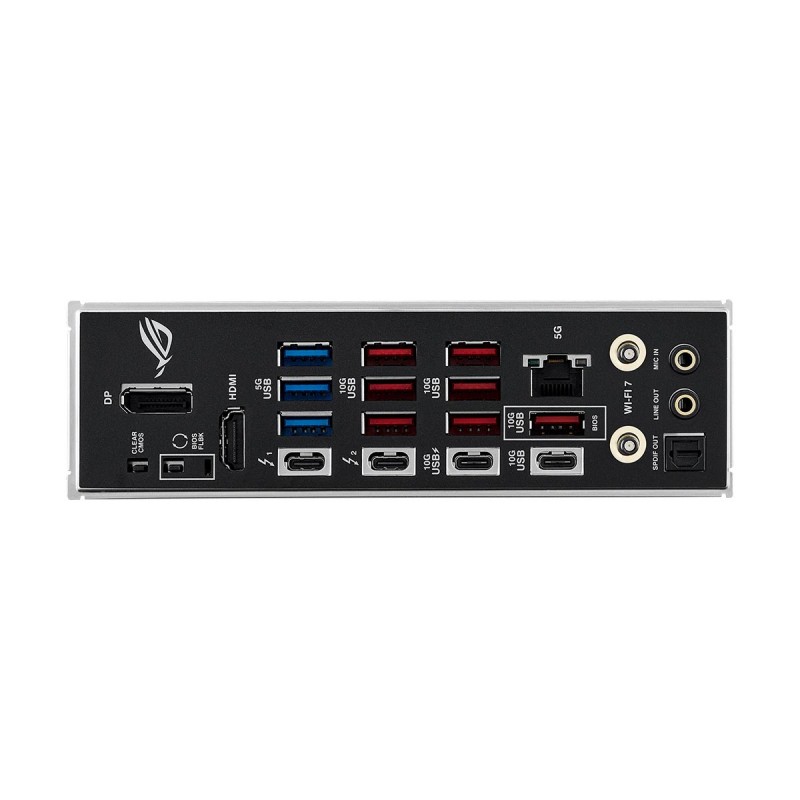

Rear USB (Total 14 ports)

• 2 x Thunderbolt 4 ports  (2 x USB Type-C)
• 9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C + 1 x USB Type-C with up to 30W PD Fast-charge)
• USB Type-C power delivery output: 5V/3A
• USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2A.
• 3 x USB 5Gbps ports (3 x Type-A)

Front USB (Total 11 ports)

• 1 x USB 20Gbps connector (supports USB Type-C)
• 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
• 3 x USB 2.0 headers support additional 6 USB 2.0 ports

Fan and Cooling related

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 5 x 4-pin Chassis Fan headers

Power related

• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connectors

Storage related

• 7 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports

USB

• 1 x USB 20Gbps connector (supports USB Type-C)
• 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
• 3 x USB 2.0 headers support additional 6 USB 2.0 ports

Miscellaneous

• 3 x Addressable Gen 2 headers
• 1 x CPU Over Voltage jumper
• 1 x FlexKey button
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x Start button
• 1 x 10-1 pin System Panel header
• 1 x Thermal Sensor header

• 2 x Thunderbolt 4 USB Type-C ports  (2 x USB Type-C)

• 9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C + 1 x USB Type-C with up to 30W PD Fast-charge)
• 3 x USB 5Gbps ports (3 x Type-A)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x Wi-Fi Module
• 1 x Realtek 5Gb Ethernet
• 2 x Gold-plated audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack  button
• 1 x Clear CMOS button

• iTE I/O Controller Chip

• Voltage detection
• Temperature detection
• Fan speed detection
• Fan fail warning

• Fan speed control

Extreme Engine Digi+

• 5K Black Metallic Capacitors

ASUS Q-Design

• M.2 Q-Latch
• M.2 Q-Release
• M.2 Q-Slide
• PCIe Slot Q-Release Slim (with PCIe SafeSlot)
• Q-Antenna
• Q-Code
• Q-Dashboard
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• Q-Slot

ASUS Thermal Solution

• M.2 heatsinks
• M.2 heatsink backplate
• VRM heatsink design

ASUS EZ DIY

• BIOS FlashBack button
• BIOS FlashBack LED
• Clear CMOS button
• ProCool II
• Pre-mounted I/O shield
• SafeSlot
• SafeDIMM

Aura Sync

• Addressable Gen 2 headers

ROG Exclusive Software

• ROG CPU-Z
• Dolby Atmos

Armoury Crate

• AIDA64 Extreme (60 days free trial)
• Aura Creator
• Aura Sync
• Fan Xpert 4 (with AI Cooling II)
• GameFirst
• HWiNFO
• Power Saving

ASUS Driver Hub

ASUS GlideX

TurboV Core

USB Wattage Watcher

Adobe Creative Cloud (Free Trial)

Norton 360 for Gamers (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

AI Overclocking Guide

ASUS EZ DIY

• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
• ASUS MyHotkey

NPU Boost

FlexKey

• Support for Windows 11 64-bit (22H2 and later)

• ATX Form Factor, 30.5cm x 24.4cm
