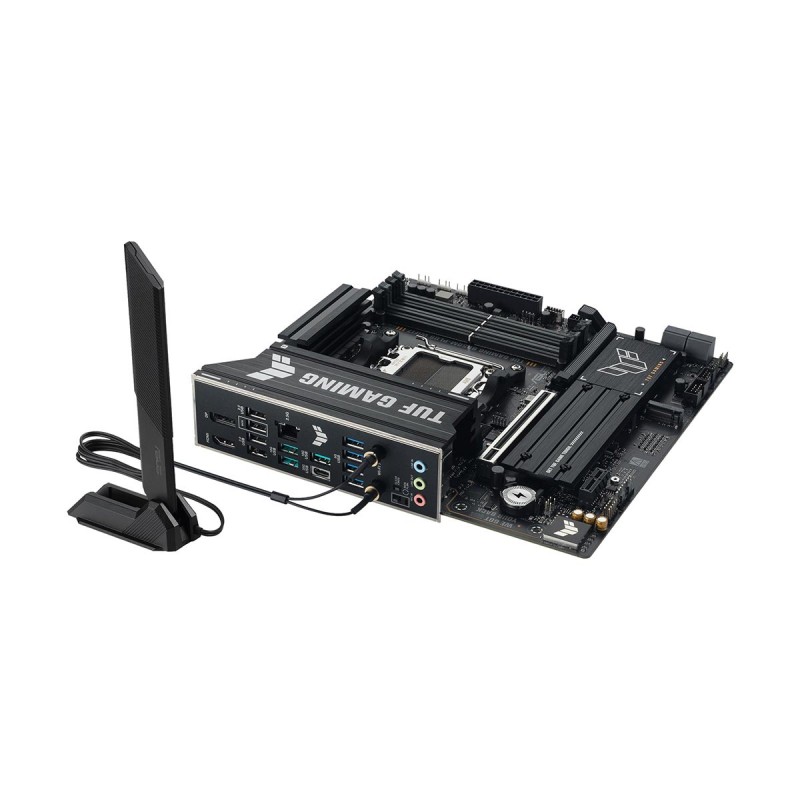

ASUS TUF GAMING B850M-PLUS WIFI7 takes all the essential elements of the latest AMD Ryzen processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

CPU	AMD Socket AM5 Supports AMD Ryzen 7000 / 8000 / 9000 Series Desktop Processors
Chipset	AMD B850
Memory	4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors ECC and Non-ECC Un-buffered DIMM Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP)
Onboard Graphics	Integrated Graphics Processor: 1 x DisplayPort Supports max. 8K@30Hz as specified in DisplayPort 1.4. 1 x HDMI port Supports 4K@60Hz as specified in HDMI 2.1.
Audio	Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC Impedance sense for front and rear headphone outputs Internal audio Amplifier to enhance the highest quality sound for headphone and speakers Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) Supports up to 32-Bit/192 kHz playback Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. Audio Features: Audio Shielding Premium audio capacitors Dedicated audio PCB layers Audio cover Unique de-pop circuit
LAN	1 x Realtek 2.5Gb Ethernet TUF LANGuard
Wireless Communication Module	Wi-Fi 7 (MediaTek MT7925) 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth Bluetooth v5.4
Expansion Slots	AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B850 Chipset 1 x PCIe 4.0 x1 slot
Storage Interface	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) AMD B850 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10
USB	Rear USB (Total 12 ports) 1 x USB 20Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 6 ports) 1 x USB 10Gbps connector (supports USB Type-C) USB Type-C power delivery output: max. 5V/3A. 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports
Internal I/O Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front Panel System header
Back Panel Connectors	1 x USB 20Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button 1 x Clear CMOS button
I/O Controller	Not Specified
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control
BIOS	256 Mb Flash ROM UEFI AMI BIOS
Unique Features	ASUS TUF PROTECTION DIGI+ VRM (- Digital power design with DrMOS) ESD Guards TUF LANGuard Overvoltage protection SafeSlot Stainless-steel back I/O ASUS Q-Design M.2 Q-Latch PCIe Slot Q-Release Q-Antenna Q-Dashboard Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution M.2 heatsink VRM heatsink design ASUS EZ DIY BIOS FlashBack button BIOS FlashBack LED ProCool Pre-mounted I/O shield SafeDIMM Aura Sync Addressable Gen 2 headers
Bundled Software	Armoury Crate Aura Creator Aura Sync Fan Xpert 2+ ASUS AI Advisor ASUS DriverHub TUF GAMING CPU-Z ASUS GlideX TurboV Core DTS Audio Processing Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Cache Boost ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode ASUS MyHotkey
Operating System	Support for Windows 11 64-bit
Form Factor	Micro ATX Form Factor 24.4cm x 24.4cm

Manufacturer
Manufacturer's Website	Link *
Product Website	Link *
Warranty Information
Warranty Duration	3 Years

* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating Bad Good

ASUS TUF GAMING B850M-PLUS WIFI7, AMD B850 Chipset, Socket AM5, Micro ATX Desktop Motherboard

- Socket Socket AM5, AMD B840 Chipset
- Supports Ryzen 7000 / 8000 / 9000 Series Processors
- 4 x DDR5 DIMM Slots, up to 256GB, DDR5-8000+
- 1 x PCIe 5.0 x16 Slot
- 1 x PCIe 4.0 x1 Slot
- 1 x M.2 PCIe 5.0 NVMe Slot
- 2 x M.2 PCIe 4.0 NVMe Slots
- 4 x SATA 3.0 Ports, Supports RAID 0 / 1 / 5 / 10
- 2.5Gbps LAN, Wi-Fi 7 & Bluetooth 5.4
- 1 x HDMI 2.1, 1 x DisplayPort 1.4
- 1 x Rear USB Type-C 20Gb/s
- 3 x Rear USB Type-A 10Gb/s, 4 x USB Type-A 5Gb/s
- 4 x USB 2.0/1.1 Ports
- 3 x Rear Audio Jacks
- BIOS Flashback: Update BIOS without CPU / RAM / GPU
- ASUS M.2 Q-Latch
- Q-Antenna Quick-Release Wi-Fi Antenna
- ASUS Q-LED for Boot Diagnostics
- 3 x ARGB Gen2 Headers
- Form Factor: Micro ATX
- 3 Year Warranty

Product Code: 90MB1MU0-M0EAY0
