• Intel Socket 2066 Core X-Series Processors

• Optimized for Intel Core X-Series 10000 Processor Family

• Intel X299 Express Chipset


• Intel Core i9 10000 X-Series CPU
  8 x DIMM, Max. 256GB, DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory
• Intel Core i9 9000/7000 and i7 9000 X-Series CPU
  8 x DIMM, Max. 256GB, DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory
• Intel Core X-series Processors (4-core)
  4 x DIMM, Max. 64GB, DDR4 4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
• Supports Intel Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.

• None

• Realtek S1220A 8-Channel High Definition Audio CODEC
  Impedance sense for front and rear headphone outputs
  Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
  Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Audio Feature:
  DTS Connect
  DTS Headphone:X
  Optical S/PDIF out port(s) at back panel
  Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  Unique de-pop circuit: Reduces start-up popping noise to audio outputs
  EMI protection cover to prevent electrical noise to affect the amplifier quality
• Separate layer for left and right track, ensuring both sound deliver equal quality

• Intel I219V, 1 x Gigabit LAN Controller(s), featuring Turbo LAN

• ASUS Turbo LAN Utility
• ASUS LAN Guard

• None

• 44-Lane CPU
  3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
  2 x PCIe 3.0 x4 (max at x4 mode)
  1 x PCIe 3.0/2.0 x1
• 28-Lane CPU
  3 x PCIe 3.0/2.0 x16 (x16, x16/x8, x16/x8/x1)
  2 x PCIe 3.0 x4 (max at x4 mode)
  1 x PCIe 3.0/2.0 x1
• 16-Lane CPU
  3 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x8/x1)
  2 x PCIe 3.0 x4 (max at x4 mode)
  1 x PCIe 3.0/2.0 x1

• Supports NVIDIA Quad-GPU SLI Technology

• Supports NVIDIA 3-Way SLI Technology
• Supports NVIDIA 2-Way SLI Technology
• Supports AMD Quad-GPU CrossFireX Technology
• Supports AMD 3-Way CrossFireX Technology

Intel X299 Chipset

• 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 8 x SATA 6Gb/s port(s)
• Support Raid 0, 1, 5, 10
• Supports Intel Smart Response Technology, Intel Rapid Start Technology
• Intel Optane Memory Ready

ASMedia USB 3.2 Gen 2 controller :

• 1 x USB 3.1 Gen 2 port(s) (1 at mid-board)

ASMedia USB 3.2 Gen 2 controller :

• 2 x USB 3.1 Gen 2 port(s) (Type-A + USB Type-C)

Intel X299 Chipset :

• 8 x USB 3.1 Gen 1 port(s) (4 at back panel, 4 at mid-board)

Intel X299 Chipset :

• 4 x USB 2.0 port(s) (4 at back panel, 2 at mid-board)

• 1 x AAFP connector

• 2 x Aura RGB Strip Header
• 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
• 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 8 x SATA 6Gb/s connector(s)
• 1 x M.2_FAN connector
• 1 x VROC_HW_Key
• 1 x CPU Fan connector(s)
• 1 x CPU OPT Fan connector(s)
• 2 x Chassis Fan connector(s)
• 1 x AIO_PUMP connector
• 1 x W_PUMP+ connector
• 1 x Thunderbolt header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x System panel(s) (Q-Connector)
• 1 x 5-pin EXT_FAN(Extension Fan) connector
• 1 x MemOK! button(s)
• 1 x Thermal sensor connector(s)
• 1 x Power-on button(s)
• 1 x Clear CMOS jumper(s)
• 1 x USB 3.2 Gen 2 front panel connector
• 1 x CPU_OV jumper

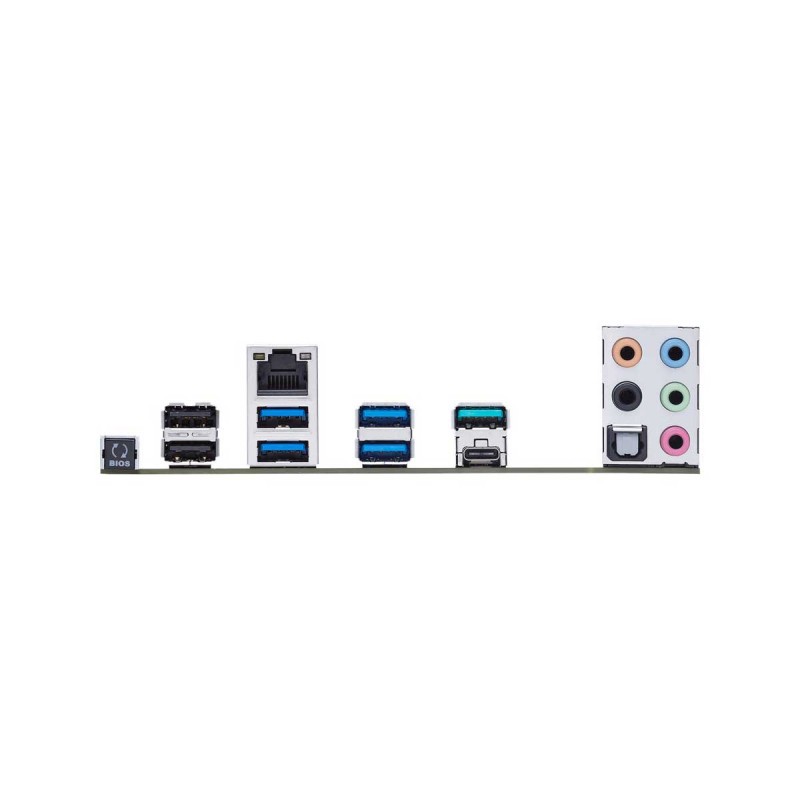

• 1 x LAN (RJ45) port(s)

• 2 x USB 3.2 Gen 2 Type-A + USB Type-C,
• 4 x USB 3.2 Gen 1
• 2 x USB 2.0 (one port can be switched to USB BIOS FlashBack)
• 1 x Optical S/PDIF out
• 5 x Audio jack(s)
• 1 x USB BIOS FlashBack Button(s)

• N/A

• Voltage detection
• Temperature detection
• Fan speed detection
• Overheating warning
• Fan fail warning
• Fan speed control


• 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS,

• ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information

• OC Design - ASUS PRO Clock II Technology

• ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5:
  5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App
• AURA:
  Aura RGB Strip Headers
  Aura Lighting Effects Synchronization with compatible ASUS ROG devices
• ASUS Exclusive Features:
  USB BIOS FlashBack
  MemOK!
  AI Suite 3
  Ai Charger
  Onboard Button : Power
  ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
  Turbo LAN
  Crystal Sound 3
• ASUS EZ DIY:
  ASUS EZ Flash 3
  ASUS USB BIOS FlashBack
  ASUS UEFI BIOS EZ Mode
  Multi-language BIOS
• ASUS Q-Design:
  ASUS Q-Shield
  ASUS Q-Code
  ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED)
  ASUS Q-Slot
  ASUS Q-DIMM
  ASUS Q-Connector
• Gaming Aesthetics:
  3D printing friendly
  AURA-RGB Lighting
• M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

• Drivers

• ASUS Utilities
• EZ Update
• Anti-virus software (OEM version)

• Support for Windows 10 64-bit

• ATX Form Factor, 30.5cm x 24.4cm
