Images are for reference purposes only and product appearances/colours may vary.

Supports 7th Generation Intel Core Processor. Intel B250 single chip architecture. Support 2-DIMM DDR4-2400/ 2133/ 1866 up to 32G maximum capacity. Support 8 x PCI-E slots. Support DVI-D. Support USB 3.0.

CPU
  • Intel Socket 1151 6th and 7th Gen Processors
  • 6th and 7th Gen Celeron / Pentium / Core i3 / Core i5 / Core i7
    Maximum TDP: 95w
Chipset
  • Intel B250 Chipset
Memory
  • Support Dual Channel DDR4 2400/ 2133/ 1866 MHz
  • 2 x DDR4 DIMM Memory Slot
  • Max. Supports up to 32GB Memory
    * DDR4 2400 for 7th Generation Intel Core Processor Family
Onboard Graphics
  • DVI-D
Audio
  • Realtek ALC887 8-Channel HD Audio
  • Support HD Audio
LAN
  • Realtek RTL8111H - 10/100/1000Mb/s Controller
  • Support Super LAN Surge Protection
Wireless Communication Module
  • None
Expansion Slots
  • 1 x PCI-E 3.0 x16 Slot
  • 7 x PCI-E 3.0 x1 Slot
    Note: PEX1_6//11 slot are not compatible with ATX standard, users need extra connecting kit to install VGA card for crypto mining.
Multi-Graphics Technology
  • None
Storage Interface

Intel B250 Chipset

  • 6 x SATA 6Gb/s port(s)
USB

Intel B250 Chipset :

  • 4 x USB 3.0 Port
  • 1 x USB 3.0 Header
  • 2 x USB 2.0 Port
  • 2 x USB 2.0 Port (only 5V power, up to 1.5A)
  • 2 x USB 2.0 Header
Internal I/O Connectors
  • 1 x USB 3.0 Header
  • 2 x USB 2.0 Header
  • 6 x SATA III Connector (6Gb/s)
  • 1 x SATA Power Connector (for rear USB power enhancement)
  • 1 x Front Audio Header
  • 1 x Front Panel Header
  • 1 x CPU Fan Connector
  • 2 x System Fan Connector
  • 2 x PCI-E 12V 4Pin Connector (Must be installed when using for bitcoin mining.)
  • 1 x COM Port Header

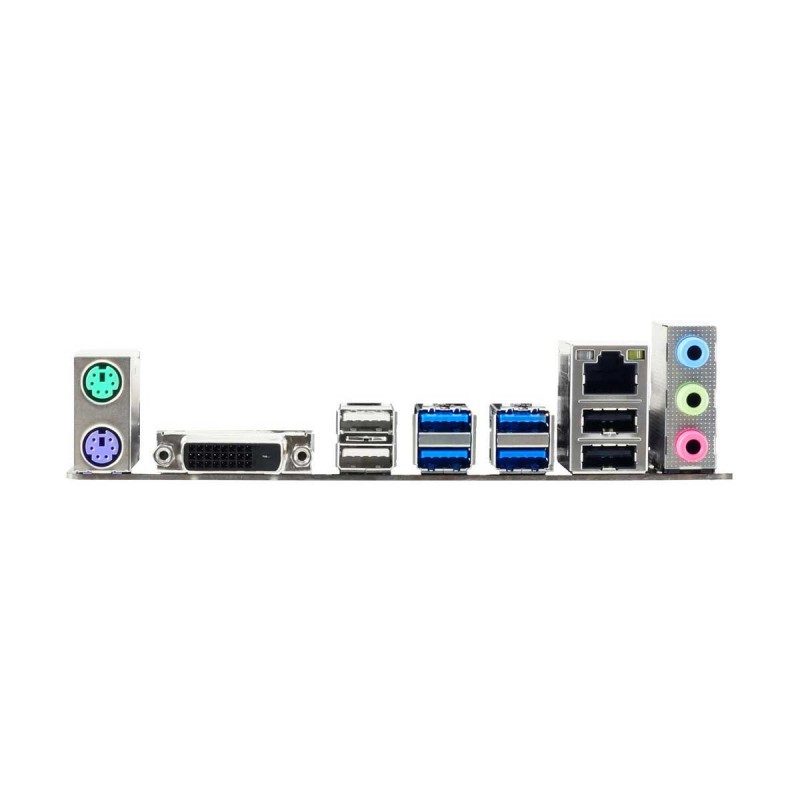

Back Panel Connectors
  • 1 x PS/2 Mouse
  • 1 x PS/2 Keyboard
  • 4 x USB 3.0 Port
  • 2 x USB 2.0 Port
  • 2 x USB 2.0 Port (only 5V power, up to 1.5A)
  • 1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz
  • 1 x LAN Port
  • 3 x Audio Jacks
I/O Controller
  • N/A
H/W Monitoring
  • CPU / System Temperature Monitoring
  • CPU / System Fan Monitoring
  • Smart / Manual CPU Fan Control
  • System Voltage Monitoring
BIOS
  • Not Specified
Unique Features
  • Supports 100% Solid capacitor
  • Supports Charger Booster
  • Supports BIOS Online Update
Bundled Software
  • BullGuard
  • Smart Speed LAN(Windows 7/ 8.1 only)
  • Intel Rapid Storage Technology
Operating System
  • Support for Windows 10 64-bit
Form Factor
  • ATX Form Factor, 29.5cm x 21.0cm

Write a review

Note: HTML is not translated!
    Bad           Good

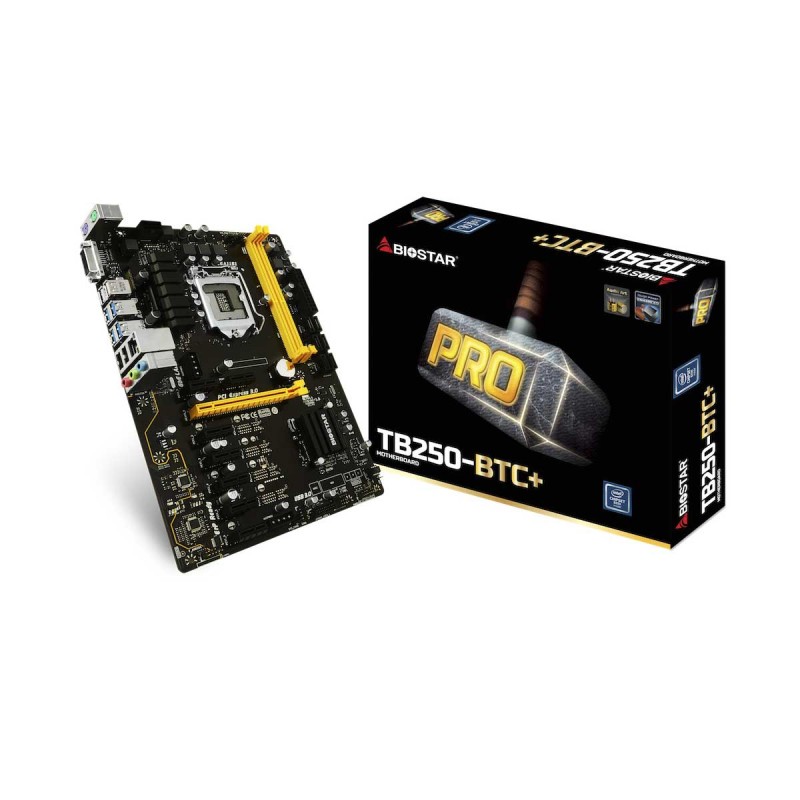

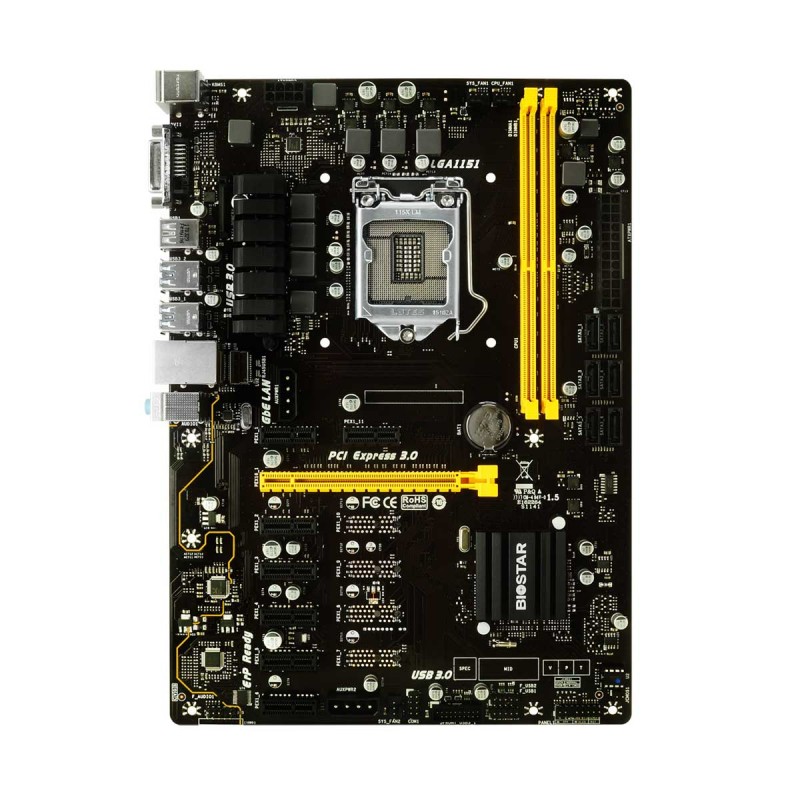

Biostar TB250-BTC+, Intel B250 Chipset, LGA1151, ATX Desktop Mining Motherboard

END OF LIFE / DISCONTINUED


  • Product Code: TB250 BTC+
  • Availability: Out Of Stock leadtimeTooltip Lead Times:
    • In Stock with Progenix: Ready for collection/dispatch once payment clears
    • In Stock with Supplier: 1-3 working days until dispatched or ready for collection
    • Out Of Stock: Contact us to see if this item will be restocked.
OUT OF STOCK


Price displayed is already subject to a 4% discount for EFT payments

0 reviews / Write a review
