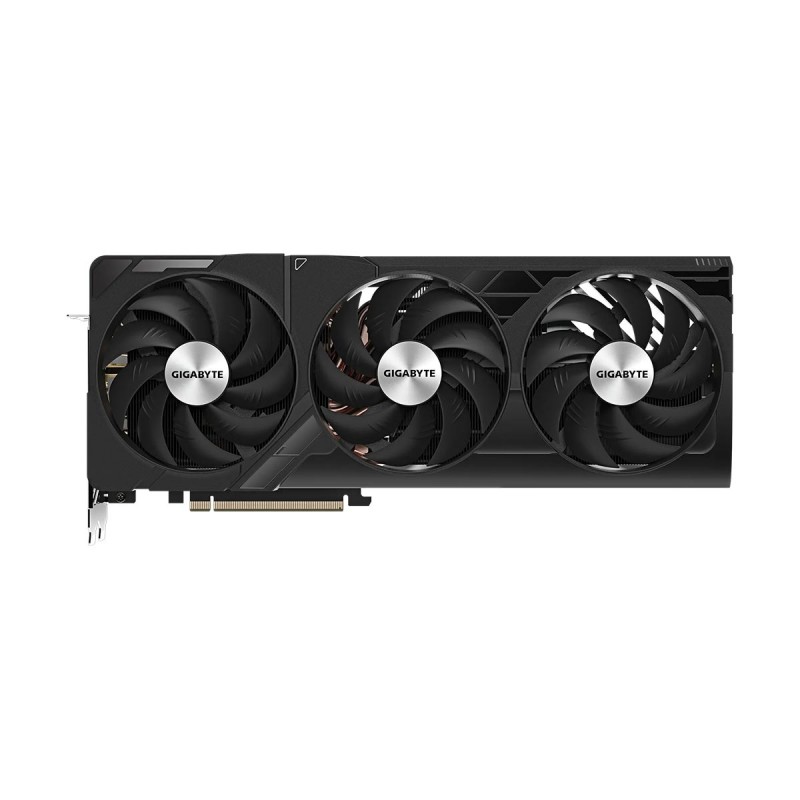

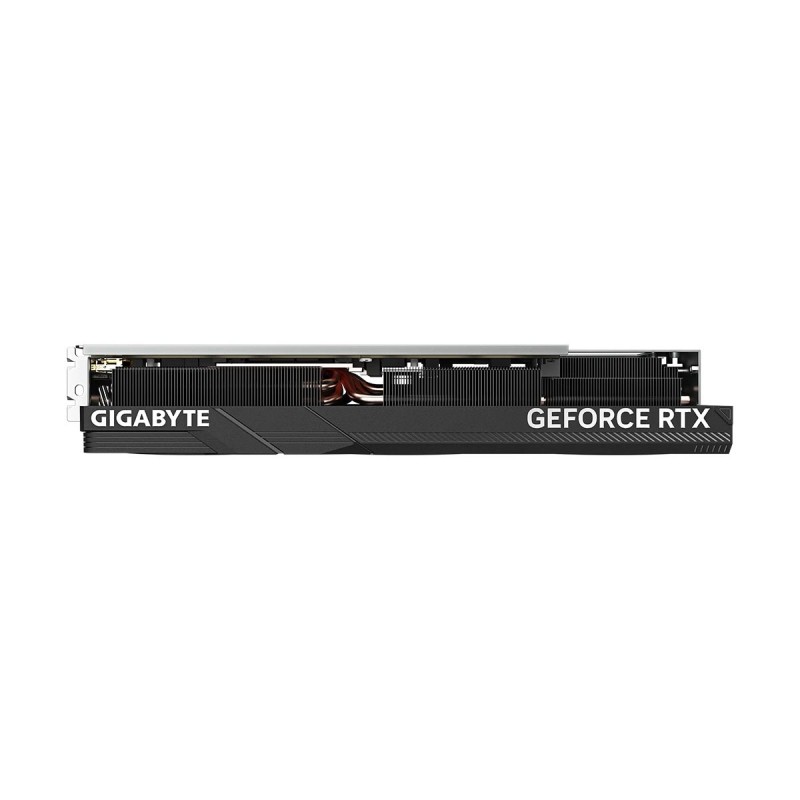

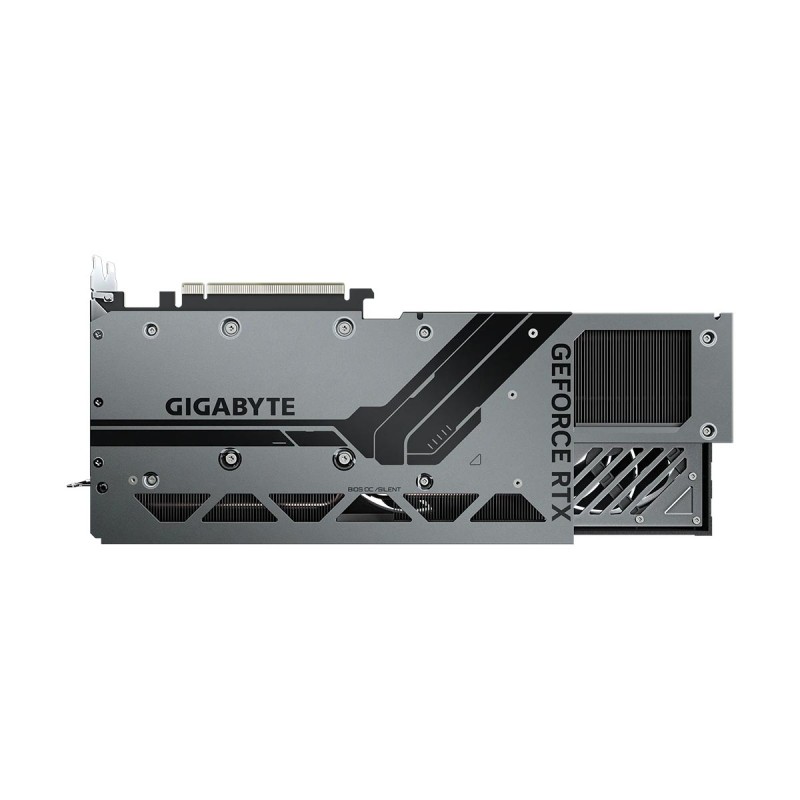

The WINDFORCE cooling system features three 100mm unique blade fans, alternate spinning, 9 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation. Extended heatsink allows air to pass through, providing better heat dissipation. Engineered with oversized heatsink to ensure long-lasting, high-performance graphics card operation while maintaining low GPU temperatures. The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink. The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience. The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection. The new anti-sag bracket is tailored to each graphics card. It provides the optimized reinforcement and better overall visual appearance.

Graphics ProcessingGeForce RTX 4070 Ti SUPER
Core Clock2655 MHz (Reference Card: 2610 MHz)
CUDA Cores8448
Ray Tracing Cores66
Tensor Cores264
Streaming Multi-Processors66
Memory Clock21000 MHz
Memory Size16 GB
Memory TypeGDDR6X
Memory Bus256 bit
Memory Bandwidth (GB/sec)672 GB/s
Card BusPCI-E 4.0 x16
Digital max resolution7680 x 4320
Multi-view4
Card size331mm x 136mm x 56mm
PCB FormATX
DirectX12 Ultimate
OpenGL4.6
Recommended PSU750w
Power Connectors1 x 16-pin

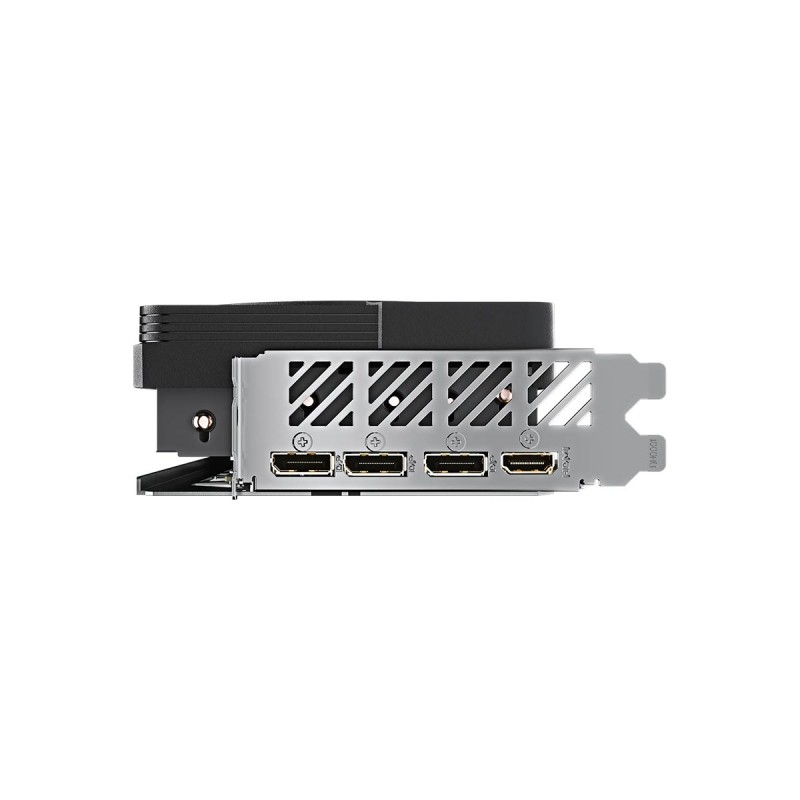

Output3 x DisplayPort 1.4a
1 x HDMI 2.1a
Multi-GPU SupportNo
AccessoriesQuick guide
Anti-sag bracket
Anti-sag bracket installation guide
One 16 pin to two 8-pin power adaptor

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

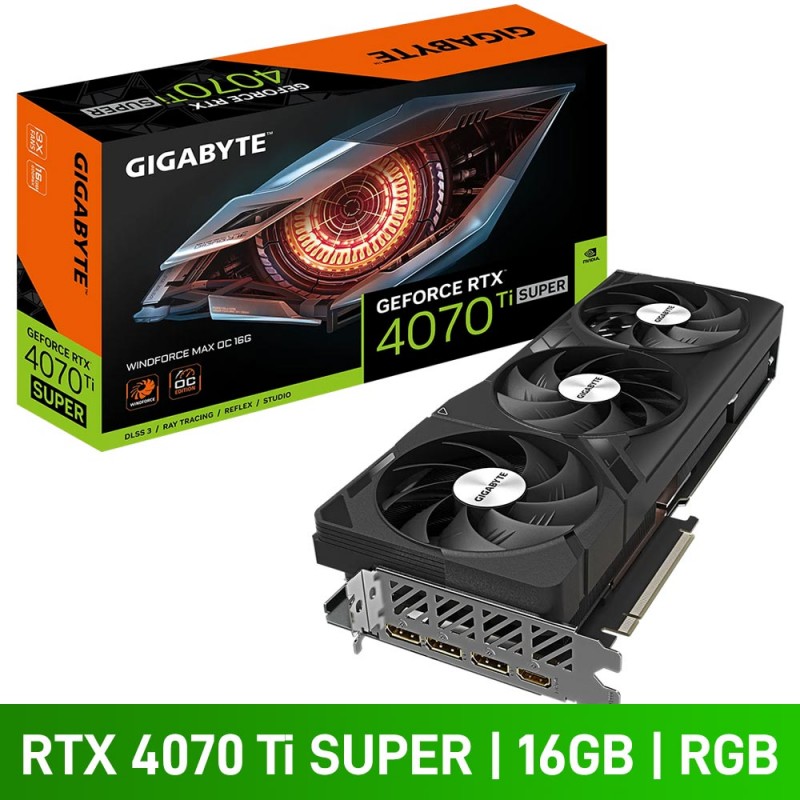

Gigabyte GeForce RTX 4070 Ti SUPER WINDFORCE MAX OC 16G Graphics Card, 16GB

- NVIDIA GeForce RTX 4070 Ti SUPER Graphics Processor
- Base Clock: 2340 MHz
- Boost Clock: Up To 2655 MHz
- CUDA Cores: 8448
- 3rd Gen Ray Tracing Cores: 66
- 4th Gen Tensor Cores: 264
- Memory: 16GB GDDR6X
- Effective Memory Clock: 21,000 MHz
- Real Time Ray Tracing
- DLSS 3.5 AI Rendering Technology
- 3 x DisplayPort 1.4, 1 x HDMI 2.1a
- PCIe 5.0 12VHPWR Power Connector
- Anti-Sag Bracket
- 3 Year Warranty

  • Product Code: GV-N407TSWF3MAX OC-16GD
