PLEASE TAKE NOTE:The DeepCool PN650M is a new power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standard. With a dedicated 12V-2x6, 5 EPS/PCIe ports, the PN650M provides stable power for a wide range of modern high-power components. With the ability to provide twice the total system power for 0.1 ms, random power spikes will never be an issue. The PN650M will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future. 80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics. Through the use of a main Japanese electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN650M can keep the hold-up time to ≥ 16 ms under a high load of 80%. Equipped with a high-grade 105C-resistant 16AWG copper-core embossed 12V-2x6 cable, the PN650M provides up to 450W for modern GPUs. The PN650M has been outfitted with sleeved cables right out of the box! A welcomed upgrade to add to the premium asesthic and feel of the PSU. The PN650M comes equipped with a dynamic 120mm FDB fan that will adjust its speed based on the cooling needs of the PSU. The PN650M comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.
| Model | R-PN650M-FC0B-EU |
| Capacity | 650w |
| 80 PLUS Rating | Gold |
| Modular | Fully Modular |
| Lighting | No |
| Fan Size | 120mm |
| ATX 24-pin Connectors | 1 x 24-pin |
| EPS Connectors | 2 x 4+4-pin |
| PCI-Express Connectors | 3 x 6+2-pin 1 x 450w PCI-e 5.1 12V-2x6 |
| SATA Connectors | 8 |
| PATA Connectors | 2 |
| Floppy Connectors | 0 |
| Dimensions | 150mm x 86mm x 140mm |
| Warranty | 10 Years |
| Manufacturer | |
| Manufacturer's Website | Link * |
| Product Website | Link * |
| Warranty Information | |
| Warranty Duration | 10 Years |

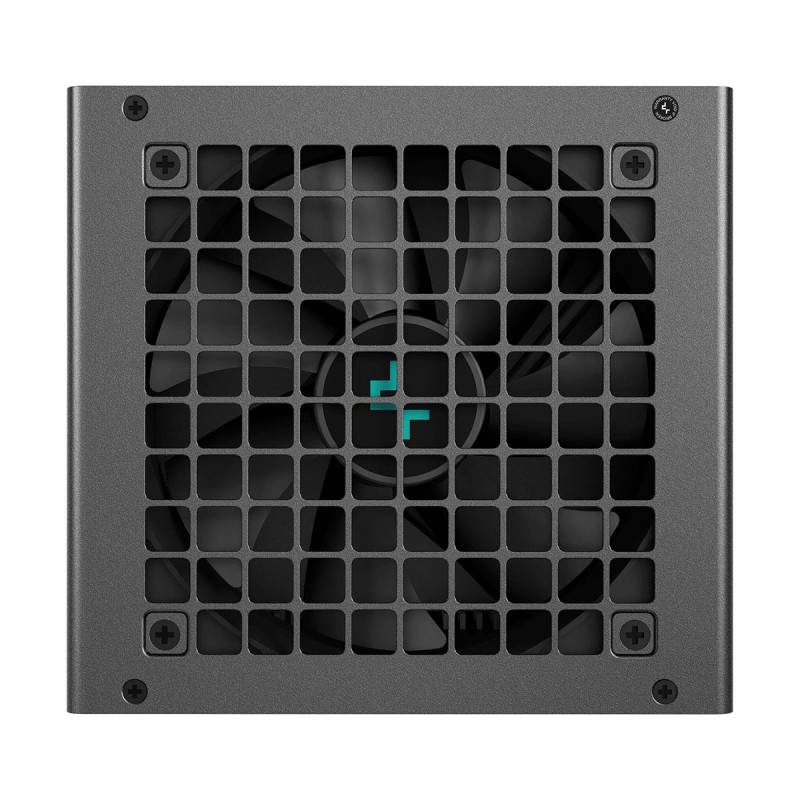

DEEPCOOL PN650M 80 PLUS Gold Fully Modular PCIe 5.1 12VHPWR 12V-2x6 ATX 3.1 PSU, 650w
- ATX 3.1 Desktop PSU
- Power Capacity: 650w
- Efficiency Rating: 80 Plus Gold
- Cybernetics 230V Gold Efficiency Rating
- Fully Modular Design
- 2 x 4+4 Pin EPS Connector
- 1 x 450w 16-pin PCIe 5.1 12V-2x6 Connector
- 3 x PCIe 6+2 Pin Connector
- 8 x SATA Connectors
- 120mm Fan with Dynamic Speed
- 10 Year Warranty
- Product Code: R-PN650M-FC0B-EU
