• Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
• L3 cache varies with CPU


• Intel B365 Express Chipset


• 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory

• Dual channel memory architecture
• Support for DDR4 2666/2400/2133 MHz memory modules
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
  * To support 2666 MHz or XMP memory, you must install a 9th and 8th Generation Intel Core i9/i7/i5 processor.

Integrated Graphics Processor-Intel HD Graphics support:

• 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
• 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
  * The DVI-D port does not support D-Sub connection by adapter.
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
  * Support for HDMI 1.4 version and HDCP 2.2.

Support for up to 3 displays at the same time

Maximum shared memory of 1 GB

Actual support may vary by CPU

• Realtek ALC887 codec
• High Definition Audio

• 2/4/5.1/7.1-channel
  * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
• Support for S/PDIF Out

• 1 x Realtek Gbe LAN chip (10/100/1000 Mbit)


• None

• 1 x PCI Express x16 slot, running at x16
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• 1 x PCI Express x4 slot
• 1 x PCI Express x1 slot
  (All of the PCI Express slots conform to PCI Express 3.0 standard.)

• None

Chipset:

• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
• 6 x SATA 6Gb/s connectors
• Support for RAID 0, RAID 1, RAID 5, and RAID 10
  * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Intel Optane Memory Ready

Chipset:

• 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

• 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 1 x RGB LED strip header
• 1 x M.2 Socket 3 connector
• 6 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB 3.1 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
• 1 x serial port header
• 1 x parallel port header
• 1 x Clear CMOS jumper

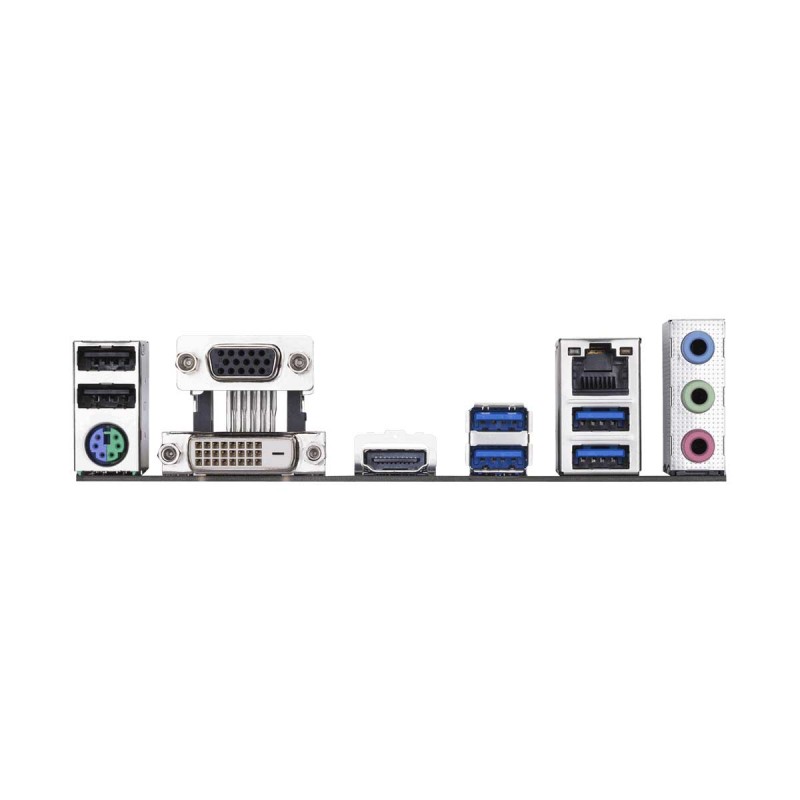

• 1 x PS/2 keyboard/mouse port

• 1 x D-Sub port
• 1 x DVI-D port
• 1 x HDMI port
• 4 x USB 3.1 Gen 1 ports
• 2 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks

• iTE I/O Controller Chip

• Voltage detection
• Temperature detection
• Fan speed detection
• Overheating warning
• Fan fail warning
• Fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.


• 2 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• Support for DualBIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  3D OSD
  @BIOS
  AutoGreen
  Cloud Station
  EasyTune
  Easy RAID
  Fast Boot
  Game Boost
  ON/OFF Charge
  Platform Power Management
  RGB Fusion
  Smart Backup
  Smart Keyboard
  Smart TimeLock
  Smart HUD
  Smart Survey
  System Information Viewer
  USB Blocker

• Support for Q-Flash
• Support for Xpress Install


• Norton Internet Security (OEM version)

• Support for Windows 10 64-bit

• Micro ATX Form Factor, 22.6cm x 20.5cm
