• AM4 Socket: Supports AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors

• AMD B450


• 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory

• Dual channel memory architecture
• Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Integrated Graphics Processor:

• 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
  * The DVI-D port does not support D-Sub connection by adapter.
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.0 version and HDCP 2.2.
  * Actual support may vary by CPU.
• Maximum shared memory of 16 GB

• Realtek ALC1220-VB codec

• High Definition Audio
• 2/4/5.1/7.1-channel

• Support for S/PDIF Out


• Intel GbE LAN chip (10/100/1000 Mbit)

• None

• 1 x PCI Express x16 slot, running at x16 (PCIEX16)

• * Actual support may vary by CPU.
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
• 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  * The PCIEX4 slot shares bandwidth with the PCIEX1_1 and PCIEX1_2 slots. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_1/PCIEX1_2 slot is populated. The PCIEX4 slot operates at up to x4 mode when both of the PCIEX1_1 and PCIEX1_2 slots are empty.
• 1 x PCI Express x16 slot, running at x1 (PCIEX1_2)
• 1 x PCI Express x1 slot (PCIEX1_1)
  (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)

• Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET)
• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET)
• 6 x SATA 6Gb/s connectors
• Support for RAID 0, RAID 1, and RAID 10
  * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Chipset:

• 1 x USB Type-C port on the back panel, with USB 3.1 Gen 2 support

• 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
• 2 x USB 3.1 Gen 1 ports available through the internal USB header
• 4 x USB 2.0/1.1 ports available through the internal USB headers

CPU:

• 4 x USB 3.1 Gen 1 ports on the back panel

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector
• 2 x M.2 Socket 3 connectors
• 6 x SATA 6Gb/s connectors
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 2 x system fan headers
• 1 x system fan/water cooling pump header
• 1 x CPU cooler LED strip/RGB LED strip header
• 2 x digital LED strip headers
• 2 x digital LED strip power select jumpers
• 1 x RGB (RGBW) LED strip header
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB 3.1 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
• 1 x Clear CMOS jumper

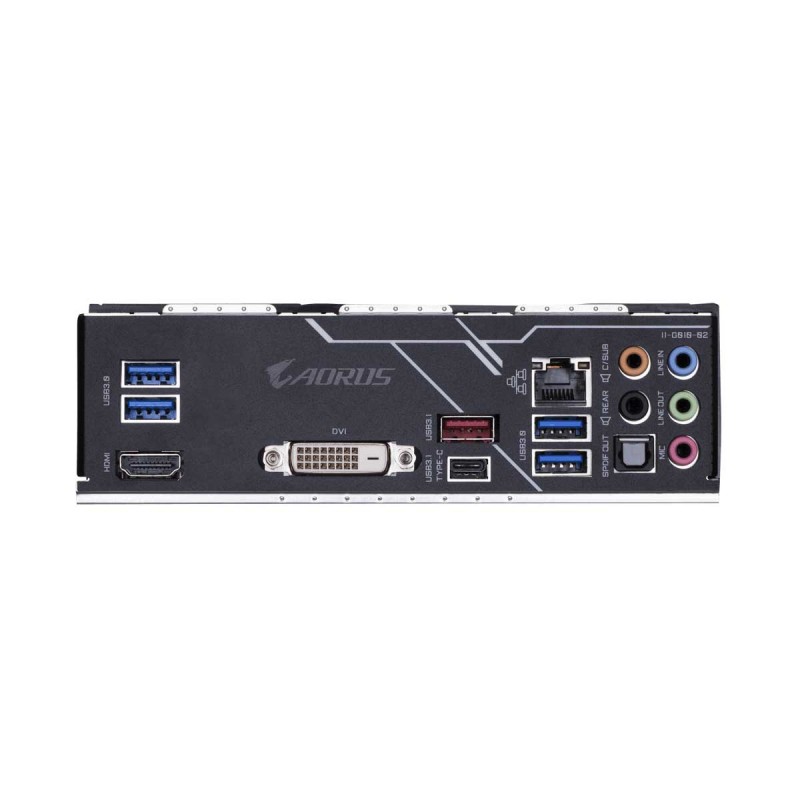

• 1 x HDMI port

• 1 x DVI-D port
• 4 x USB 3.1 Gen 1 ports
• 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
• 1 x USB 3.1 Gen 2 Type-A port (red)
• 1 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 5 x audio jacks

• iTE I/O Controller Chip

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Overheating warning
• Fan fail warning
• Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.


• 2 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• Support for DualBIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  3D OSD
  AutoGreen
  Cloud Station
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  RGB Fusion
  Smart Backup
  Smart Keyboard
  Smart TimeLock
  Smart HUD
  Smart Survey
  System Information Viewer
  USB Blocker
  V-Tuner
• Support for Q-Flash
• Support for Xpress Install


• Norton Internet Security (OEM version)
• cForSpeed

• Support for Windows 10 64-bit
• Support for Windows 7 64-bit
  * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
  * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.

• ATX Form Factor, 30.5cm x 24.4cm
