B650M GAMING WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all. M.2 Shield Frozr keeps M.2 SSDs safe while preventing throttling, making them run faster. Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly. Run into trouble when updating your BIOS or somehow corrupted it? Don't worry, MSI motherboards offer multiple options to successfully boot your system again. The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer. Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again. MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation. MSI B650M GAMING WIFI series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies. A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, B650M GAMING WIFI is ready to deliver the world class memory performance. Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

CPU
  • Socket AM5 supports AMD Ryzen 8000 / 7000 Series Desktop Processors
Chipset
  • AMD B650
Memory
  • 2 x DDR5, Maximum Memory Capacity 128GB
  • Memory Support DDR5 7800+(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800(JEDEC) MHz
    • 1DPC 1R Max speed up to 7800+ MHz
    • 1DPC 2R Max speed up to 6400+ MHz
  • Support Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports AMD EXPO
Onboard Graphics

Integrated Graphics Processor:

  • 1 x HDMI
    • Support HDMI 2.1 FRL, maximum resolution of 4K 60Hz
  • 1 x DisplayPort
    • Support DP 1.4, maximum resolution of 4K 60Hz

Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Audio

Realtek ALC897 Codec

  • 7.1-Channel High Performance Audio
LAN

Realtek RTL8125BG 2.5Gbps LAN

  • 2.5Gbps / 1Gbps / 100Mbps / 10Mbps
Wireless Communication Module

AMD Wi-Fi 6E

  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX
  • Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth 5.3
Expansion Slots

CPU:

  • 1 x PCI-E x16 slot
    • Supports x16 (For Ryzen 7000 Series processors)
    • Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors)
    • Supports x4 (For Ryzen 5 8500G processor)

Chipset:

  • 1 x PCI-E x1 slot
Storage Interface

CPU:

  • 2 x M.2 slot
    • M.2_1 supports up to PCIe 4.0 x4 , supports 2280 devices
    • M.2_2 supports up to PCIe 4.0 x4 , supports 2280 devices
      • M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed

Chipset:

  • 4 x SATA 6G port

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

USB

Rear:

2 x USB 2.0
3 x USB 5Gbps Type A
1 x USB 5Gbps Type C

Front:

4 x USB 2.0
4 x USB 5Gbps Type A

Internal I/O Connectors
  • 1 x Power Connector(ATX_PWR)
  • 1 x Power Connector(CPU_PWR)
  • 1 x CPU Fan
  • 3 x System Fan
  • 2 x Front Panel (JFP)
  • 1 x Chassis Intrusion (JCI)
  • 1 x Front Audio (JAUD)
  • 2 x Addressable V2 RGB LED connector (JARGB_V2)
  • 1 x RGB LED connector(JRGB)
  • 1 x TPM pin header(Support TPM 2.0)
  • 4 x USB 2.0 ports
  • 4 x USB 5Gbps Type A ports
Back Panel Connectors
  • 1 x DisplayPort
  • 1 x HDMI
  • 3 x USB 3.2 Gen 1 5Gbps (Type-A)
  • 1 x 2.5G LAN
  • 2 x Wi-Fi / Bluetooth
  • 3 x Audio connectors
  • 1 x Flash BIOS Button
  • 1 x USB 3.2 Gen 1 5Gbps (Type-C)
  • 2 x USB 2.0
I/O Controller
  • Not Specified
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Fan fail warning
  • Fan speed control
BIOS
  • Not Specified
Unique Features
  • 4 x EZ Debug LED
Bundled Software
  • Drivers
Operating System
  • Support for Windows 10 64-bit / Windows 11 64-bit
Form Factor
  • Micro ATX Form Factor, 24.4cm x 22.6cm

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

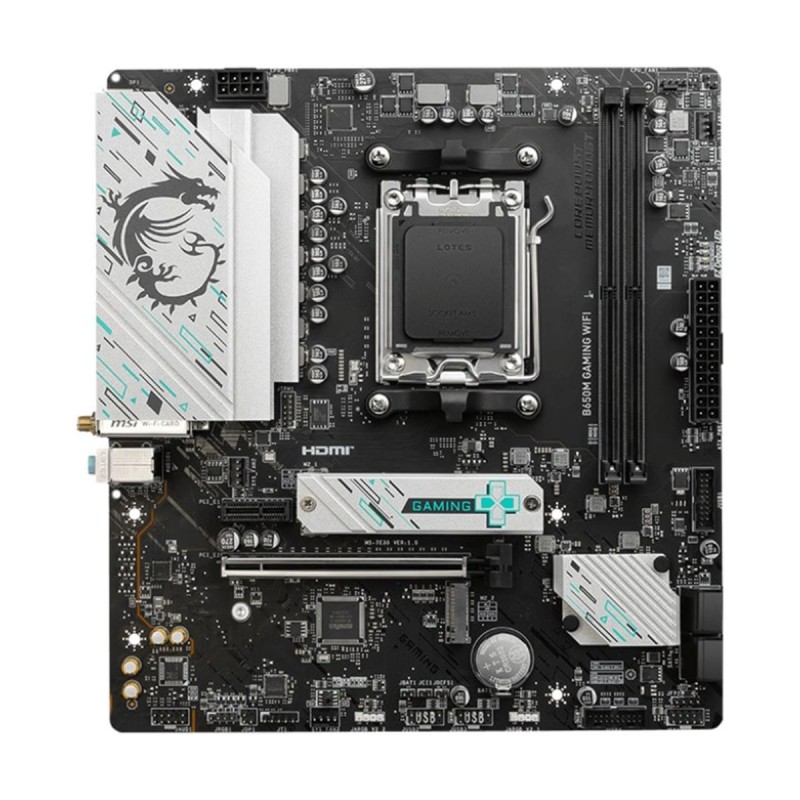

MSI B650M GAMING WIFI, AMD B650 Chipset, Socket AM5, Micro ATX Desktop Motherboard

- Socket AM5, AMD B650 Chipset
- Supports AMD Ryzen 7000 and 8000 Series Processors
- 2 x DDR5 DIMM Slots, Up To 128GB DDR5-7800 (OC)
- 1 x PCIe 4.0 x16 Slot
- 2 x M.2 PCIe 4.0 NVMe Slots
- 4 x SATA Ports with RAID 0/1/5/10
- 2.5 Gbe LAN & Wi-Fi 6E
- 1 x Rear USB Type-C 5Gb/s
- 3 x Rear USB Type-A 5Gb/s
- 2 x Rear USB 2.0/1.1
- 3 x Rear Audio Jacks
- Form Factor: Micro ATX
- 3 Year Warranty

  • Product Code: 911-7E30-001
  • Availability: In Stock with Supplier leadtimeTooltip Lead Times:
    • In Stock with Progenix: Ready for collection/dispatch once payment clears. The cut-off for same-day dispatch is 12:00pm on business days.
    • In Stock with Supplier: 1-3 business days until dispatched or ready for collection
    • Out Of Stock: Contact us to see if this item will be restocked.

  • R2,686



Price displayed is already subject to a 4% discount for EFT payments

0 reviews / Write a review
