PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. Ran into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get it up and running again. MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference. Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard. MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.

CPU
  • Supports 12th / 13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
  • Processor socket LGA1700
Chipset
  • Intel H610 Express Chipset
Memory
  • 2 x DDR4 memory slots, support up to 64GB
  • Supports 1R 2133 / 2666 / 3200 MHz (by JEDEC & POR)
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
Onboard Graphics

  • 1 x HDMI 1.4 with HDR port, supports a maximum resolution of 4K 30Hz
  • 1 x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

Available only on processors featuring integrated graphics.

Graphics specifications may vary depending on the CPU installed.

Audio

Realtek ALC892/897 Codec

  • 7.1-Channel High Definition Audio
LAN
  • 1 x Realtek RTL8111H 1Gbps LAN controller
Wireless Communication Module
  • None
Expansion Slots

1 x PCIe x16 slot (From CPU)

  • Supports up to PCIe 4.0 x16

1 x PCIe x1 slot

  • Supports PCIe 3.0 x1
Multi-Graphics Technology
  • N/A
Storage Interface

4 x SATA 6Gb/s ports

1 x M.2 slot (Key M, from CPU)

  • Supports up to PCIe 3.0 x4
  • Supports 2242/ 2260/ 2280 storage devices
USB

Intel H610 Chipset

  • 4 x USB 2.0
  • 2 x USB 3.2 Gen 1
  • 1 x USB 3.2 Gen 1 5Gbps internal connector
    * Supports additional 2 USB 3.2 Gen 1 5Gbps ports

Hub-GL850G

  • 2 x USB 2.0 Type-A internal connectors
    * Supports additional 4 USB 2.0 ports
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin +12V power connector
  • 1 x 4-pin CPU fan connector
  • 2 x 4-pin system fan connectors
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x Chassis Intrusion connector
  • 1 x TPM module connector
  • 1 x Serial port connector
  • 1 x Clear CMOS jumper
  • 1 x 4-pin RGB LED connector
Back Panel Connectors
  • 1 x HDMI
  • 1 x VGA
  • 1 x Keyboard / Mouse
  • 2 x USB 3.2 Gen 1 5Gbps Type-A
  • 1 x LAN port
  • 3 x Audio connector
  • 4 x USB 2.0
I/O Controller
  • Not Specified
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
    * Whether the fan speed control function is supported will depend on the fan you install.
BIOS
  • Not Specified
Unique Features
  • 4x EZ Debug LED
Bundled Software
  • Driver Disc
Operating System
  • Support for Windows 10/11 64-bit
Form Factor
  • Micro ATX Form Factor, 23.6cm x 20.0cm

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

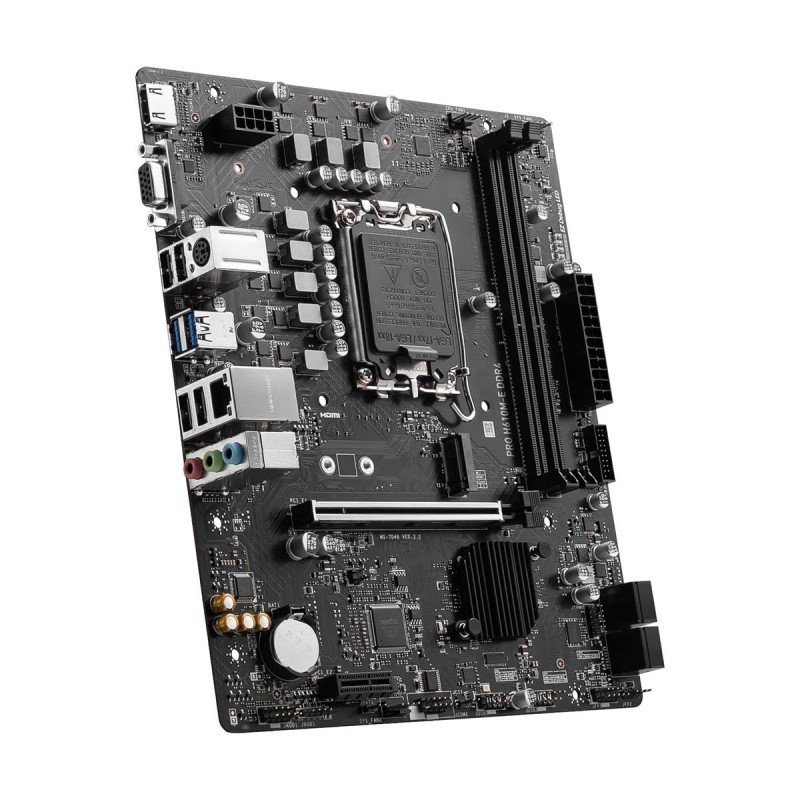

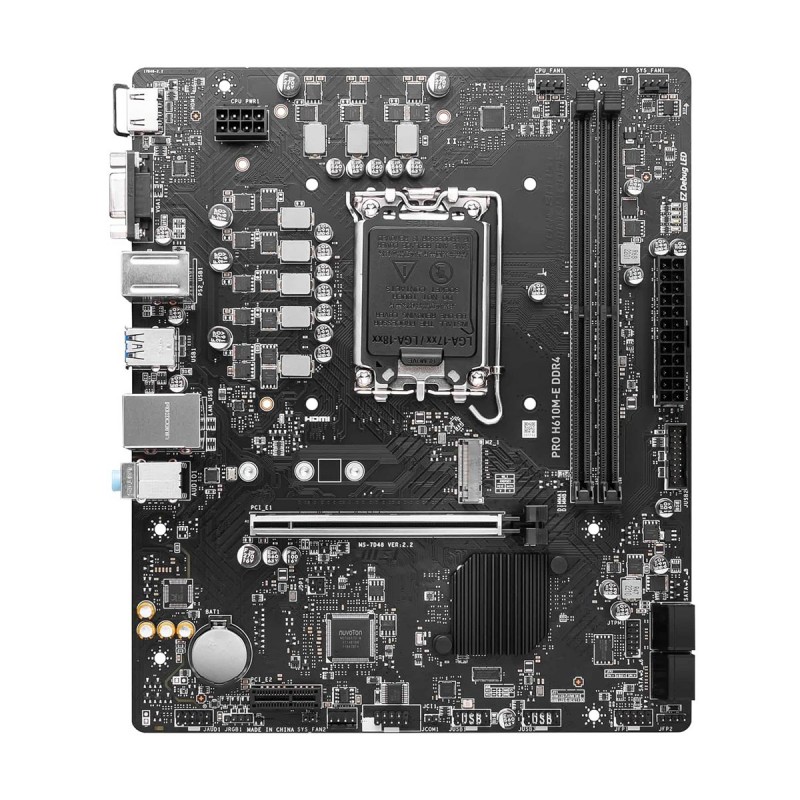

MSI PRO H610M-E DDR4, Intel H610 Chipset, LGA1700, DDR4, Micro ATX Desktop Motherboard

  • Product Code: PRO H610M-E DDR4
  • Availability: Out Of Stock leadtimeTooltip Lead Times:
    • In Stock with Progenix: Ready for collection/dispatch once payment clears
    • In Stock: 1-3 working days until dispatched or ready for collection
    • Out Of Stock: Contact us to see if this item will be restocked.

  • R1,796



Price displayed is already subject to a 4% discount for EFT payments

0 reviews / Write a review
