Reverse Outlet Design:
The fan blades of M12R series rotate counterclockwise, and the 7 fan blades can provide 1500RPM, with the face of the fan blades in the direction of the air outlet, which can be used as the intake fan of the chassis.

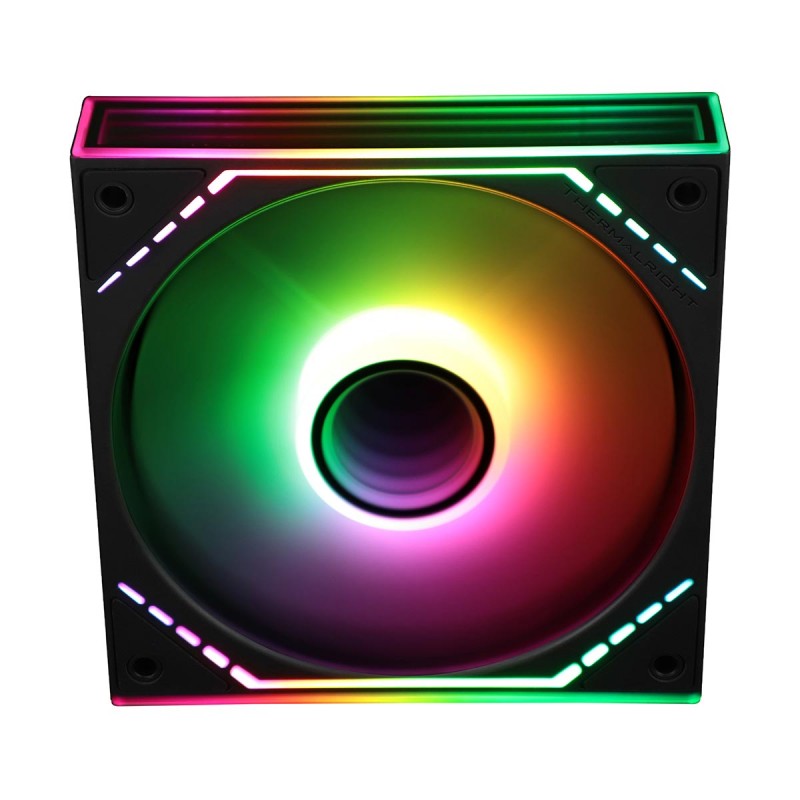

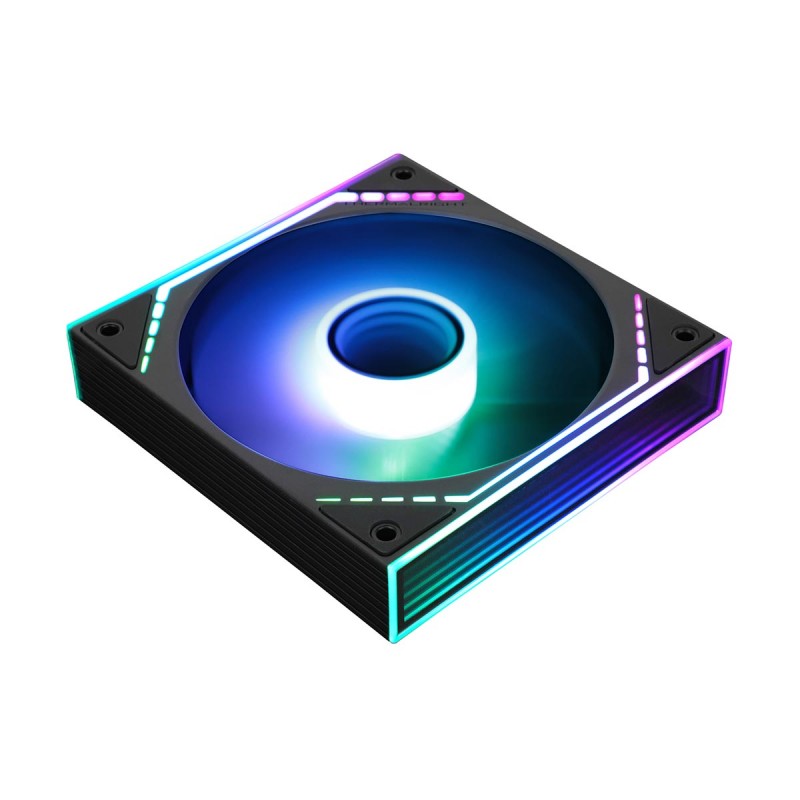

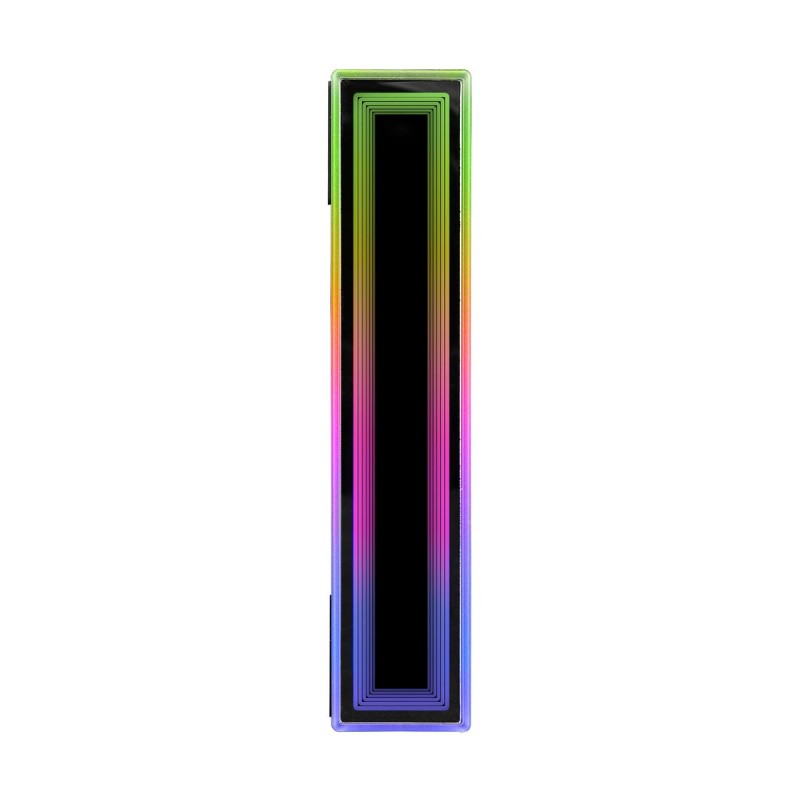

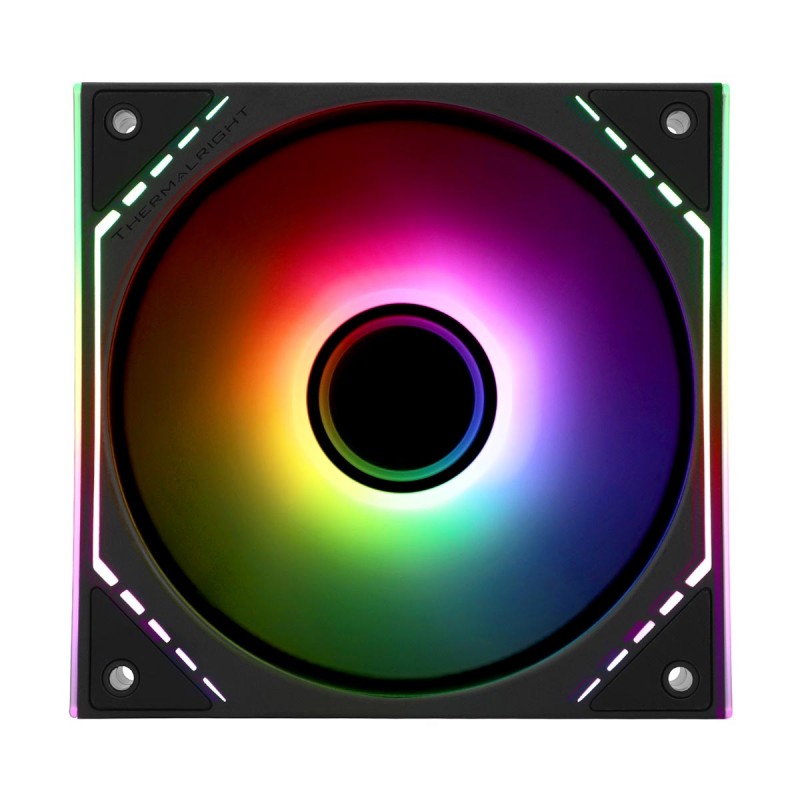

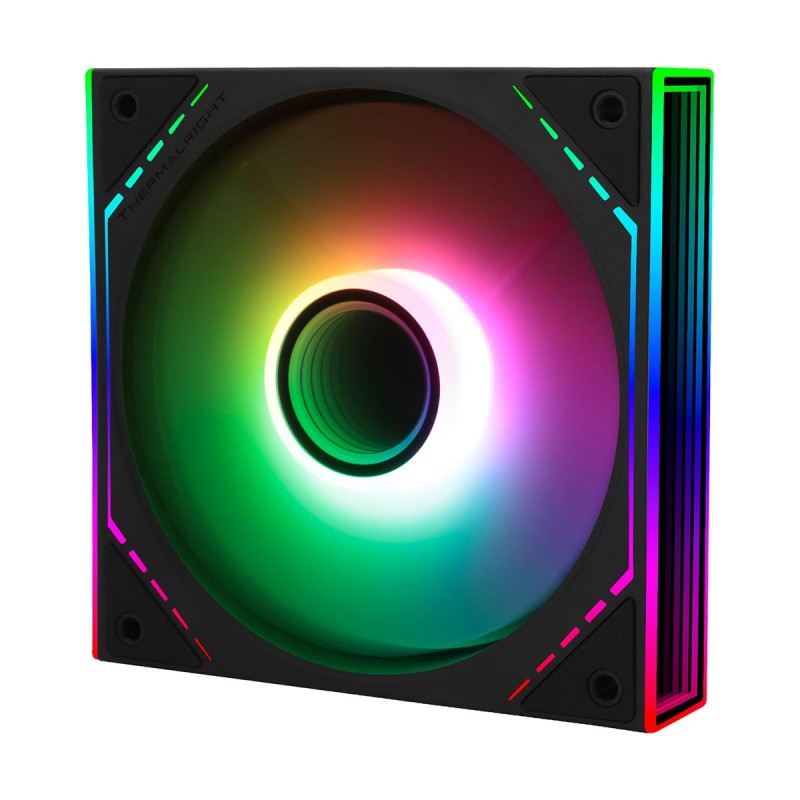

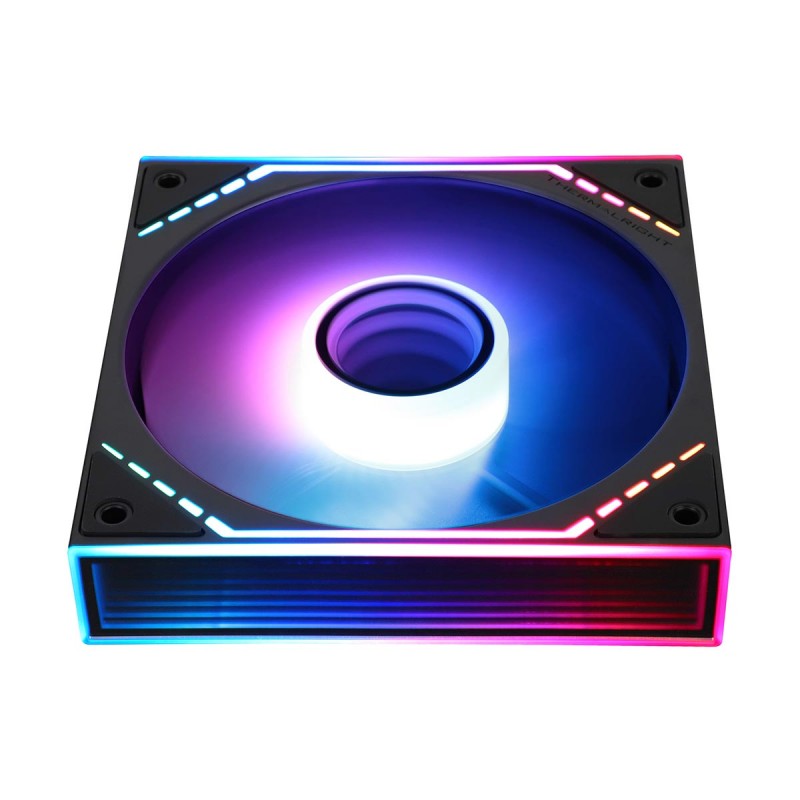

Unique ARGB Mirror Lighting Effect:
The well-designed ARGB infinite frame structure is distributed on the side of the fan, and the ARGB lines are distributed around the front of the case fan, together with the infinite frame ARGB aperture, it can achieve the combination of positive & measured surface ARGB lighting effect, and multiple phantom colourful lighting effects can be achieved under the action of the airflow.
Detail Optimization:
The case fan is made of industrial-grade PBT+PC material, with a cable up to 55CM long, and supports PWM/ARGB series control of the computer fan.
High Performance Cooling Fan:

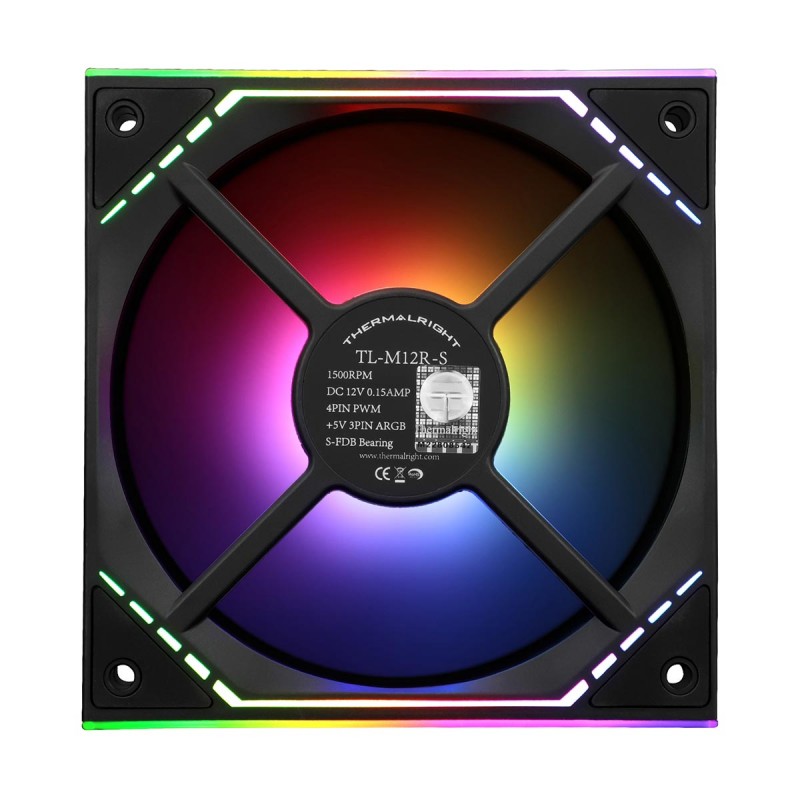

Automatic speed control of the motherboard through the 4PIN PWM fan cable interface, which can determine the speed according to the temperature of the motherboard. The cpu fan is equipped with a 4-pin power connector and a cable with a serial ARGB lighting connector, which plugs directly into the motherboard.
| Model | TL-M12R-S |
| Size | 120mm |
| Quantity | 1 |
| Lighting Colour | ARGB |
| Fan Speed | 1500 RPM ±10% |
| Airflow | 34.43 CFM |
| Pressure | 1.31 mm-H2O |
| Noise | 23.2 dBA |
| Power Connector | 4-Pin PWM |
| Warranty | 3 Years |
| Manufacturer | |
| Manufacturer's Website | Link * |
| Product Website | Link * |
| Warranty Information | |
| Warranty Duration | 3 Years |
Thermalright TL-M12-S ARGB Infinity Mirror Reverse Flow Fan, 120mm — Black
- 120mm Daisy-Chainable Reverse Flow ARGB Fan
- Center & Side Infinity Mirror Design
- Single Fan Doesn't Require Controller
- Compatible with Aura, Mystic Light, Fusion, & Chroma
- Colour: Black
- Fluid Dynamic Bearings
- RPM Range: Up to 1,500 RPM ±10%
- Air Flow: Up to 34.43 CFM
- Static Pressure: Up to 1.31 mm-H2O
- Noise: Up to 23.2 dBA
- 3 Year Warranty
- Product Code: TL-M12R-S
