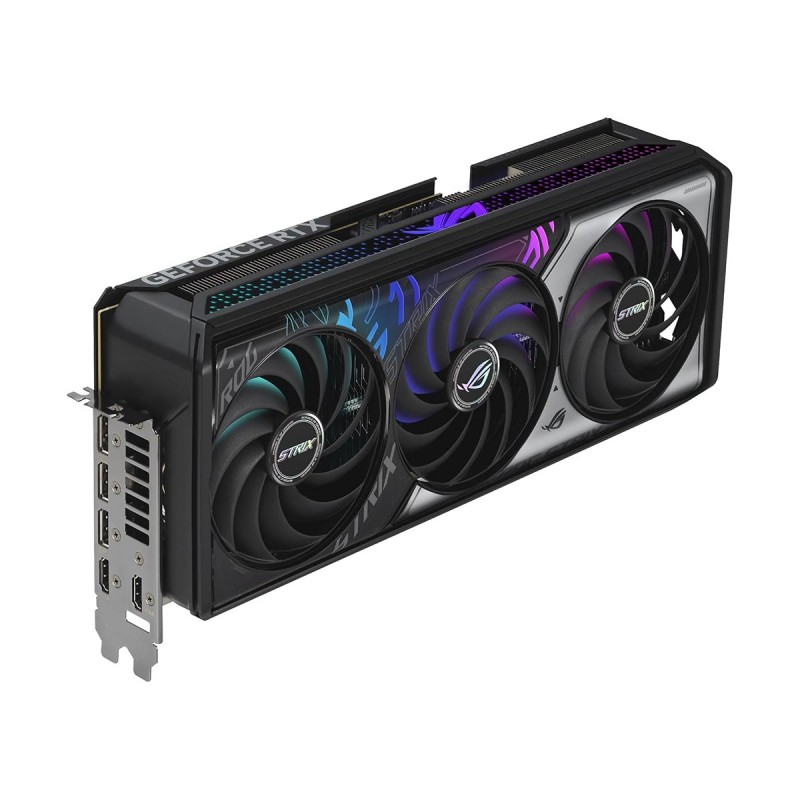

The premium performance ROG Strix GeForce RTX 5070, featuring advanced cooling system with axial-tech fan, phase-change GPU thermal pad and MaxContact design, lowering GPU temperature to reach higher performance. Aura sync provides endless possibilities for personalization with color or functional effects.

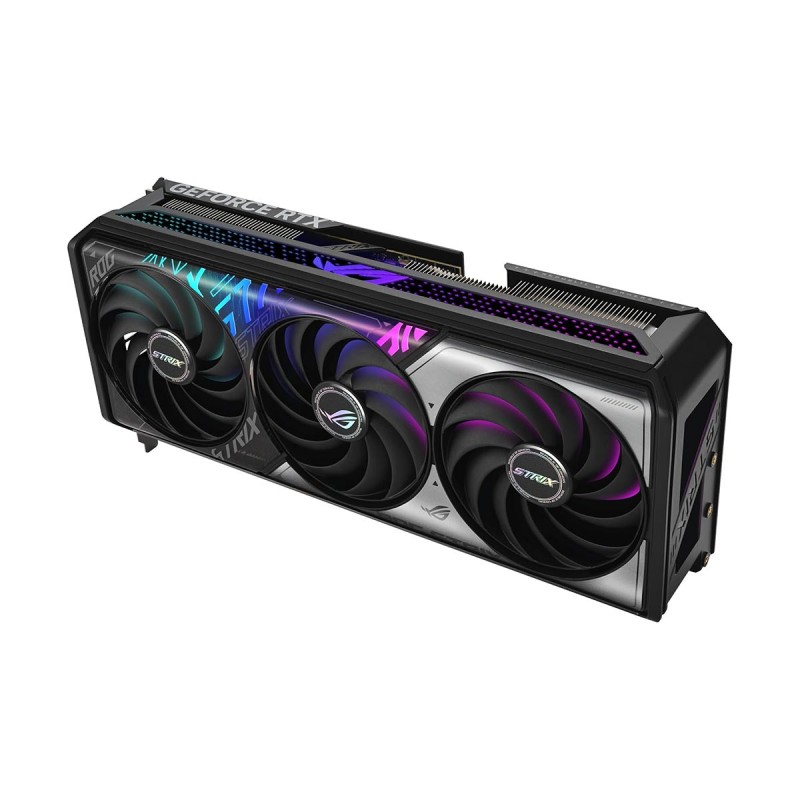

Reverse Rotation and 0dB Technology
The two side fans spin counterclockwise to reduce turbulence and improve airflow through the heatsink. All three fans stop when GPU temperatures are below 50°C, ensuring quiet operation during light tasks or less-demanding games. They resume operation above 55°C, following a speed curve that optimizes performance and noise levels.

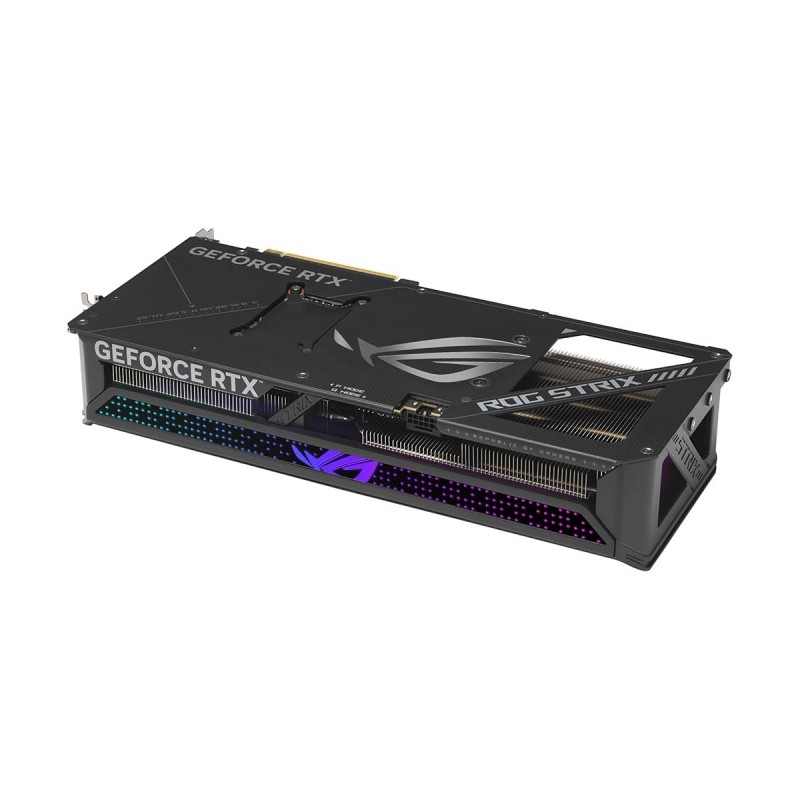

Vented Backplate
Large backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling. A shorter PCB with optimized component and trace layouts reduces power loss and allows heat to escape through a large backplate vent.
MaxContact Design
MaxContact is an ASUS-exclusive manufacturing technique that effectively increases the surface area of the GPU heat spreader by 5% for improved thermal efficiency.
Phase-Change GPU Thermal Pad
By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.
Premium Power Delivery
Digital power control, high-current power stages, and 15K capacitors provide ample reserves to reliably enhance performance.
ASUS GPU Guard & Bracket
To handle larger graphics processors, ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.
Protective PCB Coating
A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.
Auto−Extreme Technology
An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass, ASUS Auto-Extreme technology reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.
Protective Backplate
The PCB is reinforced by a backplate that adds structural rigidity, helping to prevent flex and to protect components and trace pathways from damage.
Stainless Steel Bracket
The mounting bracket features grade 304 stainless steel, chosen for its strength and high resistance to corrosion.
| Graphics Processing | GeForce RTX 5070 |
| Core Clock | OC Mode: 2685 MHz (Reference Card: 2510 MHz) Default Mode: 2655 MHz (Reference Card: 2510 MHz) |
| CUDA Cores | 6144 |
| Ray Tracing Cores | 48 |
| Tensor Cores | 192 |
| Streaming Multi-Processors | 48 |
| Memory Clock | 28000 MHz |
| Memory Size | 12 GB |
| Memory Type | GDDR7 |
| Memory Bus | 192 bit |
| Memory Bandwidth (GB/sec) | 672 GB/s |
| Card Bus | PCI-E 5.0 x16 |
| Digital max resolution | 7680 x 4320 |
| Multi-view | 4 |
| Card size | 332 x 147 x 64 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 750w |
| Power Connectors | 1 x 16-pin |
| Output | 3 x DisplayPort 2.1a 1 x HDMI 2.1b |
| Multi-GPU Support | No |
| Accessories | Speedsetup Manual ROG Graphics Card Holder ROG Velcro Hook & Loop ROG Magnet ROG PCB Ruler Thank You Card Adapter Cable (1 to 2) |
| Manufacturer | |
| Manufacturer's Website | Link * |
| Product Website | Link * |
| Warranty Information | |
| Warranty Duration | 3 Years |
ASUS ROG STRIX GeForce RTX 5070 OC EDITION 12GB GDDR7 Graphics Card, 12GB
- NVIDIA GeForce RTX 5070 Graphics Processor
- Base Clock: 2160 MHz
- Boost Clock: Up to 2682 MHz
- CUDA Cores: 6,144 Cores
- 4th Gen Ray Tracing Cores: 48 Ray Tracing Cores
- 5th Gen Tensor Cores: 192 Tensor Cores
- Memory: 12GB GDDR7
- Effective Memory Clock: 28,000 MHz
- NVIDIA RTX Real Time Ray Tracing
- DLSS 4 AI Rendering Technology
- Vented Metal Backplate
- Phase-Change GPU Thermal Pad
- 3 x DisplayPort 2.1a, 2 x HDMI 2.1b, Maximum 4 Displays
- PCIe 5.0 12VHPWR Power Connector
- 3 Year Warranty
- Product Code: 90YV0M80-M0NB00
