Images are for reference purposes only and product appearances/colours may vary.

PRO B850M-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen 9000 series processors. The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

CPU	AMD Socket AM5 Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
Chipset	AMD B850
Memory	4 x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only
Onboard Graphics	Integrated Graphics Processor with AMD Radeon Graphics 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Audio	Realtek ALC897 7.1-Channel High Definition Audio
LAN	8126VB 5G LAN 5Gbps / 2.5 Gbps/1 Gbps/100 Mbps
Wireless Communication Module	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4
Expansion Slots	4 x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
Storage Interface	3 x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices Supports up to PCIe 4.0 x4 Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors) M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices 4 x SATA 6G Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 5 for M.2 NVMe storage devices
USB	Rear: 4 x USB 2.0 2 x USB 5Gbps Type A 1 x USB 10Gbps Type A 1 x USB 10Gbps Type C Front: 4 x USB 2.0 4 x USB 5Gbps Type A 1 x USB 10Gbps Type C
Internal I/O Connectors	1 x Power Connector(ATX_PWR) 1 x Power Connector(CPU_PWR) 1 x Power Connector(PCIE_PWR 8pin) 1 x CPU Fan 1 x Combo Fan (Pump_Sys Fan) 3 x System Fan 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x Com Port (JCOM) 1 x Tuning Controller connector(JDASH) 3 x Addressable V2 RGB LED connector (JARGB_V2) 1 x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0) 4 x USB 2.0 ports 4 x USB 5Gbps Type A ports 1 x USB 10Gbps Type C ports

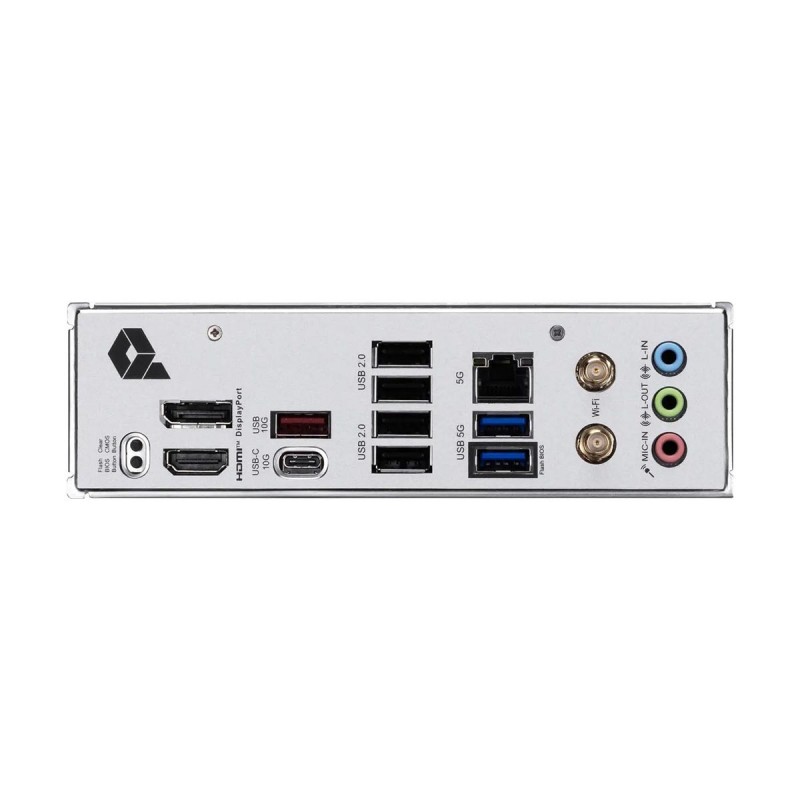

Back Panel Connectors	1 x Clear CMOS Button 1 x DisplayPort 1 x USB 10Gbps Type-A 4 x USB 2.0 1 x 5G LAN 2 x Wi-Fi / Bluetooth 3 x Audio connectors 1 x Flash BIOS Button 1 x HDMI 1 x USB 10Gbps Type-C 2 x USB 5Gbps Type-A
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control
BIOS	Not Specified
Unique Features	4 x EZ Debug LED 1 x EZ Memory Detection LED
Bundled Software	Drivers
Operating System	Support for Windows 11 64-bit
Form Factor	Micro ATX Form Factor 24.4cm x 24.4cm

Manufacturer
Manufacturer's Website	Link *
Product Website	Link *
Warranty Information
Warranty Duration	3 Years

* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating Bad Good

MSI PRO B850M-P WIFI, AMD B850 Chipset, Socket AM5, Micro ATX Desktop Motherboard

- Socket AM5, AMD B850 Chipset
- Supports AMD Ryzen 7000, 8000 & 9000 Series Processors
- 4 x DDR5 DIMM Slots, up to 256GB, DDR5-8200+ (OC)
- Supports CUDIMM Memory Modules (Bypass Mode)
- 1 x PCIe 5.0 x16 Slot
- 3 x PCIe 3.0 x16 Slots (x4 Electrical)
- 1 x M.2 PCIe 5.0 NVMe Slot
- 1 x M.2 PCIe 4.0 NVMe Slot
- 1 x M.2 PCIe 4.0 x2 NVMe Slot
- 4 x SATA Ports, Supports RAID 0 / 1 / 10
- 5Gbps LAN, Wi-Fi 7 & Bluetooth 5.4
- 1 x HDMI 2.1, 1 x DisplayPort 1.4
- 1 x Rear USB Type-C 10Gb/s
- 1 x Rear USB Type-A 10Gb/s, 2 x Rear USB Type-A 5Gb/s
- 3 x Rear Audio Jacks
- EZ PCIe CLIP II Quick-Release Mechanism
- EZ M.2 CLIP II Tool-Less M.2 SSD Installation
- EZ M.2 Shield Frozr II
- EZ Debug LED & EZ Memory Detection LED
- EZ Antenna Quick-Release Wi-Fi Antenna
- 3 x ARGB Gen2 Headers
- Form Factor: Micro ATX
- 3 Year Warranty

Product Code: 7E71-001R
Availability: In Stock with Supplier Lead Times:

In Stock with Progenix: Ready for collection/dispatch once payment clears. The cut-off for same-day dispatch is 12:00pm on business days.

In Stock with Supplier: 1-3 business days until dispatched or ready for collection

Out Of Stock: Contact us to see if this item will be restocked.

R3,290
