Images are for reference purposes only and product appearances/colours may vary.
Experience Primal performance with the Prime Radeon RX 9060 XT graphics card featuring a compact 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme cooling. Large backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling. ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks. The PCB is reinforced by a backplate that adds structural rigidity, helping to prevent flex and to protect components and trace pathways from damage. Do you prioritize low core temps or low noise levels? Performance mode lets the fans spin up to keep the card running cool all the time, and Quiet mode keeps the same power target and top-end settings while offering a less aggressive fan curve for quieter operation at moderate temperatures.
| Graphics Processing | Radeon RX 9060 XT |
| Core Clock | OC Mode: Up to 3330 MHz Boost Clock / Up to 2760 MHz Game Clock Default Mode: Up to 3310 MHz Boost Clock / Up to 2740 MHz Game Clock |
| Stream Processors | 2048 |
| Ray Accelerators | 32 |
| Memory Clock | 20000 MHz |
| Memory Size | 16 GB |
| Memory Type | GDDR6 |
| Memory Bus | 128 bit |
| Memory Bandwidth (GB/sec) | 320 GB/s |
| Card Bus | PCI-E 5.0 x16 |
| Digital max resolution | 7680x4320 |
| Multi-view | 3 |
| Card size | 304 x 126 x 50 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 550W |
| Power Connectors | 1 x PCIe 8-Pin |
| Output | 2 x DisplayPort 2.1a 1 x HDMI 2.1 |
| Multi-GPU Support | No |
| Accessories | Thank You Card Speedsetup Manual |
| Manufacturer | |
| Manufacturer's Website | Link * |
| Product Website | Link * |
| Warranty Information | |
| Warranty Duration | 3 Years |

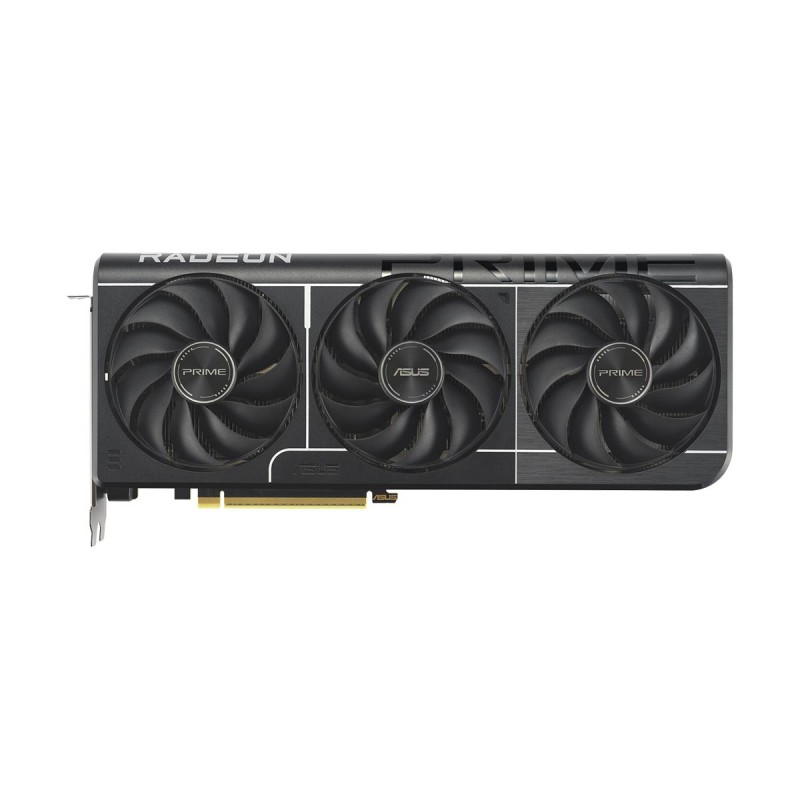

ASUS PRIME Radeon RX 9060 XT OC Edition 16GB GDDR6 Graphics Card, 16GB
- AMD Radeon RX 9060 XT Graphics Processor
- Base Clock: 1700 MHz
- Boost Clock: Up to 3330 MHz
- Stream Processors: 2048
- Ray Accelerators: 32
- AI Accelerators: 64
- Compute Units: 32
- Memory: 16GB GDDR6
- Effective Memory Clock: 20,000 MHz
- Real Time Ray Tracing
- AMD FSR 4 AI Upscaling Technology
- Reinforced Structure with Metal Backplate
- 2 x DisplayPort 2.1a, 1 x HDMI 2.1
- 1 x 8-Pin PCIe Power Connector
- 3 Year Warranty
- Product Code: 90YV0LF1-M0NA00
- Availability:
Out Of Stock
Lead Times:
- In Stock with Progenix: Ready for collection/dispatch once payment clears
- In Stock with Supplier: 1-3 working days until dispatched or ready for collection
- Out Of Stock: Contact us to see if this item will be restocked.
