The AMD RDNA 4 Architecture elevated by buffed cooling and power delivery to effortlessly churn out frames at 4K resolution and beyond, and backed with an arsenal of rugged reinforcements to cover your six. MaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans. A high-quality diecast shroud and aluminum backplate help prevent PCB flex and feature large vents to further increase heat dissipation. ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks.
| Graphics Processing | Radeon RX 9060 XT |
| Core Clock | OC Mode: Up to 3340 MHz Boost Clock / Up to 2800 MHz Game Clock Default Mode: Up to 3320 MHz Boost Clock / Up to 2780 MHz Game Clock |
| Stream Processors | 2048 |
| Ray Accelerators | 32 |
| Memory Clock | 20000 MHz |
| Memory Size | 16 GB |
| Memory Type | GDDR6 |
| Memory Bus | 128 bit |
| Memory Bandwidth (GB/sec) | 320 GB/s |
| Card Bus | PCI-E 5.0 x16 |
| Digital max resolution | 7680x4320 |
| Multi-view | 3 |
| Card size | 304 x 126 x 50 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 550W |
| Power Connectors | 1 x PCIe 8-Pin |
| Output | 2 x DisplayPort 2.1a 1 x HDMI 2.1 |
| Multi-GPU Support | No |
| Accessories | Thank You Card Speedsetup Manual |
| Manufacturer | |
| Manufacturer's Website | Link * |
| Product Website | Link * |
| Warranty Information | |
| Warranty Duration | 3 Years |

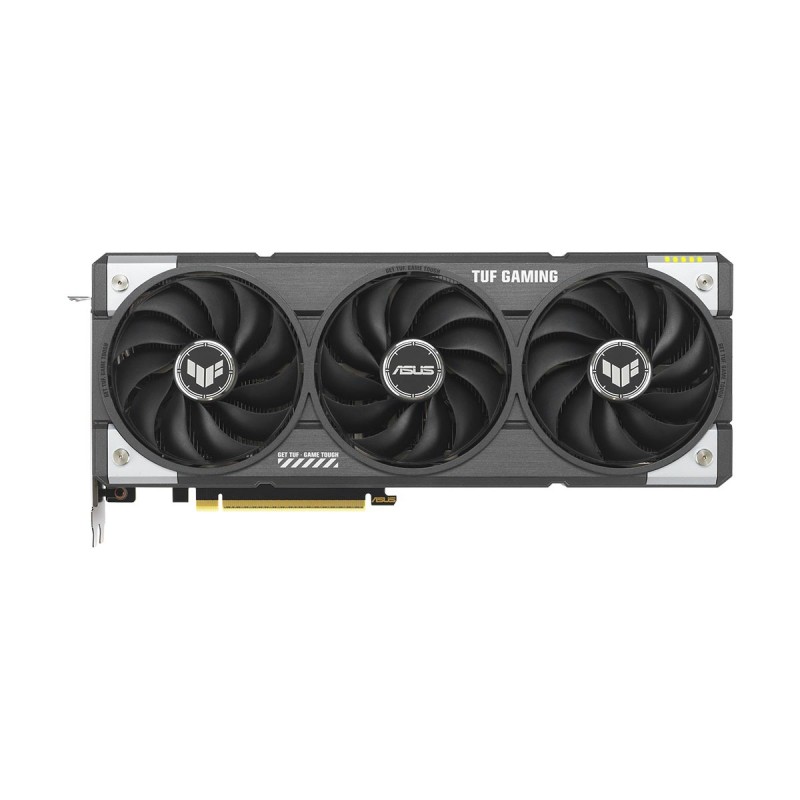

ASUS TUF GAMING Radeon RX 9060 XT OC Edition 16GB GDDR6 Graphics Card, 16GB
- AMD Radeon RX 9060 XT Graphics Processor
- Base Clock: 1700 MHz
- Boost Clock: Up to 3340 MHz
- Stream Processors: 2048
- Ray Accelerators: 32
- AI Accelerators: 64
- Compute Units: 32
- Memory: 16GB GDDR6
- Effective Memory Clock: 20,000 MHz
- Real Time Ray Tracing
- AMD FSR 4 AI Upscaling Technology
- Reinforced Structure with Metal Backplate
- 2 x DisplayPort 2.1a, 1 x HDMI 2.1
- 1 x 8-Pin PCIe Power Connector
- 3 Year Warranty
- Product Code: TUF-RX9060XT-O16G-GAMING
- Availability:
Out Of Stock
Lead Times:
- In Stock with Progenix: Ready for collection/dispatch once payment clears. The cut-off for same-day dispatch is 12:00pm on business days.
- In Stock with Supplier: 1-3 business days until dispatched or ready for collection
- Out Of Stock: Contact us to see if this item will be restocked.
