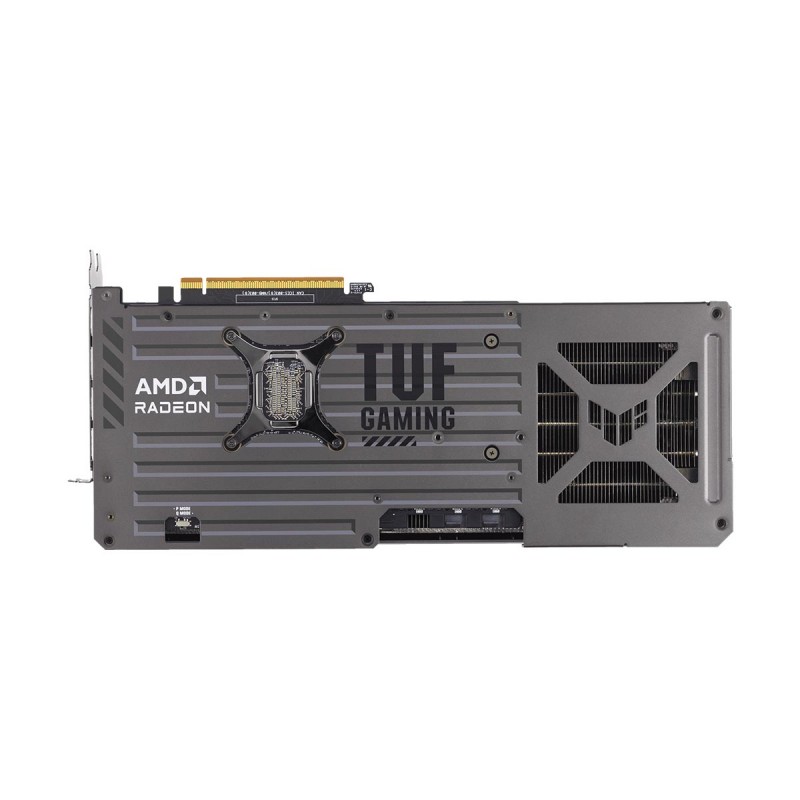

By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads. This advanced cooling design features the ASUS-exclusive MaxContact manufacturing technique, a phase-change GPU thermal pad and efficient Axial-tech fans, helping to ensure premium thermal performance, optimized airflow and quiet operation, all within a robust and vented metal exoskeleton. A high-quality diecast shroud and aluminum backplate help prevent PCB flex and feature large vents to further increase heat dissipation. ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.
| Graphics Processing | Radeon RX 9070 |
| Core Clock | Boost Clock: Up to 2670 MHz (Reference card: 2520 MHz) Game Clock: Up to 2190 MHz (Reference card: 2070 MHz) |
| Stream Processors | 3584 |
| Ray Accelerators | 56 |
| Memory Clock | 20000 MHz |
| Memory Size | 16 GB |
| Memory Type | GDDR6 |
| Memory Bus | 256 bit |
| Memory Bandwidth (GB/sec) | 640 GB/s |
| Card Bus | PCI-E 5.0 x16 |
| Digital max resolution | 7680x4320 |
| Multi-view | 4 |
| Card size | 330 x 140 x 63 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 750W |
| Power Connectors | 2 x PCIe 8-Pin |

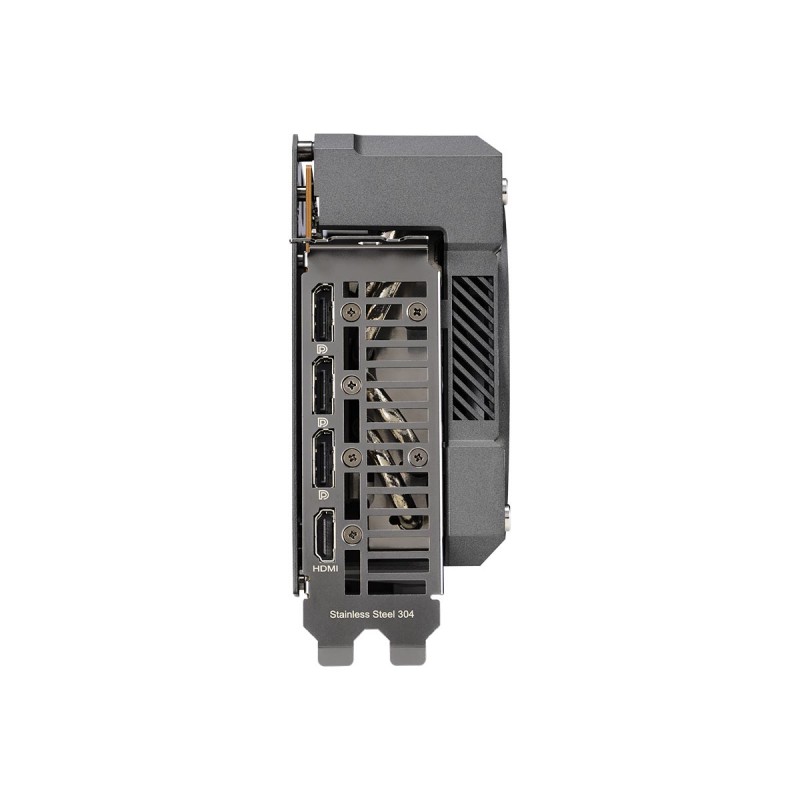

| Output | 3 x DisplayPort 2.1a 1 x HDMI 2.1 |
| Multi-GPU Support | No |

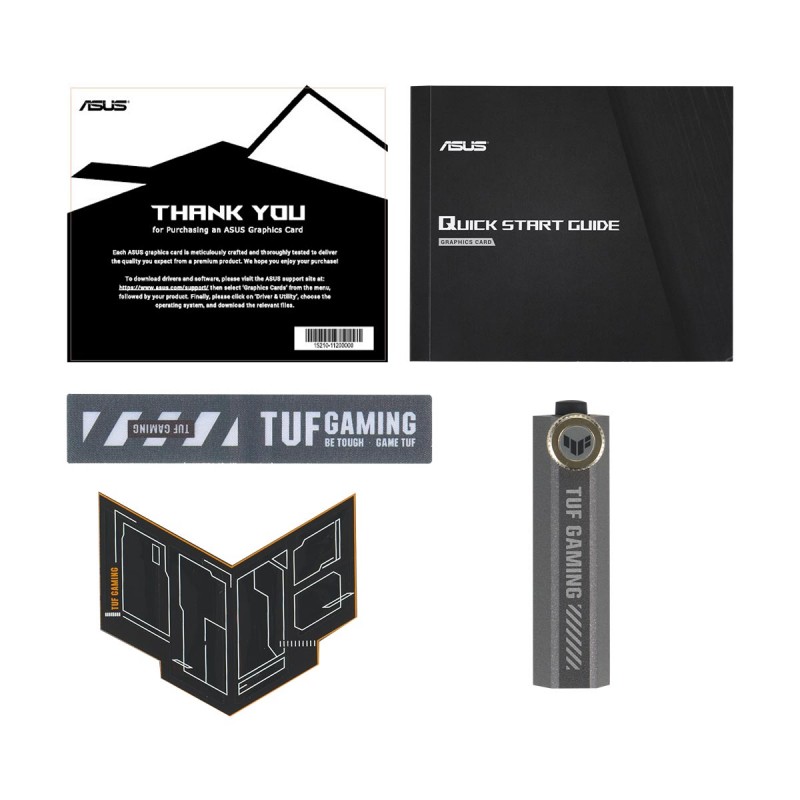

| Accessories | TUF Certificate of Reliabiltiy TUF Gaming Graphics Card Holder TUF Velcro Hook & Loop TUF Fridge Magnet Thank You Card Speedsetup Manual |
| Manufacturer | |
| Manufacturer's Website | Link * |
| Product Website | Link * |
| Warranty Information | |
| Warranty Duration | 3 Years |

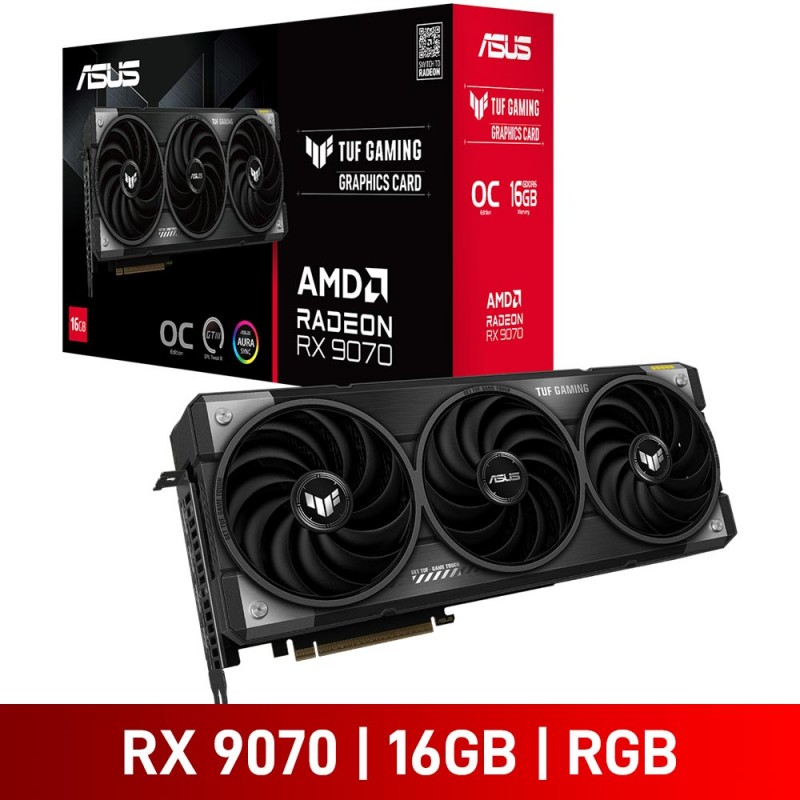

ASUS TUF GAMING Radeon RX 9070 OC Edition 16GB GDDR6 Graphics Card, 16GB
- AMD Radeon RX 9070 Graphics Processor
- Base Clock: 1330 MHz
- Game Clock: Up to 2190 MHz
- Boost Clock: Up to 2670 MHz
- Stream Processors: 3,854 Stream Processors
- Ray Accelerators: 56 Ray Accelerators
- AI Accelerators: 112 AI Accelerators
- Compute Units: 56 Compute Units
- Memory: 16GB GDDR6
- Effective Memory Clock: 20,000 MHz
- Real Time Ray Tracing
- AMD FSR 4 AI Upscaling Technology
- Reinforced Structure with Metal Backplate
- Included GPU Support
- Phase-Change GPU Thermal Pad
- 16.7 Million Colour RGB Lighting
- 3 x DisplayPort 2.1a, 1 x HDMI 2.1
- 2 x 8-Pin PCIe Power Connectors
- 3 Year Warranty
- Product Code: 90YV0LI0-M0NA00
- Availability:
Out Of Stock
Lead Times:
- In Stock with Progenix: Ready for collection/dispatch once payment clears
- In Stock with Supplier: 1-3 working days until dispatched or ready for collection
- Out Of Stock: Contact us to see if this item will be restocked.
