Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard. Optimized for stability, durability, and efficiency. It combines reliable performance, user-friendly features and streamlined style for daily computing tasks. The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs. The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

CPU	AMD Socket AM5 Supports AMD Ryzen 7000 / 8000 / 9000 Series Desktop Processors
Chipset	AMD B850
Memory	4 x DDR5 DIMM sockets supporting up to 256 GB of system memory Dual Channel DDR5 Memory Technology Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC) Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Onboard Graphics	Integrated Graphics Processor with AMD Radeon Graphics support: 1 x HDMI 2.1 TMDS/FRL 8G Compatible Supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x USB 3.2 Gen1 Type-C Supports DP 1.4 HBR3 and max. resolution up to 4K 60Hz (DP-alt mode supports DP1.4a)
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
LAN	2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
Wireless Communication Module	802.11axe Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax/axe Supports Dual-Band 2x2 with extended 6GHz band support 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports MU-MIMO Supports Bluetooth 5.2
Expansion Slots	CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode 15μ Gold Contact in VGA PCIe Slot PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors Chipset: 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode If M2_3 is occupied, PCIE2 will be disabled 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage Interface	CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode M2_1 is the first priority for M.2 installation M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode M2_2 will run at Gen4x4 with 9000 and 7000 series processors, Gen4x4 with 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series processors Chipset: 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode If M2_3 is occupied, PCIE2 will be disabled 1 x Ultra M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode If SATA3_1 or SATA3_2 is occupied, M2_4 will downgrade to Gen3x2 mode 2 x SATA3 6.0 Gb/s Connectors ASMedia ASM1061: 2 x SATA3 6.0 Gb/s Connectors
USB	CPU: 1 x USB 3.2 Gen2 Type-C (Rear) 1 x USB 3.2 Gen1 Type-C (Rear) 2 x USB 3.2 Gen1 Type-A (Rear (USB32_1 and USB32_2)) Chipset: 1 x USB 3.2 Gen2x2 Type-C (Front) 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_3 and USB32_4), 4 Front) 10 x USB 2.0 (6 Rear, 4 Front) All USB ports support ESD Protection
Internal I/O Connectors	1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header Supports in total up to 12V/3A, 36W LED Strip 3 x Addressable LED Headers Support in total up to 5V/3A, 15W LED Strip 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) CPU_FAN1 supports the fan power up to 1A (12W) CPU_FAN2, CHA_FAN1~4 and AIO_PUMP support the fan power up to 3A (36W) CPU_FAN2, CHA_FAN1~4 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) CPU_FAN1 supports the fan power up to 1A (12W) CPU_FAN2, CHA_FAN1~4 and AIO_PUMP support the fan power up to 3A (36W) CPU_FAN2, CHA_FAN1~4 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) CPU_FAN1 supports the fan power up to 1A (12W) CPU_FAN2, CHA_FAN1~4 and AIO_PUMP support the fan power up to 3A (36W) CPU_FAN2, CHA_FAN1~4 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use 1 x 24 pin ATX Power Connector 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Back Panel Connectors	2 x Antenna Ports 1 x HDMI Port 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) 1 x USB 3.2 Gen1 Type-C Port (DP-alt mode supports DP1.4a) 4 x USB 3.2 Gen1 Type-A Ports 6 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone
I/O Controller	Not Specified
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control
BIOS	1 x 256 Mbit flash AMI UEFI Legal BIOS with GUI support
Unique Features	Superb Productivity PCIe Gen5 (Graphics, M.2) Dual Channel DDR5 Rock-Solid Durability 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor Flexible Integrated I/O Shield Ultrafast Connectivity 2.5G LAN, 802.11axe Wi-Fi 6E Module EZ Update BIOS Flashback Button ASRock Auto Driver Installer EZ Troubleshooter ASRock Post Status Checker
Bundled Software	Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC These utilities can be downloaded from ASRock Live Update & APP Shop UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash
Operating System	Support for Windows 11 64-bit
Form Factor	ATX Form Factor 30.5cm x 24.4cm

Manufacturer
Manufacturer's Website	Link *
Product Website	Link *
Warranty Information
Warranty Duration	3 Years

* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating Bad Good

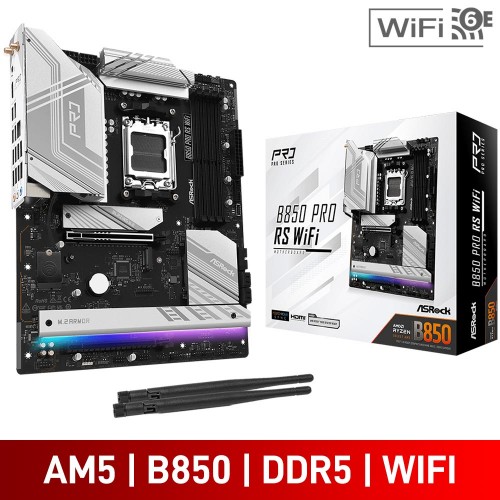

ASRock B850 PRO RS WiFi, AMD B850 Chipset, Socket AM5, ATX Desktop Motherboard

- Socket Socket AM5, AMD B850 Chipset
- Supports Ryzen 7000 / 8000 / 9000 Series Processors
- 4 x DDR5 DIMM Slots, up to 256GB, DDR5-8000+
- 1 x PCIe 5.0 x16 Slot
- 1 x PCIe 4.0 x16 Slot (x4 Electrical)
- 1 x M.2 PCIe 5.0 NVMe Slot
- 2 x M.2 PCIe 4.0 NVMe Slots
- 1 x M.2 PCIe 3.0 NVMe Slot
- 2 x SATA 3.0 Ports
- 2.5Gbps LAN, Wi-Fi 6E & Bluetooth 5.2
- 1 x HDMI 2.1, 1 x USB Type-C DisplayPort Alt Mode
- 2 x Rear USB Type-C 10Gb/s
- 4 x Rear USB Type-A 5Gb/s
- 6 x Rear USB 2.0/1.1 Ports
- 3 x Rear Audio Jacks
- BIOS Flashback - Update BIOS without CPU / RAM / GPU
- ASRock POST Status Checker
- Integrated RGB & 3 x ARGB Gen2 Headers
- Form Factor: ATX
- 3 Year Warranty

Product Code: 90-MXBR70-A0UAYZ
Availability: In Stock with Supplier Lead Times:

In Stock with Progenix: Ready for collection/dispatch once payment clears. The cut-off for same-day dispatch is 12:00pm on business days.

In Stock with Supplier: 1-3 business days until dispatched or ready for collection

Out Of Stock: Contact us to see if this item will be restocked.

R3,676

Price displayed is already subject to a 4% discount for EFT payments

0 reviews / Write a review
