Images are for reference purposes only and product appearances/colours may vary.

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 9000 series processors. The PRIME B850-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications. ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

CPU	AMD Socket AM5 Supports AMD Ryzen 7000 / 8000 / 9000 Series Desktop Processors Supports up to AMD 170W CPU (Refer to www.asus.com for CPU support list.)
Chipset	AMD B850
Memory	4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors ECC and Non-ECC Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP)
Onboard Graphics	Integrated Graphics Processor: 1 x HDMI port Supports max. 4K@60Hz as specified in HDMI 2.1. 1 x DisplayPort Supports max. 8K@30Hz as specified in DisplayPort 1.4
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output Supports up to 24-Bit/192 kHz playback Audio Features Audio Shielding Premium audio capacitors Dedicated audio PCB layers
LAN	1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Wireless Communication Module	Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6GHz frequency band WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later. Bluetooth v5.3
Expansion Slots	AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B850 Chipset 1 x PCIe 4.0 x16 slot (support x4 mode) 2 x PCIe 3.0 x16 slots (support x1 mode) The PCIEX16(G3)_1/2 share bandwidth with SATA6G_1/2. The SATA6G_1/2 will be disabled when The PCIEX16(G3)_1 or PCIEX16(G3)_2 runs.
Storage Interface	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode) AMD B850 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10
USB	Rear USB (Total 8 ports) 4 x USB 10Gbps port(s) (3 x Type-A + 1 x USB Type-C) 2 x USB 5Gbps ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 9 ports) 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports USB Type-C power delivery output: max. 5V/3A 3 x USB 2.0 headers support 6 additional USB 2.0 ports
Internal I/O Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connectors 1 x 4-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header 1 x Thunderbolt (USB4) header
Back Panel Connectors	1 x USB 10Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (3 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button
I/O Controller	Not Specified
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control
BIOS	256 Mb Flash ROM UEFI AMI BIOS
Unique Features	ASUS 5X PROTECTION III DIGI+ VRM LANGuard Overvoltage protection SafeSlot Stainless-steel back I/O ASUS Q-Design Q-Antenna Q-Dashboard Q-DIMM Q-LED Core Q-Slot ASUS Thermal Solution Flexible M.2 heatsink VRM heatsink design ASUS EZ DIY BIOS FlashBack button BIOS FlashBack LED Pre-mounted I/O shield SafeSlot Aura Sync Addressable RGB Gen 2 headers
Bundled Software	Armoury Crate Aura Creator Aura Sync Fan Xpert 2+ Power Saving ASUS AI Advisor ASUS Driver Hub ASUS GlideX TurboV Core ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode ASUS MyHotkey
Operating System	Support for Windows 11 64-bit
Form Factor	ATX Form Factor 30.5cm x 24.4cm

Manufacturer
Manufacturer's Website	Link *
Product Website	Link *
Warranty Information
Warranty Duration	3 Years

* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating Bad Good

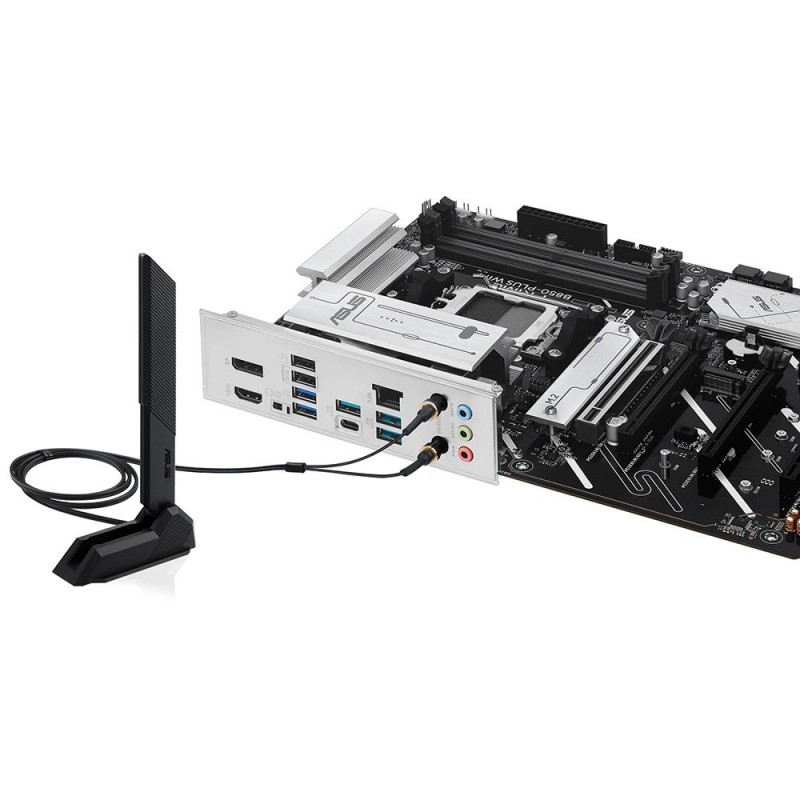

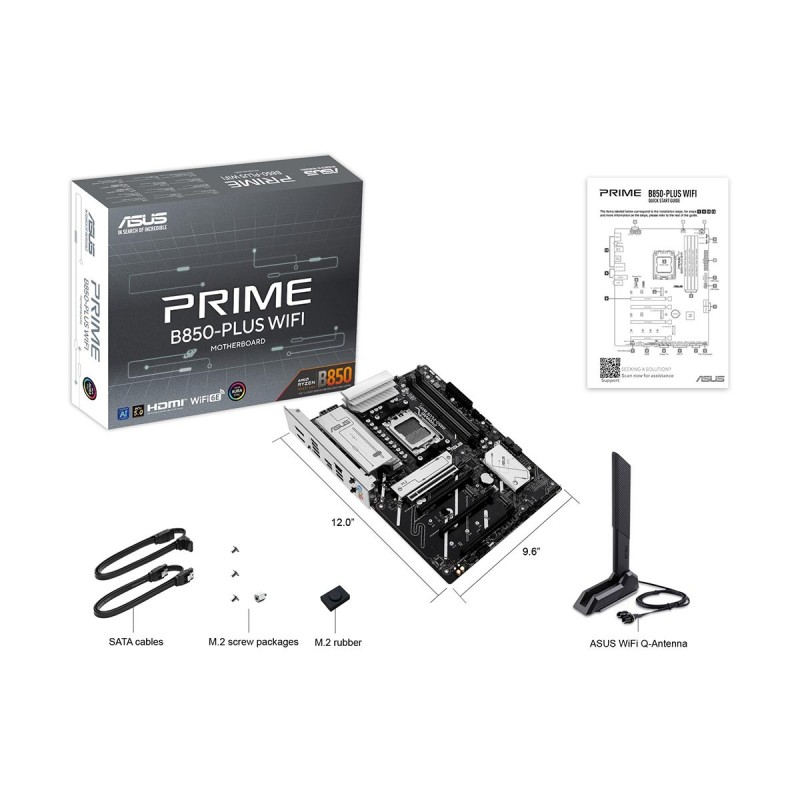

ASUS PRIME B850-PLUS WIFI, AMD B850 Chipset, Socket AM5, ATX Desktop Motherboard

- Socket AM5, AMD B850 Chipset
- Supports Ryzen 7000 / 8000 / 9000 Series Processors
- 4 x DDR5 DIMM Slots, up to 256GB, DDR5-8000
- 1 x PCIe 5.0 x16 Slot
- 1 x PCIe 4.0 x16 Slot (x4 Electrical)
- 2 x PCIe 3.0 x16 Slots (x1 Electrical)
- 1 x M.2 PCIe 5.0 NVMe Slot
- 1 x M.2 PCIe 4.0 NVMe Slot
- 1 x M2. PCIe 4.0 x2 NVMe Slot
- 4 x SATA 3.0 Ports, Supports RAID 0 / 1 / 5 / 10
- 2.5Gbps LAN, Wi-Fi 6E & Bluetooth 5.3
- 1 x HDMI 2.1, 1 x DisplayPort 1.4
- 1 x Rear USB Type-C 10Gb/s
- 3 x Rear USB Type-A 10Gb/s, 2 x USB Type-A 5Gb/s
- 2 x Rear USB 2.0/1.1
- 3 x Rear Audio Jacks
- BIOS Flashback: Update BIOS without CPU / RAM / GPU
- Q-Antenna Quick-Release Wi-Fi Antenna
- ASUS Q-LED Core for Boot Diagnostics
- 3 x ARGB Gen2 Headers
- Form Factor: ATX
- 3 Year Warranty

Product Code: 90MB1L80-M0EAY0
Availability: In Stock with Supplier Lead Times:

In Stock with Progenix: Ready for collection/dispatch once payment clears. The cut-off for same-day dispatch is 12:00pm on business days.

In Stock with Supplier: 1-3 business days until dispatched or ready for collection

Special Order Item: Ordered specially upon request. Contact us for estimated lead times.

Out Of Stock: Contact us to see if this item will be restocked.

R3,579

Price displayed is already subject to a 4% discount for EFT payments

0 reviews / Write a review
