ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME X670-P WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME X670 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher. PRIME X670 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

CPU
  • AMD Socket AM5 for AMD Ryzen 7000, 8000 and 9000 Series Desktop Processors
Refer to www.asus.com for CPU support list.
Chipset
  • AMD X670
Memory
  • 4 x DIMM, Max. 128GB, DDR5
  • 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800 ECC and Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports AMD EXTended Profiles for Overclocking (EXPO)
  • OptiMem II
    * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
    * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Onboard Graphics

Integrated Graphics Processor:

  • 1 x DisplayPort
    * Supports max. 8K@60Hz as specified in DisplayPort 1.4.
  • 1 x HDMI port
    * Supports 4K@60Hz as specified in HDMI 2.1
Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
  • Audio Features
    Audio Shielding
    Premium audio capacitors
    Dedicated audio PCB layers
    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
LAN
  • 1 x Realtek 2.5Gb Ethernet
Wireless Communication Module

Wi-Fi 6

  • 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  • Supports 2.4/5GHz frequency band
  • Bluetooth v5.2
Expansion Slots

AMD Ryzen 7000 Series Desktop Processors:

  • 1 x PCIe 4.0 x16 slot (supports x16 mode)

AMD X670 Chipset:

  • 2 x PCIe 4.0 x16 slots (support x4 mode)
  • 1 x PCIe 3.0 x1 slot
    * The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used.
Multi-Graphics Technology
  • Support for AMD CrossFire technology
Storage Interface

Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports

AMD Ryzen 7000 Series Desktop Processors:

  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

AMD X670 Chipset:

  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • 6 x SATA 6Gb/s ports
    * The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used.

AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.

USB

Rear USB (Total 10 ports)

  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
  • 3 x USB 3.2 Gen 2 ports (3 x Type-A)
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 9 ports)

  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
  • 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Internal I/O Connectors

Fan and Cooling related

  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 3 x 4-pin Chassis Fan headers

Power related

  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector

Storage related

  • 3 x M.2 slots (Key M)
  • 6 x SATA 6Gb/s ports

USB

  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
  • 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

  • 3 x Addressable Gen 2 headers
  • 2 x Aura RGB headers
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x S/PDIF Out header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 20-5 pin System Panel header
  • 1 x Thunderbolt header
Back Panel Connectors
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
  • 3 x USB 3.2 Gen 2 ports (3 x Type-A)
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x Wi-Fi Module
  • 1 x Realtek 2.5Gb Ethernet port
  • 3 x Audio jacks
  • 1 x BIOS FlashBack button
  • 1 x PS/2 Keyboard/Mouse combo port
I/O Controller
  • Not Specified
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS
Unique Features

ASUS 5X PROTECTION III

  • DIGI+ VRM (- Digital power design with DrMOS)
  • ESD Guards
  • LANGuard
  • Overvoltage Protection
  • Safeslot Core+
  • Stainless-Steel Back I/O

ASUS Q-Design

  • M.2 Q-Latch
  • Q-DIMM
  • Q-LED Core
  • Q-Slot

ASUS Thermal Solution

  • M.2 heatsink
  • VRM heatsink design

ASUS EZ DIY

  • BIOS FlashBack button
  • BIOS FlashBack LED
  • ProCool

Aura Sync

  • Aura RGB headers
  • Addressable Gen 2 headers
Bundled Software

ASUS Exclusive Software

  • Armoury Crate
    Aura Creator
    Aura Sync
    Fan Xpert 4 with AI Cooling II
    Power Saving

AI Suite 3

  • TurboV EVO
  • DIGI+ VRM
  • PC Cleaner

ASUS CPU-Z

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode
Operating System
  • Support for Windows 11 64-bit
Form Factor
  • ATX Form Factor, 30.5cm x 24.4cm
Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

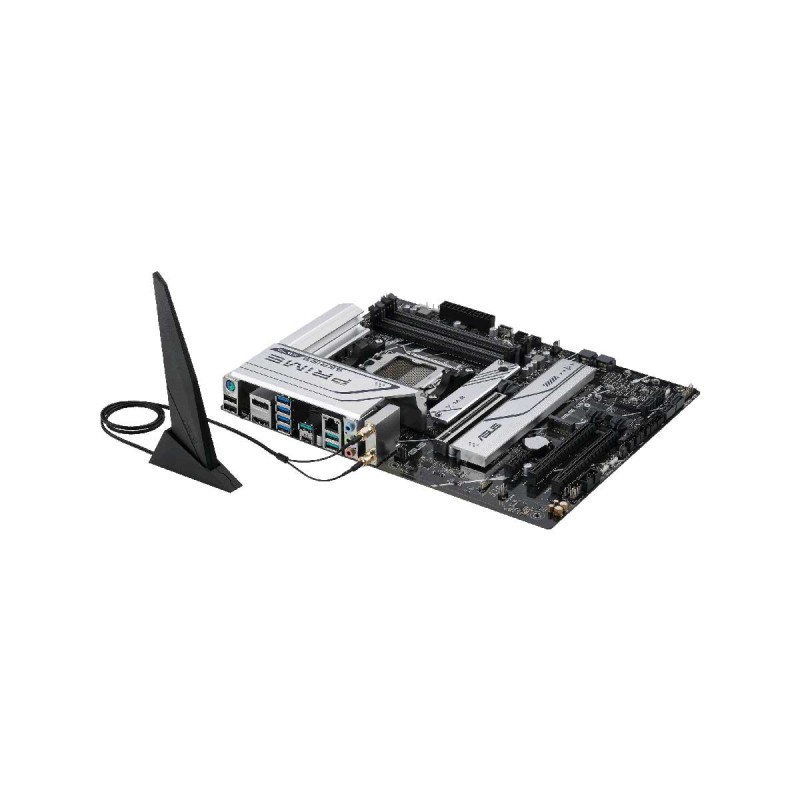

ASUS PRIME X670-P WIFI, AMD X670 Chipset, Socket AM5, ATX Desktop Motherboard

- Socket AM5, AMD X670 Chipset
- Supports AMD Ryzen 7000, 8000 & 9000 Series Processors
- 4 x DDR5 DIMM Slots, Up To 128GB, DDR5-6400 (OC)
- 1 x PCIe 4.0 x16 Slot
- 2 x PCIe 4.0 x16 Slots (x4 electrical)
- 1 x PCIe 3.0 x1 Slot
- 1 x M.2 PCIe 5.0 NVMe Slot, 2 x M.2 PCIe 4.0 NVMe Slots
- 4 x SATA Ports with RAID 0/1/10
- 2.5Gbps LAN + Wi-Fi 6
- 1 x Rear USB Type-C 20Gb/s
- 3 x Rear USB Type-A 10Gb/s, 4 x Rear USB Type-A 5Gb/s
- Form Factor: ATX
- 3 Year Warranty

  • Product Code: 90MB1BV0-M0EAY0
  • Availability: In Stock with Supplier leadtimeTooltip Lead Times:
    • In Stock with Progenix: Ready for collection/dispatch once payment clears. The cut-off for same-day dispatch is 12:00pm on business days.
    • In Stock with Supplier: 1-3 business days until dispatched or ready for collection
    • Special Order Item: Ordered specially upon request. Contact us for estimated lead times.
    • Out Of Stock: Contact us to see if this item will be restocked.

  • R4,245



Price displayed is already subject to a 4% discount for EFT payments

0 reviews / Write a review
