Images are for reference purposes only and product appearances/colours may vary.

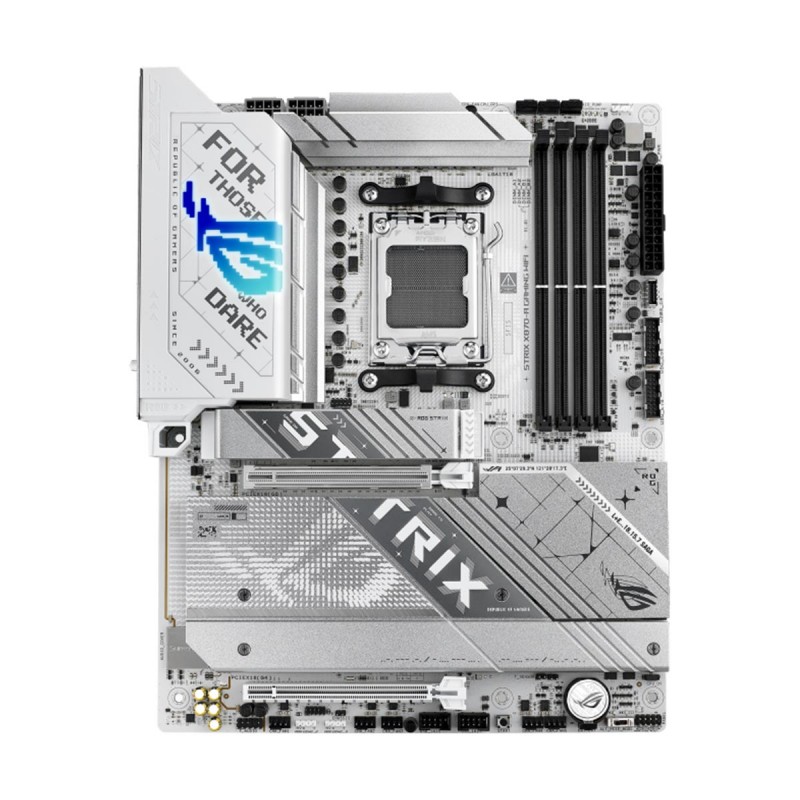

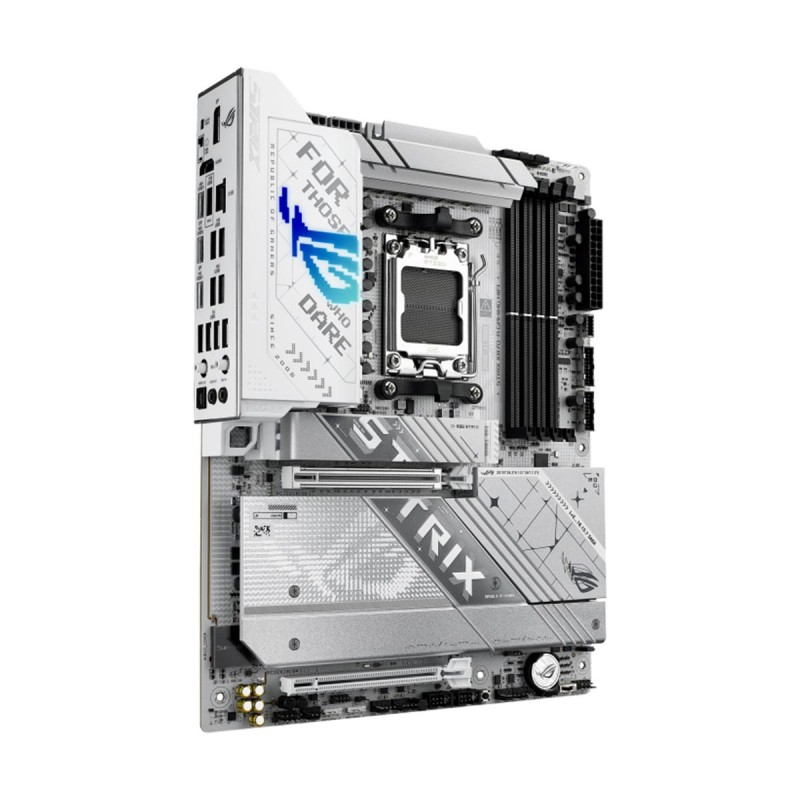

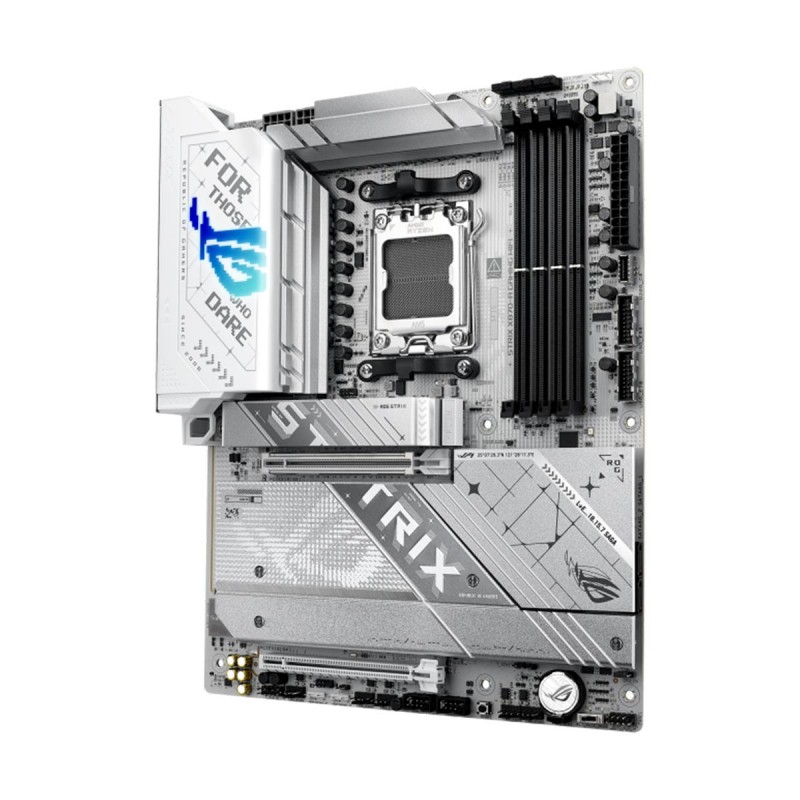

Elevate your build with the ROG Strix X870-A Gaming WiFi. Featuring a sleek white PCB and support for AMD Ryzen 9000 Series processors, this motherboard delivers the power and connectivity needed for advanced AI applications. With DDR5 support, full PCIe 5.0 capabilities, dual USB4 ports, and WiFi 7, it's the ultimate blend of style and performance. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. The Strix X870-A is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.

CPU
  • AMD Socket AM5 for AMD Ryzen 7000 / 8000 / 9000 Series Desktop Processors
(Refer to www.asus.com for CPU support list.)
Chipset
  • AMD X870
Memory

  • 4 x DIMM slots, max. 192GB, DDR5
  • Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors
  • ECC and Non-ECC Un-buffered DIMM
  • Dual Channel Memory Architecture
  • Supports AMD EXTended Profiles for Overclocking (EXPO)
  • ASUS Enhanced Memory Profile (AEMP)
Onboard Graphics

Integrated Graphics Processor:

  • 1 x DisplayPort
    • Supports max. 8K@30Hz as specified in DisplayPort 1.4.
  • 1 x HDMI port
    • Supports 4K@60Hz as specified in HDMI 2.1.
  • 2 x USB4 (40Gbps) ports support USB Type-C display outputs
    • VGA resolution support depends on processors' or graphic cards' resolution.
Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

  • The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
  • Impedance sense for front and rear headphone outputs
  • Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
  • High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
  • Supports up to 32-Bit/384 kHz playback on front panel
  • Audio Features
    • SupremeFX Shielding Technology
    • Savitech SV3H712 AMP
    • Rear optical S/PDIF out port
    • Premium audio capacitors
    • Audio cover
LAN

1 x Intel 2.5Gb Ethernet

ASUS LANGuard

Wireless Communication Module

Wi-Fi 7

  • 2x2 Wi-Fi 7 (802.11be)
  • Supports 2.4/5/6GHz frequency band
  • Support Wi-Fi 7 320MHz bandwidth, up to 2.9Gbpstransfer rate.
    • For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
    • For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
  • Bluetooth v5.4
Expansion Slots

AMD Ryzen 9000 & 7000 Series Desktop Processors

  • 1 x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen 8000 Series Desktop Processors

  • 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)

AMD X870 Chipset

  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
Storage Interface

Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports

AMD Ryzen 9000 & 7000 Series Desktop Processors

  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
    • M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only.

AMD Ryzen 8000 Series Desktop Processors

  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
    • M.2_2 will be disabled when using AMD Ryzen 8000 Series Desktop Processors.

AMD X870 Chipset

  • M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    • M.2_3 shares bandwidth with PCIEX16(G4). When M.2_3 is occupied with SSD device, PCIEX16(G4) will be disabled.
  • M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • 2 x SATA 6Gb/s ports

AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU.

USB

Rear USB (Total 12 ports)

  • 2 x USB4 (40Gbps) ports(2 x USB Type-C with DP Alt mode)
    • USB Type-C power delivery output: max. 5V/3A
  • 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C with up to 30W PD Fast-charge)
    • USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
  • 4 x USB 5Gbps ports (4 x Type-A)

Front USB (Total 9 ports)

  • 1 x USB 20Gbps connector (supports USB Type-C)
  • 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Internal I/O Connectors

Fan and Cooling Related

  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 5 x 4-pin Chassis Fan headers

Power Related

  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V CPU Power connectors

Storage Related

  • 4 x M.2 slots (Key M)
  • 2 x SATA 6Gb/s ports

USB

  • 1 x USB 20Gbps connector (supports USB Type-C)
  • 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

  • 3 x Addressable Gen 2 headers
  • 1 x Alteration PCIe mode switch
  • 1 x Chassis Intrusion header
  • 1 x CPU Over voltage jumper
  • 1 x Front Panel Audio header (F_AUDIO)
  • 1 x Start button
  • 1 x 10-1 pin System Panel header
  • 1 x Thermal Sensor header
Back Panel Connectors
  • 2 x USB4 (40Gbps) ports (2 x USB Type-C with DP Alt mode)
  • 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C with up to 30W PD Fast-charge)
  • 4 x USB 5Gbps ports (4 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x Wi-Fi module
  • 1 x Intel 2.5Gb Ethernet
  • 2  x Audio jacks 
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack button 
  • 1 x Clear CMOS button 
I/O Controller
  • Not Specified
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS
Unique Features

Extreme Engine Digi+

  • 5K Black metallic capacitors

ASUS Q-Design

  • M.2 Q-Latch
  • M.2 Q-Release
  • M.2 Q-Slide
  • PCIe Slot Q-Release Slim (with PCIe SafeSlot)
  • Q-Antenna
  • Q-DIMM
  • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • Q-Slot

ASUS Thermal Solution

  • M.2 heatsink backplate
  • M.2 heatsink

ASUS EZ DIY

  • BIOS FlashBack button
  • BIOS FlashBack LED
  • Clear CMOS button
  • ProCool II
  • Pre-mounted I/O shield
  • SafeSlot
  • SafeDIMM

Aura Sync

  • Addressable Gen 2 headers
Bundled Software

ROG Exclusive Software

  • ROG CPU-Z
  • Dolby Atmos

Armoury Crate

  • AIDA64 Extreme (60 days free trial)
  • Aura Creator
  • Aura Sync
  • Fan Xpert 4 (with AI Cooling II)
  • GameFirst
  • HWiNFO
  • Power Saving

ASUS Driver Hub

ASUS GlideX

USB Wattage Watcher

TurboV Core

Adobe Creative Cloud (Free Trial)

Norton 360 for Gamers (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

  • AI Overclocking Guide

ASUS EZ DIY

  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode
  • ASUS MyHotkey

Dynamic OC Switcher

FlexKey

Operating System
  • Support for Windows 10 64-bit / Windows 11 64-bit
Form Factor
  • ATX Form Factor, 30.5cm x 24.4cm

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

ASUS ROG STRIX X870-A GAMING WIFI, AMD X870 Chipset, Socket AM5, ATX Desktop Motherboard

- Socket Socket AM5, AMD X870 Chipset
- Supports Ryzen 7000 / 8000 / 9000 Series Processors
- 4 x DDR5 DIMM Slots, up to 192GB, DDR5-8000
- 1 x PCIe 5.0 x16 Slot
- 1 x PCIe 4.0 x16 Slot (x4 electrical)
- 2 x M.2 PCIe 5.0 NVMe Slots
- 2 x M.2 PCIe 4.0 NVMe Slots
- 2 x SATA 3.0 Ports, Supports RAID 0 / 1
- 2.5Gbps LAN & Wi-Fi 7
- 1 x HDMI 2.1, 1 x DisplayPort 1.4, 2 x Type-C DP Alt Mode
- 2 x Rear USB Type-C 40Gb/s, 1 x Rear USB Type-C 10Gb/s
- 5 x USB Type-A 10Gb/s, 4 x Rear USB Type-A 5Gb/s
- Form Factor: ATX
- 3 Year Warranty

  • Product Code: 90MB1IF0-M0EAY0
  • Availability: In Stock with Supplier leadtimeTooltip Lead Times:
    • In Stock with Progenix: Ready for collection/dispatch once payment clears. The cut-off for same-day dispatch is 12:00pm on business days.
    • In Stock with Supplier: 1-3 business days until dispatched or ready for collection
    • Out Of Stock: Contact us to see if this item will be restocked.
    Last Item in Stock

  • R8,954



Price displayed is already subject to a 4% discount for EFT payments

0 reviews / Write a review
