Images are for reference purposes only and product appearances/colours may vary.

With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming. GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance. GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity. GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality. GIGABYTE Ultra Durable design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.

CPU
  • AMD Socket AM5, support for AMD Ryzen 7000 Series Processors
(Please refer "CPU Support List" for more information.)
Chipset
  • AMD B650
Memory
  • Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
  • 2 x DDR5 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics

Integrated Graphics Processor:

  • 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
    * Support for DisplayPort 1.4 version and HDR.
  • 1 x USB Type-C port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
    * Support for DisplayPort 1.4 version and HDR.
  • 1 x HDMI port, supporting a maximum resolution of 7680x4320@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    * Support native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

Audio

Realtek ALC4080 CODEC

  • High Definition Audio
  • 2-channel
LAN
  • Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication Module

AMD Wi-Fi 6E RZ616 (MT7922A22M)

  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.2
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    (Actual data rate may vary depending on environment and equipment.)
Expansion Slots

CPU:

  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Multi-Graphics Technology
  • N/A
Storage Interface

CPU:

  • 1 x M.2 connector on the front of GC-B650I BTB PLUG (Socket 3, M key, type 2280 PCIe 5.0* x4/x2 SSD support) (M2B_CPU)
    * Actual support may vary by CPU.
  • 1 x M.2 connector on the back of GC-B650I BTB PLUG (Socket 3, M key, type 2280/2260 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

  • 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)
  • 4 x SATA 6Gb/s connectors on the front of GC-B650I FRONT CARD

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU:

  • 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
  • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

CPU + USB 2.0 Hub:

  • 4 x USB 2.0/1.1 ports available through the F_USB header on the front of GC-B650I BTB PLUG

Chipset:

  • 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header
  • 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • 2 x USB 2.0/1.1 ports on the back panel
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x CPU fan/water cooling pump header
  • 1 x system fan header (SYS_FAN1)
    * The connector is on the front of GC-B650I FRONT CARD.
  • 1 x addressable LED strip header
    * The connector is on the front of GC-B650I BTB PLUG.
  • 1 x RGB LED strip header(Note 1)
  • 3 x M.2 Socket 3 connectors (M2B_CPU/M2A_CPU/M2C_SB)
    * M2B_CPU is on the front of GC-B650I BTB PLUG.
    * M2A_CPU is on the back of GC-B650I BTB PLUG.
    * M2C_SB is on the back of the motherboard.
  • 4 x SATA 6Gb/s connectors
    * The connector is on the front of GC-B650I FRONT CARD.
  • 1 x front panel header
    * The connector is on the front of GC-B650I FRONT CARD.
  • 1 x front panel audio header (routed from the adapter card on the rear panel)
  • 1 x USB Type-C header, with USB 3.2 Gen 2x2 support
  • 1 x USB 3.2 Gen 1 header
  • 1 x USB 2.0/1.1 header
    * The connector is on the front of GC-B650I BTB PLUG.
  • 1 x reset button
    * The connector is on the front of GC-B650I BTB PLUG.
  • 1 x reset jumper
  • 1 x power switch jumper
  • 1 x Clear CMOS jumper

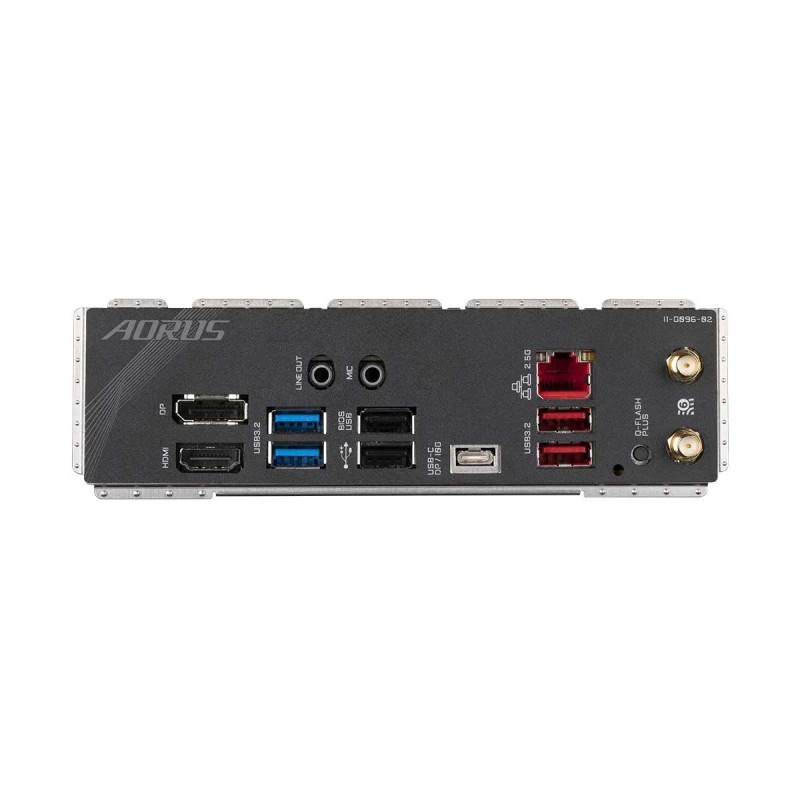

Back Panel Connectors
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x USB Type-C port (DisplayPort), with USB 3.2 Gen 2 support
  • 2 x USB 3.2 Gen 2 Type-A ports (red)
  • 2 x USB 3.2 Gen 1 ports
  • 2 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 2 x SMA antenna connectors (2T2R)
  • 1 x Q-Flash Plus button
  • 2 x audio jacks
I/O Controller
  • iTE I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • Support for Q-Flash
  • Support for Q-Flash Plus
Bundled Software
  • Norton Internet Security (OEM version)
  • LAN bandwidth management software
Operating System
  • Support for Windows 10 64-bit / Windows 11 64-bit
Form Factor
  • Mini ITX Form Factor, 17.0cm x 17.0cm

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

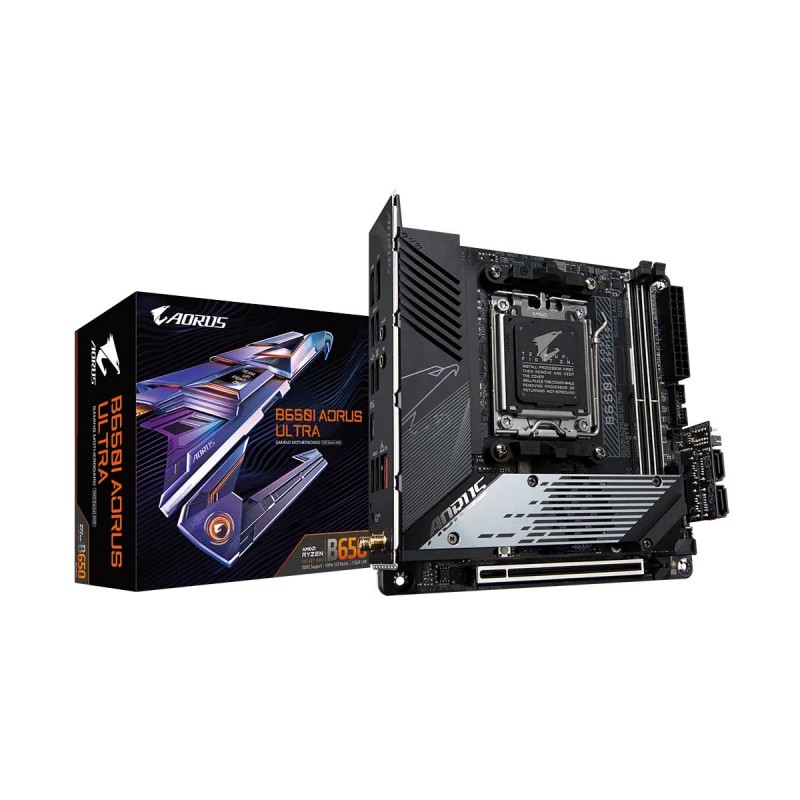

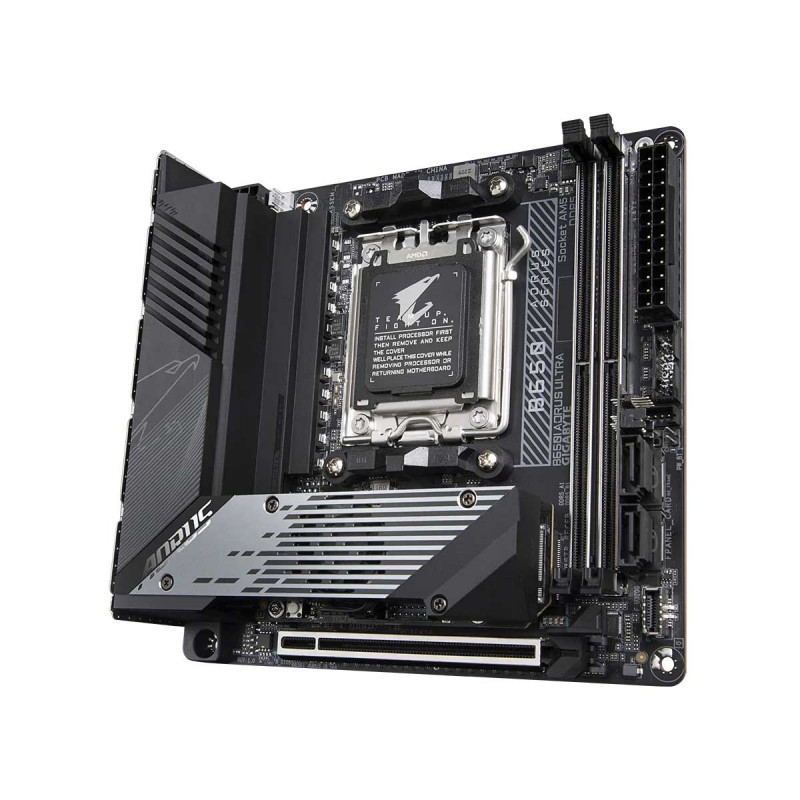

Gigabyte B650I AORUS ULTRA with Wi-Fi, AMD B650 Chipset, Socket AM5, Mini ITX Desktop Motherboard
