Images are for reference purposes only and product appearances/colours may vary.

With just a single click, unleash the full potential of DDR5 memory, instantly boosting your gaming and work efficiency. GIGABYTE Gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods. The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage. The dual latest USB4 Type-C ports provide blistering fast and reliable transfer speed up to 40 Gbps of each. Featuring extensive comparability, efficient charging, and ultra-HD displayport connectivity, USB4 is beneficial to video editing, large file transfers, and data-intensive tasks. Wi-Fi 7 transforms the VR landscape with its exceptional bandwidth and minimal latency, delivering an unparalleled, seamless immersive VR experience. Innovative and intuitive hardware, software, and BIOS interface design to create your personal style. The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install. Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer.

CPU
AMD Socket AM5, support for AMD Ryzen 7000 / Ryzen 8000 / 9000 Series Processors
  • (Please refer "CPU Support List" for more information.)
Chipset

AMD X870

Memory

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

  • Support for DDR5 8200(OC) / 8000(OC) / 7800(OC)/ 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MHz memory modules
  • Dual channel memory architecture
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics

Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller:

  • 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
    • Support for DisplayPort 1.4 version and HDR.

Integrated Graphics Processor with AMD Radeon Graphics support:

  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    • Support for HDMI 2.1 version, HDCP 2.3, and HDR.

(Graphics specifications may vary depending on CPU support.)

Audio

Realtek Audio CODEC

  • High Definition Audio
  • 2/4/5.1/7.1-channel
    • You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN

Realtek 2.5GbE LAN chip

  • 2.5 Gbps/1 Gbps/100 Mbps
Wireless Communication Module

MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)

  • 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.4
  • Support for 11be 160MHz wireless standard

Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1)

  • 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.4
  • Support for 11be 160MHz wireless standard
Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

  • AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
  • AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
  • AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
    • The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

  • 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Storage Interface

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

  • AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
  • AMD Ryzen 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  • AMD Ryzen 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs

  • The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2C_SB connector will become unavailable when an PCIe 4.0 x4 SSD is installed in the M2B_SB connector.

4 x SATA 6Gb/s connectors

  • RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
    • RAID 5 is only available on AMD Ryzen 9000 Series Processors.
USB

CPU+ASMedia USB4 controller:

  • 2 x USB4 USB Type-C ports on the back panel

CPU:

  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • 1 x USB 3.2 Gen 1 port on the back panel

CPU+USB 2.0 Hub:

  • 4 x USB 2.0/1.1 ports on the back panel

Chipset:

  • 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header
  • 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x CPU fan/water cooling pump header
  • 4 x system fan headers
  • 3 x addressable RGB Gen2 LED strip headers
  • 1 x RGB LED strip header
  • 4 x SATA 6Gb/s connectors
  • 3 x M.2 Socket 3 connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C header, with USB 3.2 Gen 2x2 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  • 1 x power button
  • 1 x reset button
  • 1 x reset jumper
  • 1 x Clear CMOS jumper
Back Panel Connectors
  • 1 x Q-Flash Plus button
  • 2 x antenna connectors (2T2R)
  • 1 x HDMI port
  • 2 x USB4 USB Type-C ports (DisplayPort)
  • 1 x USB 3.2 Gen 2 Type-A port (red)
  • 3 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks
I/O Controller
  • iTE I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
BIOS

1 x 256 Mbit flash

  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features

Support for GIGABYTE Control Center (GCC)

  • Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

  • Support for Q-Flash Plus

Support for Smart Backup

Bundled Software

Norton Internet Security (OEM version)

LAN bandwidth management software

Operating System
  • Support for Windows 10 64-bit / Windows 11 64-bit
Form Factor
  • ATX Form Factor, 30.5cm x 24.4cm

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

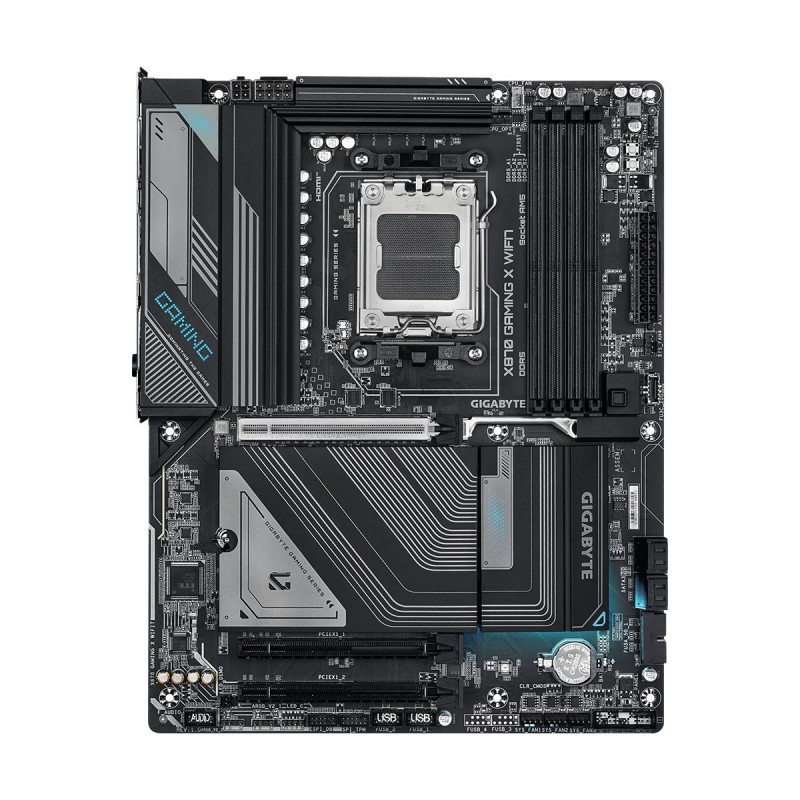

Gigabyte X870 GAMING X WIFI7, AMD X870 Chipset, Socket AM5, ATX Desktop Motherboard

- Socket AM5, AMD X870 Chipset
- Supports AMD Ryzen 7000, 8000 & 9000 Series Processors
- 4 x DDR5 DIMM Slots, up to 256GB, DDR5-8200+ (OC)
- 1 x PCIe 5.0 x16 Slot
- 2 x PCIe 3.0 x16 Slots (x1 electrical)
- 1 x M.2 PCIe 5.0 NVMe Slot
- 2 x M.2 PCIe 4.0 NVMe Slots
- 4 x SATA Ports with RAID 0/1/5/10
- 2.5Gbps LAN + Wi-Fi 7
- 1 x HDMI 2.1, 2 x Type-C DisplayPort Alt Mode
- 2 x Rear USB Type-C 40Gb/s
- 1 x Rear USB Type-A 10Gb/s, 3 x Rear USB Type-A 5Gb/s
- Form Factor: ATX
- 3 Year Warranty

  • Product Code: GA-X870-GAMING-X-WIFI7
  • Availability: In Stock with Supplier leadtimeTooltip Lead Times:
    • In Stock with Progenix: Ready for collection/dispatch once payment clears. The cut-off for same-day dispatch is 12:00pm on business days.
    • In Stock with Supplier: 1-3 business days until dispatched or ready for collection
    • Special Order Item: Ordered specially upon request. Contact us for estimated lead times.
    • Out Of Stock: Contact us to see if this item will be restocked.
    Last Item in Stock

  • R5,014



Price displayed is already subject to a 4% discount for EFT payments

0 reviews / Write a review
