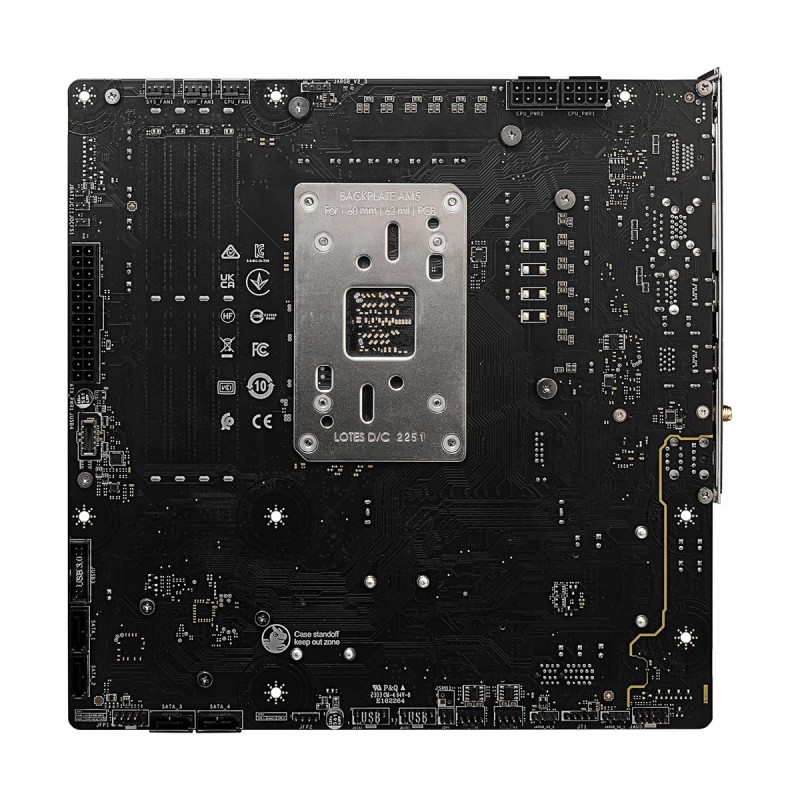

B650M PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed. MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation. MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference. MSI PROJECT ZERO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies. A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, B650M PROJECT ZERO is ready to deliver the world class memory performance. We have many partners, working together to cultivate the Back-connect device ecosystem, and we warmly welcome others to join us in strengthening the entire system!

CPU	Socket AM5 supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
Chipset	AMD B650
Memory	4 x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800(JEDEC) MHz 1DPC 1R Max speed up to 7600+ MHz 1DPC 2R Max speed up to 6400+ MHz 2DPC 1R Max speed up to 6400+ MHz 2DPC 2R Max speed up to 5400+ MHz Support Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Onboard Graphics	Integrated Graphics Processor: 1 x HDMI Support HDMI 2.1 FRL, maximum resolution of 4K 60Hz 1 x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports up to 32-Bit/384 kHz playback on front panel
LAN	Realtek RTL8125BG 2.5Gbps LAN 2.5Gbps / 1Gbps / 100Mbps / 10Mbps
Wireless Communication Module	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3
Expansion Slots	1x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) Supports x16 (For Ryzen 9000 and 7000 Series processors) Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors) Supports x4 (For Ryzen 5 8500G processor) 1x PCI-E x1 slot PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage Interface	CPU: 2 x M.2 slot M.2_1 supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 supports up to PCIe 4.0 x4 , supports 2280/2260 devices M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed Chipset: 4 x SATA 6G port Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices SATA_A1_A2 do not support RAID function Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
USB	Rear: 2 x USB 2.0 2 x USB 5Gbps Type A 3 x USB 10Gbps Type A 1 x USB 10Gbps Type C 1 x USB 20Gbps Type C Front: 4 x USB 2.0 2 x USB 5Gbps Type A 1 x USB 10Gbps Type C
Internal I/O Connectors	1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR) 1 x CPU Fan 1 x Pump Fan 3 x System Fan 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 3 x Addressable V2 RGB LED connector (JARGB_V2) 1 x TPM pin header(Support TPM 2.0) 4 x USB 2.0 ports 2 x USB 5Gbps Type A ports 1 x USB 10Gbps Type C ports

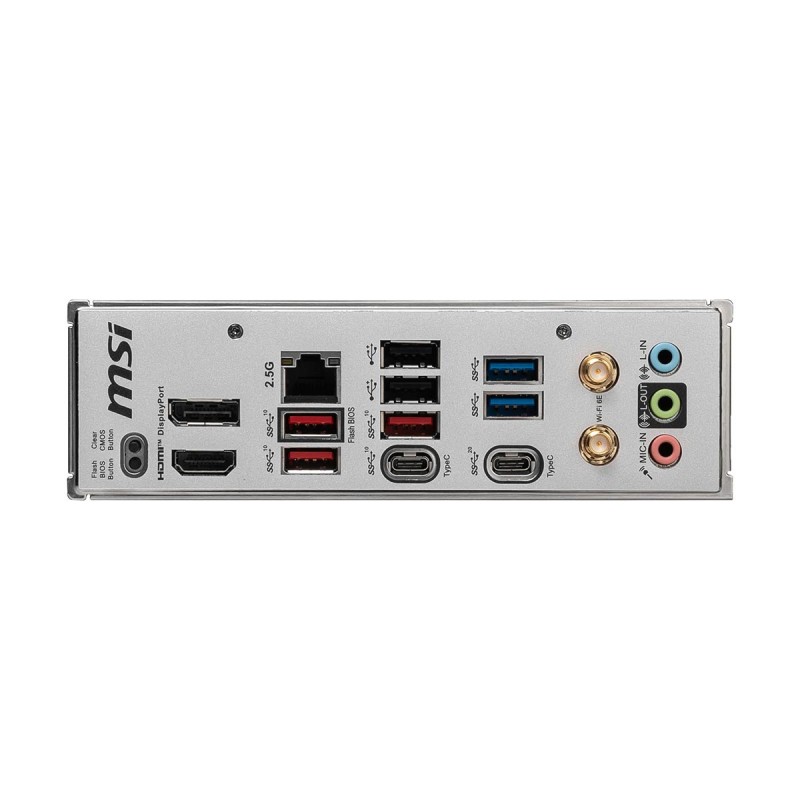

Back Panel Connectors	1 x DisplayPort 1 x 2.5G LAN 2 x USB 2.0 2 x USB 5Gbps (Type-A) 2 x Wi-Fi / Bluetooth 3 x Audio connectors 1 x Flash BIOS Button 1 x Clear CMOS Button 1 x HDMI 3 x USB 10Gbps (Type-A) 1 x USB 10Gbps (Type-C) 1 x USB 20Gbps (Type-C)
I/O Controller	Not Specified
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control
BIOS	Not Specified
Unique Features	4 x EZ Debug LED
Bundled Software	Drivers
Operating System	Support for Windows 10 64-bit / Windows 11 64-bit
Form Factor	Micro ATX Form Factor, 24.4cm x 24.4cm

Manufacturer
Manufacturer's Website	Link *
Product Website	Link *
Warranty Information
Warranty Duration	3 Years

* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating Bad Good

MSI B650M PROJECT ZERO with Wi-Fi, AMD B650 Chipset, Socket AM5, Reserve Connector Micro ATX Desktop Motherboard

- Socket AM5, AMD B650 Chipset
- Supports AMD Ryzen 7000, 8000 & 9000 Series Processors
- 4 x DDR5 DIMM Slots, up to 256GB DDR5-7600 (OC)
- 1 x PCIe 4.0 x16 Slot
- 1 x PCIe 3.0 x1 Slot
- 2 x M.2 PCIe 4.0 NVMe Slots
- 4 x SATA Ports with RAID 0/1/5/10
- 2.5 Gbe LAN & Wi-Fi 6E
- 1 x HDMI 2.1, 1 x DisplayPort 1.4
- 1 x Rear USB Type-C 20Gb/s, 1 x Rear USB Type-C 10Gb/s
- 3 x Rear USB Type-A 10Gb/s, 2 x Rear USB Type-A 5Gb/s
- 2 x Rear USB 2.0/1.1
- 3 x Rear Audio Jacks
- Form Factor: Project Zero M-ATX with Reverse Connectors
- 3 Year Warranty

Product Code: 911-7E09-003
Availability: In Stock with Supplier Lead Times:

In Stock with Progenix: Ready for collection/dispatch once payment clears. The cut-off for same-day dispatch is 12:00pm on business days.

In Stock with Supplier: 1-3 business days until dispatched or ready for collection

Special Order Item: Ordered specially upon request. Contact us for estimated lead times.

Out Of Stock: Contact us to see if this item will be restocked.

R4,211

Qty

Price displayed is already subject to a 4% discount for EFT payments

0 reviews / Write a review
