Images are for reference purposes only and product appearances/colours may vary.

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency. Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit. MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation. MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference. MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies. A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI PRO Series motherboards are ready to deliver the world class memory performance. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Easy to enable EXPO profile with auto power settings to get the best memory speed and stability.

CPU
  • Socket AM5 supports AMD Ryzen 7000 Series Desktop Processors
Chipset
  • AMD B650
Memory
  • 4 x DDR5, Maximum Memory Capacity 192GB
  • Memory Support DDR5 6000+(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800(JEDEC) MHz
  • Max. overclocking frequency:
    1DPC 1R Max. speed up to 6000+ MHz
    1DPC 2R Max. speed up to 6000+ MHz
    2DPC 1R Max. speed up to 6000+ MHz
    2DPC 2R Max. speed up to 5400+ MHz
  • Support Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports AMD EXPO
Onboard Graphics

Integrated Graphics Processor:

  • 1 x HDMI
    * Support HDMI 2.1, maximum resolution of 4K 60Hz
  • 1 x DisplayPort
    * Support DP 1.4, maximum resolution of 4K 60Hz
  • 1x VGA
    * Support VGA, maximum resolution of 1920x1200 60Hz

Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Audio

Realtek ALC897 Codec

  • 7.1-Channel High Definition Audio
LAN
  • Realtek RTL8125BG 2.5Gbps LAN
Wireless Communication Module

None

Expansion Slots

CPU:

  • 1 x PCI-E x16 slot
    * PCI_E1 PCIe 4.0 supports up to x16

Chipset:

  • 2 x PCI-E x1 slots
    * PCI_E2 and PCI_E3 PCIe 3.0
Multi-Graphics Technology
  • N/A
Storage Interface

CPU:

  • 1 x M.2 slot
    * M.2_1 supports up to PCIe 4.0 x4 , supports 2280/2260 devices

Chipset:

  • 1 x M.2 slot
    *     M.2_2 supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • 4 x SATA 6G port

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

Rear

  • 4x USB 2.0
  • 2x USB 3.2 Gen2 Type A
  • 2x USB 3.2 Gen1 Type A

Front

  • 4x USB 2.0
  • 2x USB 3.2 Gen1 Type A
  • 1x USB 3.2 Gen2 Type C
Internal I/O Connectors
  • 1 x Power Connector(ATX_PWR)
  • 1 x Power Connector(CPU_PWR)
  • 1 x CPU Fan
  • 1 x Pump Fan
  • 3 x System Fan
  • 2 x Front Panel (JFP)
  • 1 x Chassis Intrusion (JCI)
  • 1 x Front Audio (JAUD)
  • 1 x Com Port (JCOM)
  • 2 x Addressable V2 RGB LED connector (JARGB_V2)
  • 2 x RGB LED connector(JRGB)
  • 1 x TPM pin header(Support TPM 2.0)
  • 4 x USB 2.0 ports
  • 2 x USB 3.2 Gen1 Type A ports
  • 1 x USB 3.2 Gen2 Type C ports

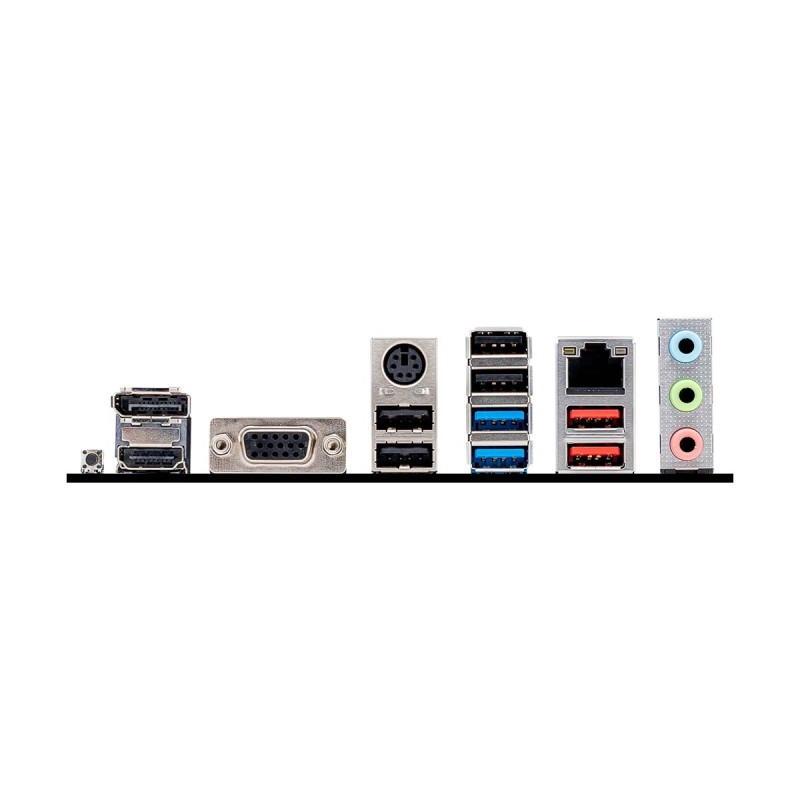

Back Panel Connectors
  • 1 x DisplayPort
  • 1 x VGA
  • 1 x Keyboard / Mouse
  • 4 x USB 2.0
  • 1 x 2.5G LAN
  • 3 x Audio connectors
  • 1 x Flash BIOS Button
  • 1 x HDMI
  • 2 x USB 3.2 Gen 1 5Gbps (Type-A)
  • 2 x USB 3.2 Gen 2 10Gbps (Type-A)
I/O Controller
  • Not Specified
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Fan fail warning
  • Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  • Not Specified
Unique Features
  • 4 x EZ Debug LED
Bundled Software
  • Drivers
Operating System
  • Support for Windows 10 64-bit / Windows 11 64-bit
Form Factor
  • Micro ATX Form Factor, 24.4cm x 24.4cm

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

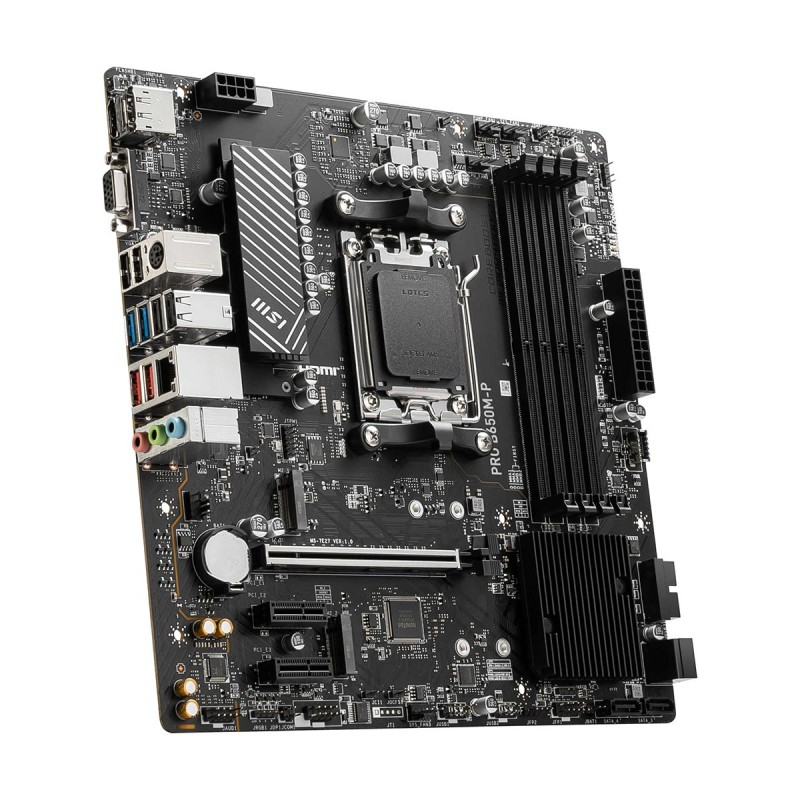

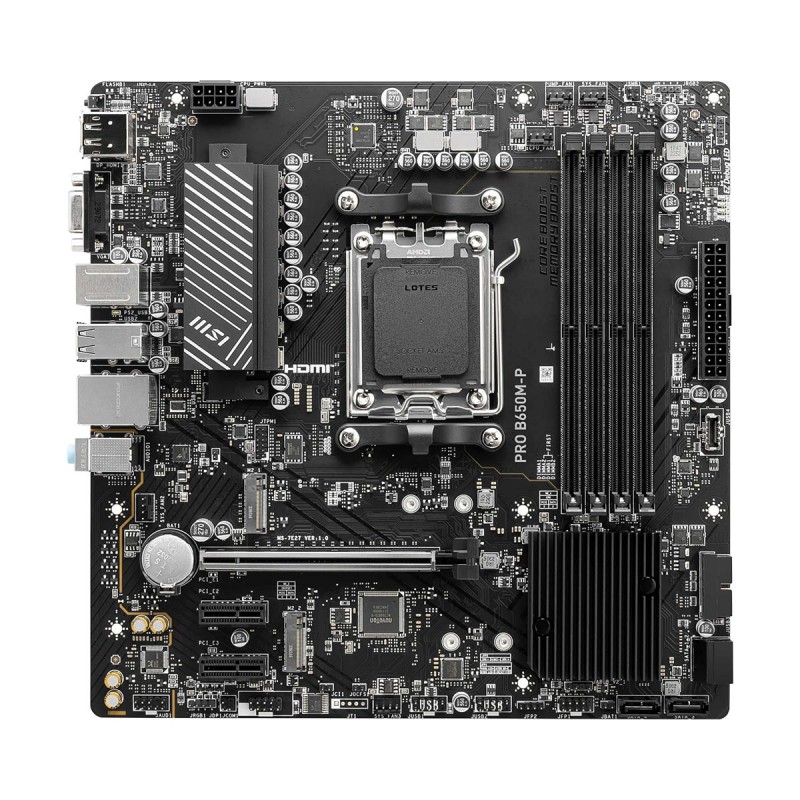

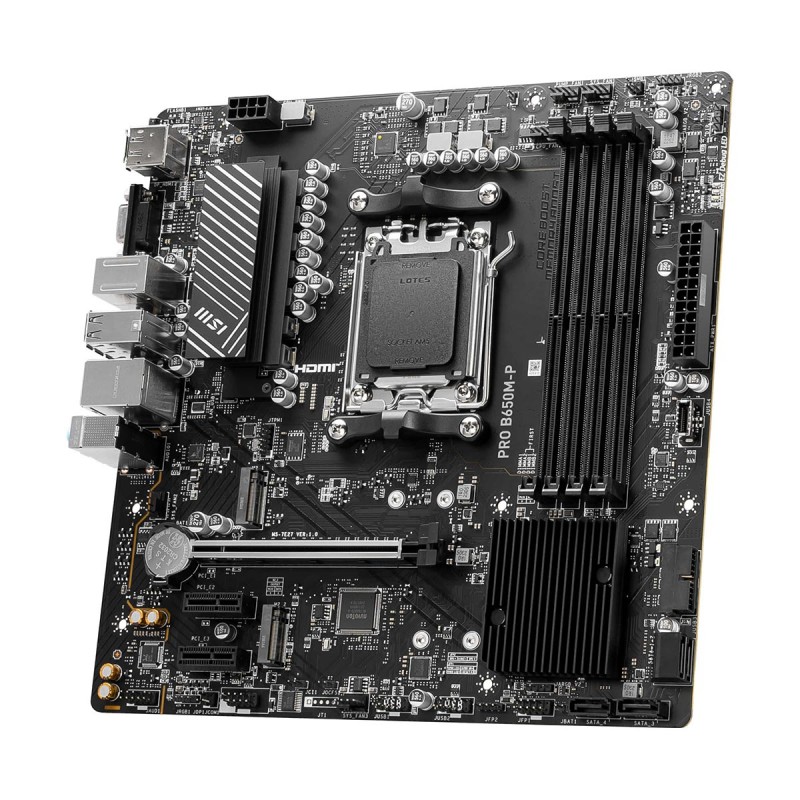

MSI PRO B650M-P, AMD B650 Chipset, Socket AM5, Micro ATX Desktop Motherboard
