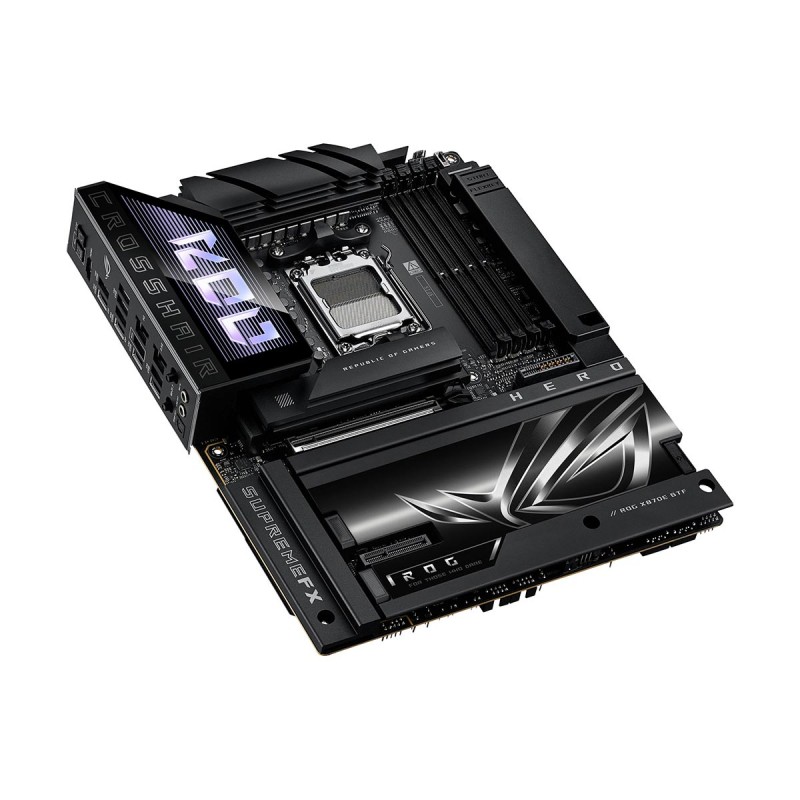

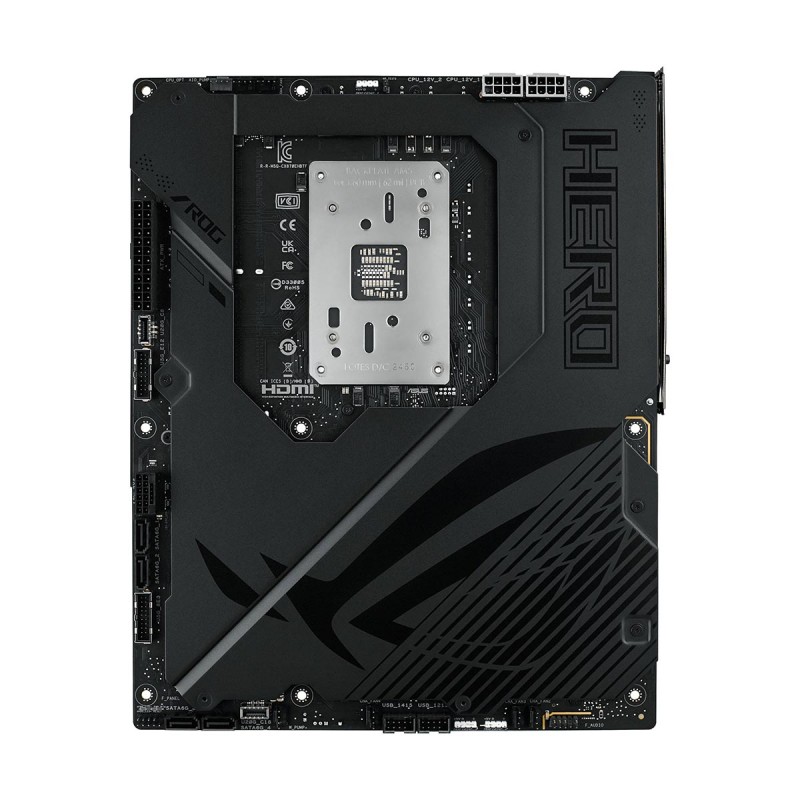

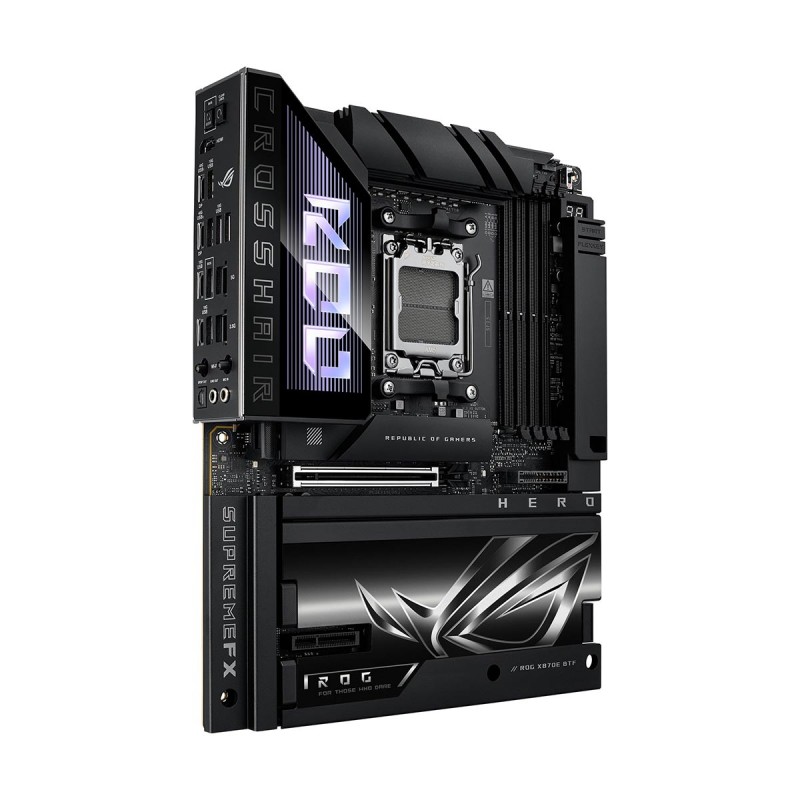

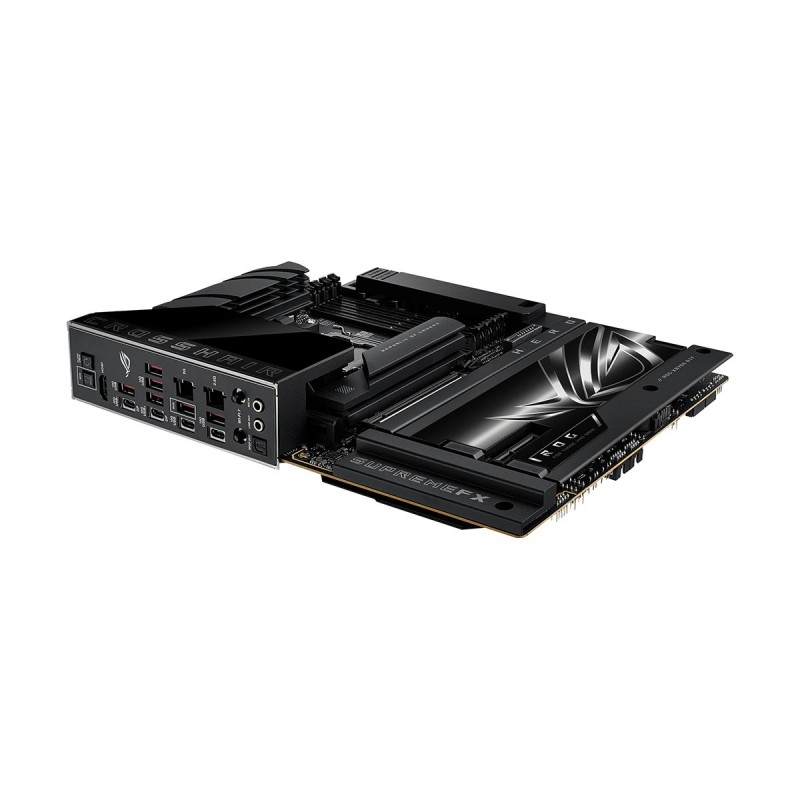

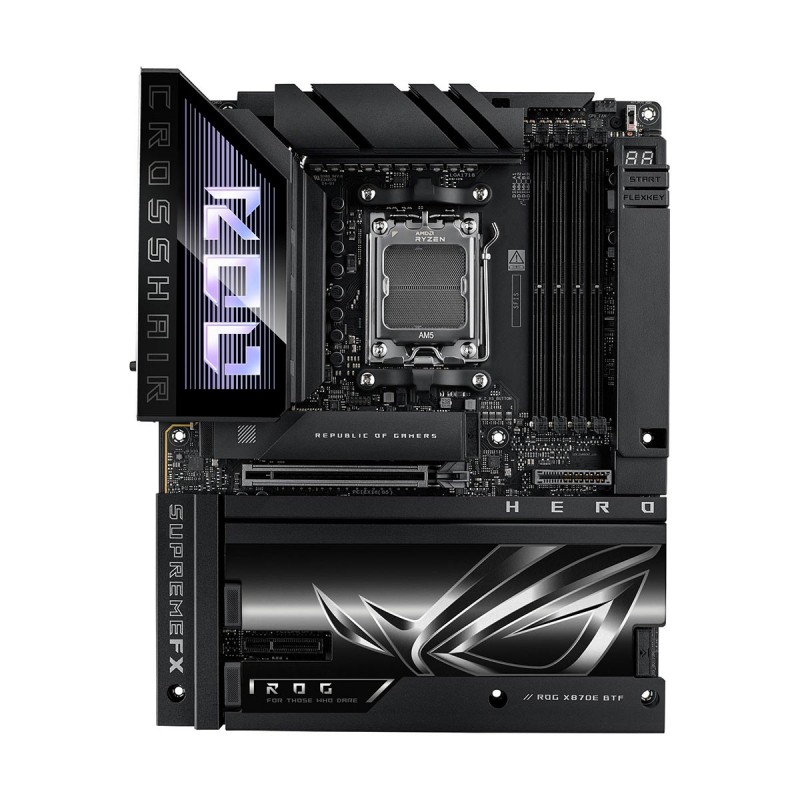

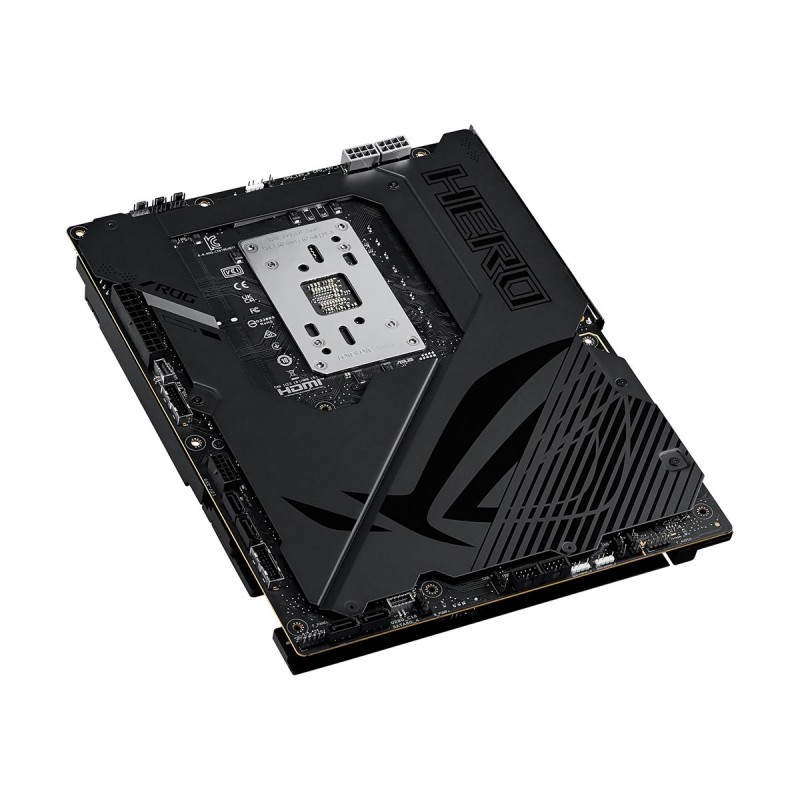

The ROG Crosshair X870E Hero BTF features hidden connectors for motherboard and GPU power, USB, and fan cables, delivering an ultra-clean look for your AMD Ryzen 9000 build. It pairs robust power delivery with ASUS-exclusive AI-enhanced tuning, PCIe 5.0, and DDR5 slots with NitroPath DRAM Technology for advanced memory performance. Plus, Polymo Lighting II adds striking visual flair to your rig. With the combination of a BTF graphics card, motherboard and chassis, you can enjoy a full hidden-connector experience. This Advanced BTF approach is achieved through the new graphics card high-power slot available on BTF motherboards, which can deliver up to 600 watts to BTF graphics cards. With a full set of BTF components, builders can eliminate visible cables for an extra-clean aesthetic.

CPU	AMD Socket AM5 Supports AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors (Refer to www.asus.com for CPU support list.)
Chipset	AMD X870E
Memory	4 x DIMM slots, max. 256GB, DDR5 Supports up to 8200+MT/s(OC) with Ryzen 9000 Series Processors, 8600+MT/s(OC) with Ryzen 8000 Series Processors 8000+MT/s(OC) with Ryzen 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) Supports DIMM Fit and DIMM Fit Pro NitroPath DRAM Technology ASUS Enhanced Memory Profile (AEMP)
Onboard Graphics	Integrated Graphics Processor: 1 x HDMI port Supports 4K@60Hz as specified in HDMI 2.1. 2 x USB4 (40Gbps) ports support USB Type-C display outputs Supports max. 4K@60Hz as specified in DisplayPort 1.4a
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 Impedance sense for front and rear headphone outputs Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking High quality 120 dB SNR stereo playback output and 110 dB SNR recording input Supports up to 32-Bit/384 kHz playback on front panel A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. Audio Features SupremeFX Shielding Technology ESS ES9219 QUAD DAC Gold-plated audio jacks Rear optical S/PDIF out port Premium audio capacitors
LAN	1 x Intel 2.5Gb Ethernet ASUS LanGuard 1 x Realtek 5Gb Ethernet ASUS LanGuard
Wireless Communication Module	Wi-Fi 7 (MediaTek MT7927) 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth Bluetooth v5.4
Expansion Slots	AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x4/x4 modes) When M.2_2 is enabled, PCIEX16_1 will run x8 mode, and M.2_3 will run x4. AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors 1 x PCIe 4.0 x16 slots with Q-Release Slim (Total bandwidth for x8) AMD Ryzen 8500 & 8300 Series Desktop Processors 1 x PCIe 4.0 x16 slot with Q-Release Slim (Total bandwidth for x4) AMD X870E Chipset 1 x PCIe 4.0 x4 slot
Storage Interface	Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) When M.2_2 is enabled, PCIEX16_1 will run x8 mode, and M.2_3 will run x4. M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (Not supports) M.2_3 slot (Key M), type 2242/2260/2280 (Not supports) AMD X870E Chipset M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
USB	Rear USB (Total 10 ports) 2 x USB4 (40Gbps) ports (2 x USB Type-C) 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C) Front USB (Total 10 ports) 2 x USB 20Gbps connector (supports USB Type-C) USB Type-C power delivery output: max. 5V/3A 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Internal I/O Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector 1 x Graphics card high power slot 1 x 12V-2X6 Auxiliary power connector Storage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 20Gbps connectors (support USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Alteration PCIe mode switch 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header

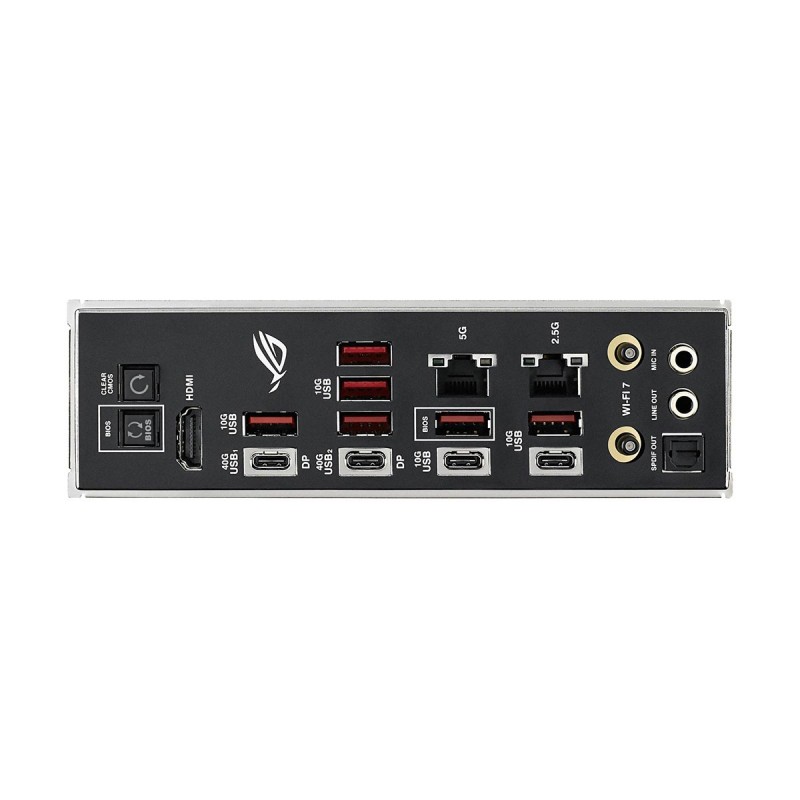

Back Panel Connectors	2 x USB4 (40Gbps) ports (2 x USB Type-C) 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C) 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet port 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button
I/O Controller	Not Specified
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control
BIOS	256 Mb Flash ROM UEFI AMI BIOS
Unique Features	Extreme OC Kit FlexKey button Start button Extreme Engine Digi+ 10K Black metallic capacitors MicroFine alloy choke ASUS Q-Design M.2 Q-Latch M.2 Q-Release M.2 Q-Slide Q-Release Slim (with PCIe SafeSlot) Q-Antenna Q-Code Q-Connector Q-Dashboard Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) Q-Slot ASUS Thermal Solution M.2 heatsink backplate M.2 heatsink VRM heatsink design Metal backplate ASUS EZ DIY Backplate BIOS FlashBack button Clear CMOS button ProCool II Pre-mounted I/O shield SafeSlot SafeDIMM Aura Sync Addressable Gen2 header(s)
Bundled Software	ROG Exclusive Software ROG CPU-Z Dolby Atmos Internet Security (1-year full version) Polymo Lighting II Armoury Crate AIDA64 Extreme (1 year full version) Aura Creator Aura Sync Fan Xpert 4 (with AI Cooling II) GameFirst HWiNFO ASUS AI Advisor ASUS DriverHub ASUS GlideX TurboV Core WinRAR (40 Days Free Trial) Adobe Creative Cloud (Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash ASUS UEFI BIOS EZ Mode ASUS MyHotkey FlexKey
Operating System	Support for Windows 11
Form Factor	ATX Form Factor 30.5cm x 24.4cm

Manufacturer
Manufacturer's Website	Link *
Product Website	Link *
Warranty Information
Warranty Duration	3 Years

* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating Bad Good

ASUS ROG CROSSHAIR X870E HERO BTF with Wi-Fi, AMD X870E Chipset, Socket AM5, Reverse ATX Desktop Motherboard

- Socket Socket AM5, AMD X870E Chipset
- Supports Ryzen 7000 / 8000 / 9000 Series Processors
- 4 x DDR5 DIMM Slots, up to 256GB, DDR5-8600+
- 1 x PCIe 5.0 x16 Slot
- 1 x PCIe 4.0 x4 Slot
- 3 x M.2 PCIe 5.0 NVMe Slots
- 2 x M.2 PCIe 4.0 NVMe Slots
- 4 x SATA 3.0 Ports, Supports RAID 0 / 1 / 5 / 10
- 5Gbps LAN, 2.5Gbps LAN, Wi-Fi 7 & Bluetooth 5.4
- 1 x HDMI 2.1, 2 x USB Type-C DisplayPort 1.4a
- 2 x USB Type-C 40Gb/s, 2 x Rear USB Type-C 10Gb/s
- 6 x Rear USB Type-A 10Gb/s
- 2 x Rear Audio Jacks, 1 x S/PDIF Out
- BIOS Flashback: Update BIOS without CPU / RAM / GPU
- ASUS M.2 Q-Release, M.2 Q-Slide & M.2 Q-Latch
- ASUS PCIe Slot Q-Release Slim
- ASUS Q-LED & Q-Code for Boot Diagnostics
- Q-Antenna Quick-Release Wi-Fi Antenna
- Integrated RGB & 3 x ARGB Gen2 Headers
- Form Factor: BTF ATX with Reverse Connector Design
- 3 Year Warranty

Product Code: ROGCROSSHAIRX870EHEROBTF
