X marks the 14th generation! Introducing the AORUS Z790 X Gen Motherboards, the most powerful platforms ever built for the Intel Core 14th Gen processors. With the leading performance in DDR5 memory, the upgraded DIY-friendly innovations, and the all-new BIOS redesigned as user-centered, the AORUS Z790 X Gen Motherboards are built to fully unleash the next-gen power. GIGABYTE is committed to enabling the unparalleled performance of the Intel Core 14th Gen processors. That is why every Z790 AORUS MASTER X motherboard is engineered with industry-leading technologies to achieve the best-in-class DDR5 performance on the market. One click to auto boost your DDR5 module by the highest profile. One click to boost native DDR5-5600 to 6000. The Z790 AORUS XTREME X motherboard is equipped with the all-digital power design to achieve peak performance of the next-gen processor while providing the best stability under heavy workloads. Building your own PC is meant to be joyful and effortless. Now we introduce a variety of innovations to make the Z790 AORUS XTREME X motherboard the most DIY-friendly ever. Effortless mechanisms that enable easy installations of components. The Z790 AORUS XTREME X motherboard offers a wide range of versatilities from the cutting-edge Wi-Fi 7 support with a redesigned antenna, to an array of USB ports.

CPU
  • LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
  • L3 cache varies with CPU
Chipset
  • Intel Z790 Express Chipset
Memory
  • Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
  • 4 x DDR DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support

  • 2 x Intel Thunderbolt 4 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120x2880@60 Hz with 24 bpp (via single display output)
    * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt  devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.)
    * Support for DisplayPort 1.4 version and HDCP 2.3
Audio

1 ESS ES9280AC DAC chip + 2 ESS ES9080 chips

  • DTS Sound Unbound
  • High Definition Audio
  • 2-channel
  • Support for S/PDIF Out
    * The line out jack and the optical S/PDIF out connector can only be used one at a time.
LAN

Marvell AQtion AQC107 10GbE LAN chip

  • 10 Gbps / 5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps

Intel 2.5GbE LAN chip

  • 2.5 Gbps / 1 Gbps / 100 Mbps
Wireless Communication Module

Qualcomm Wi-Fi 7 QCNCM865

  • 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.3
  • Support for 11be 320MHz wireless standard
Expansion Slots

CPU:

  • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
    * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector.
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

  • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Multi-Graphics TechnologyN/A
Storage Interface

CPU:

  • 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
  • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

  • 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
  • 1 x M.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
  • 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

Chipset+Intel Thunderbolt 4 Controller:

  • 2 x USB Type-C ports on the back panel, with USB 3.2 Gen 2 support

Chipset:

  • 2 x USB Type-C ports with USB 3.2 Gen 2x2 support, available through the internal USB header
  • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+2 USB 3.2 Gen 2 Hubs:

  • 8 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+USB 3.2 Gen 1 Hub:

  • 4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+2 USB 2.0 Hubs:

  • 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 2 x 8-pin ATX 12V power connectors
  • 1 x CPU fan header
  • 1 x CPU fan/water cooling pump header
  • 1 x system fan header
  • 1 x system fan extension cable header (can extend three system fan headers through one cable)
  • 1 x system fan/water cooling pump extension cable header (can extend three system fan/water cooling pump headers through one cable)
  • 1 x noise detection header
  • 1 x integrated extension cable header for addressable RGB Gen2 LED strips and RGB LED strips (can extend three addressable RGB Gen2 LED strip headers and three RGB LED strip headers through one cable)
  • 4 x SATA 6Gb/s connectors
  • 5 x M.2 Socket 3 connectors
  • 1 x front panel header
  • 2 x USB Type-C headers, with USB 3.2 Gen 2x2 support
  • 2 x USB 3.2 Gen 1 headers
  • 1 x integrated extension cable header for system fan/water cooling pump and USB 2.0/1.1 headers (can extend one system fan/water cooling pump header and two USB 2.0/1.1 headers through one cable)
  • 2 x temperature sensor headers
  • 1 x power button
  • 1 x reset button
  • 1 x Clear CMOS button
Back Panel Connectors
  • 1 x Q-Flash Plus button
  • 1 x OC Ignition button
  • 2 x SMA antenna connectors (2T2R)
  • 2 x Thunderbolt 4 connectors (USB Type-C ports, with USB 3.2 Gen 2 support)
  • 10 x USB 3.2 Gen 2 Type-A ports (red)
  • 2 x RJ-45 ports
  • 1 x optical S/PDIF Out connector
  • 2 x audio jacks
  • * The mic in jack supports only mono microphone input
I/O Controller
  • iTE I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • Noise detection
BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • Support for Q-Flash
  • Support for Q-Flash Plus
  • Support for Smart Backup
Bundled Software
  • Norton Internet Security (OEM version)
  • LAN bandwidth management software
Operating System
  • Support for Windows 11 64-bit
Form Factor
  • E-ATX Form Factor, 30.5cm x 28.5cm

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty DurationLimited Lifetime
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

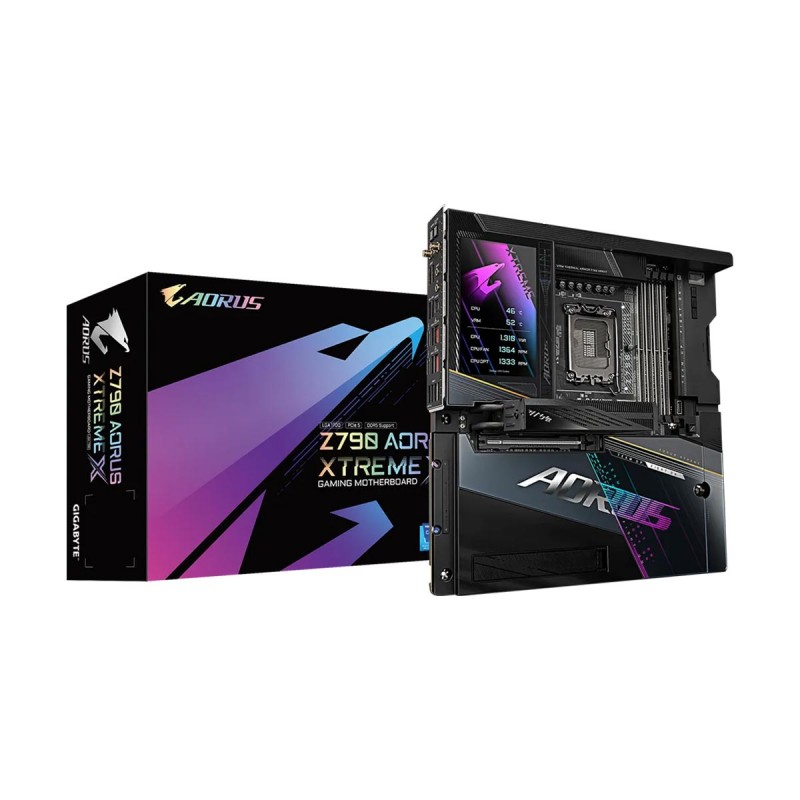

Gigabyte Z790 AORUS XTREME X with Wi-Fi, Intel Z790 Chipset, LGA1700, DDR5, E-ATX Desktop Motherboard

- Socket LGA1700, Intel Z790 Chipset
- Supports 12th, 13th and 14th Gen Processors
- 4 x DDR5 DIMM Slots, Up To 192GB, DDR5-8000 (OC)
- 1 x PCIe 5.0 x16 Slot
- 1 x PCIe 4.0 x16 Slot (x4 Electrical)
- 1 x PCIe 3.0 x16 Slot (x1 Electrical)
- 1 x M.2 PCIe 5.0 NVMe Slot, 4 x M.2 PCIe 4.0 NVMe Slots
- 4 x SATA 3.0 Ports with RAID 0/1/5/10
- 10Gbps + 2.5Gbps LAN + Wi-Fi 7
- 2 x Thunderbolt 4.0, 10 x USB Type-A 10Gb/s
- 3 Year Warranty
