Images are for reference purposes only and product appearances/colours may vary.

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel Core Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal. ASUS Enhanced Memory Profile II (AEMP II) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module’s ability to train the memory chips on your kit, and it presents an optimized clock speed that can effortlessly unleash performance. The PRIME B760 motherboard offers a total of two M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.

CPU
  • Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
  • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
  • Intel B760 Express Chipset
Memory
  • 4 x DIMM slots, Max. 192GB, DDR5 7200+(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800MHz Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports Intel Extreme Memory Profile (XMP)
  • OptiMem II
    * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

  • 1 x DisplayPort
    * Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  • 2 x HDMI ports
    * Supports 4K@60Hz as specified in HDMI 2.1.
Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
  • Audio Features
    Audio Shielding
    Premium audio capacitors
    Dedicated audio PCB layers
    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
LAN

1 x Realtek 2.5Gb Ethernet

Wireless Communication Module

Wi-Fi 6

  • 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  • Supports 2.4/5GHz frequency band
  • Bluetooth v5.2
Expansion Slots

CPU:

  • 1 x PCIe 4.0 x16 slot

Intel B760 Chipset:

  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
  • 1 x PCIe 4.0 x16 slot (supports x1 mode)
Multi-Graphics Technology
  • N/A
Storage Interface

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

CPU:

  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Intel B760 Chipset

  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
    * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
USB

Rear USB (Total 6 ports)

  • 2 x USB 3.2 Gen 2 ports (2 x Type-A )
  • 4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 10 ports)

  • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • 1 x USB 2.0 header supports 1 additional USB 2.0 port
Internal I/O Connectors

Fan and Cooling related

  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 2 x 4-pin Chassis Fan headers

Power related

  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector

Storage related

  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports

USB

  • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • 1 x USB 2.0 header supports 1 additional USB 2.0 port

Miscellaneous

  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x LPT header
  • 1 x S/PDIF Out header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
Back Panel Connectors
  • 2 x USB 3.2 Gen 2 ports (2 x Type-A )
  • 4 x USB 2.0 ports (4 x Type-A)
  • 1 x DisplayPort
  • 2 x HDMI ports
  • 1 x Wi-Fi Module
  • 1 x Realtek 2.5Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 Keyboard/Mouse combo port
I/O Controller
  • Not Specified
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Fan fail warning
  • Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  • 128 Mb Flash ROM, UEFI AMI BIOS
Unique Features

ASUS 5X PROTECTION III

  • DIGI+ VRM
  • LANGuard
  • Overvoltage Protection
  • SafeSlot Core+
  • Stainless-Steel Back I/O

ASUS Q-Design

  • Q-DIMM
  • Q-LED Core
  • Q-Slot

ASUS Thermal Solution

  • M.2 heatsink
  • VRM heatsink design

ASUS EZ DIY

  • ProCool

Aura Sync

  • Aura RGB header
  • Addressable Gen 2 headers
Bundled Software

ASUS Exclusive Software

Armoury Crate

  • Aura Creator
  • Aura Sync
  • Fan Xpert 2+
  • Power Saving

AI Suite 3

  • DIGI+ VRM
  • PC Cleaner

ASUS CPU-Z

Norton 360 Deluxe (60 Days Free Trial)

WinRAR

UEFI BIOS

ASUS EZ DIY

  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode
Operating System
  • Support for Windows 10/11 64-bit
Form Factor
  • Micro ATX Form Factor, 24.4cm x 24.4cm

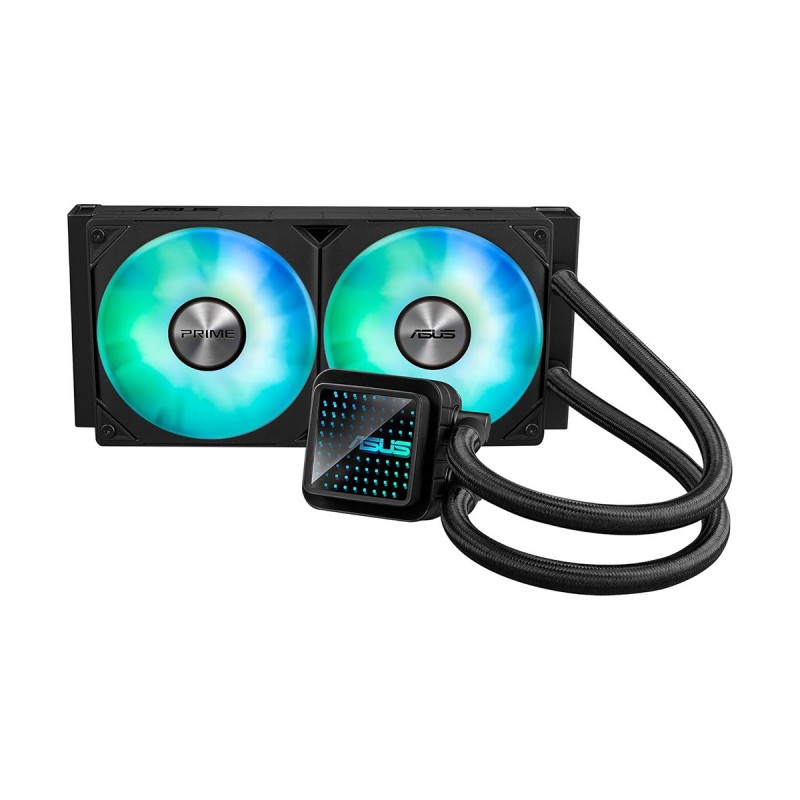

Combining cooling performance, easy installation, and aesthetics all in one. The Prime LC 240 ARGB features a specially designed CPU contact area that can effectively cool the CPU and provide stable performance. At the same time, it comes with pre-installed ARGB fans that optimize the user's PC DIY experience. A single cable connects the lighting and fans, making cable management much easier. The customizable infinity mirror lenses in the water block give the PC build more versatility, empowering you to create diverse styles. Customizable infinity mirror lenses let users personalize the aesthetics of their PC build. The reflective surfaces and layered design produce captivating visual depth when the ARGB lighting is activated. These pre-installed ARGB fans on the Prime LC 240 ARGB streamline the installation process. With just a single Y-cable, users can connect both the ARGB lighting and the fans, simplifying cable management. These ARGB fans provide a clean and organized appearance and also deliver strong and stable airflow, further enhancing the cooling capabilities of your system.

SKUPrime LC 240 ARGB
Cold Plate MaterialCopper
Radiator MaterialAluminium
PWMYes
LightingARGB
Radiator Dimensions277mm x 120mm x 27mm
Fan Dimensions120mm x 25mm
Fan Speed600 - 2200 RPM ±10%
Number of Fans2
Cooling Socket SupportIntel: LGA1851, LGA1700, LGA1200, LGA115x
AMD: AM5, AM4
Radiator Size240mm
Fan ModelPRIME LC 24025 Integrated Fan
Fan Airflow75.70 CFM
Fan Static Pressure3.20 mm-H2O
Noise Level34 dB(A)
Warranty6 Years
Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteMotherboard: Link *
AIO Cooler: Link *
Warranty Information
Warranty DurationMotherboard: 3 Years
AIO Cooler: 6 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

ASUS PRIME B760M-A WIFI, Intel B760 Chipset, LGA1700, DDR5, Micro ATX Desktop Motherboard + ASUS PRIME LC 240 ARGB AIO Liquid Cooler, 240mm — Black

- Socket LGA1700, Intel B760 Chipset
- Supports 12th, 13th and 14th Gen Intel Processors
- 4 x DDR5 DIMM Slots, up to 192GB, DDR5-7200+ (OC)
- 1 x PCIe 4.0 x16 Slot
- 1 x PCIe 4.0 x16 Slot (x4 Electrical)
- 1 x PCIe 4.0 x16 Slot (x1 Electical)
- 2 x M.2 PCIe 4.0 NVMe Slots
- 4 x SATA Ports with RAID 0/1/5/10
- 2.5Gbps LAN, Wi-Fi 6 & Bluetooth 5.2
- 1 x DisplayPort 1.4, 2 x HDMI 2.1
- 2 x Rear USB Type-A 10Gb/s
- 4 x Rear USB 2.0/1.1
- 1 x PS/2 Keyboard/Mouse Port
- 3 x Rear Audio Jacks
- ASUS Q-LED Core for Boot Diagnostics
- 3 x ARGB Gen2 Headers
- Form Factor: Micro-ATX
- 3 Year Warranty

- 240mm AIO Liquid Cooler with RGB Lighting
- 2 x PRIME LC 36025 Daisy-Chainable ARGB Fans
- Fan Speed: 600 - 2200 RPM ±10%
- Airflow: Up to 75.70 CFM
- Static Pressure: Up to 4.30 mm-H2O
- Noise: Up to 34 dBA
- Customizable Infinity Mirror Lenses
- Copper Cold Plate
- 400mm Braided Tubes
- AMD Mounting: AM4, AM5
- Intel Mounting: LGA1851, 1700, 1200, 115x
- 6 Year Warranty
