Images are for reference purposes only and product appearances/colours may vary.

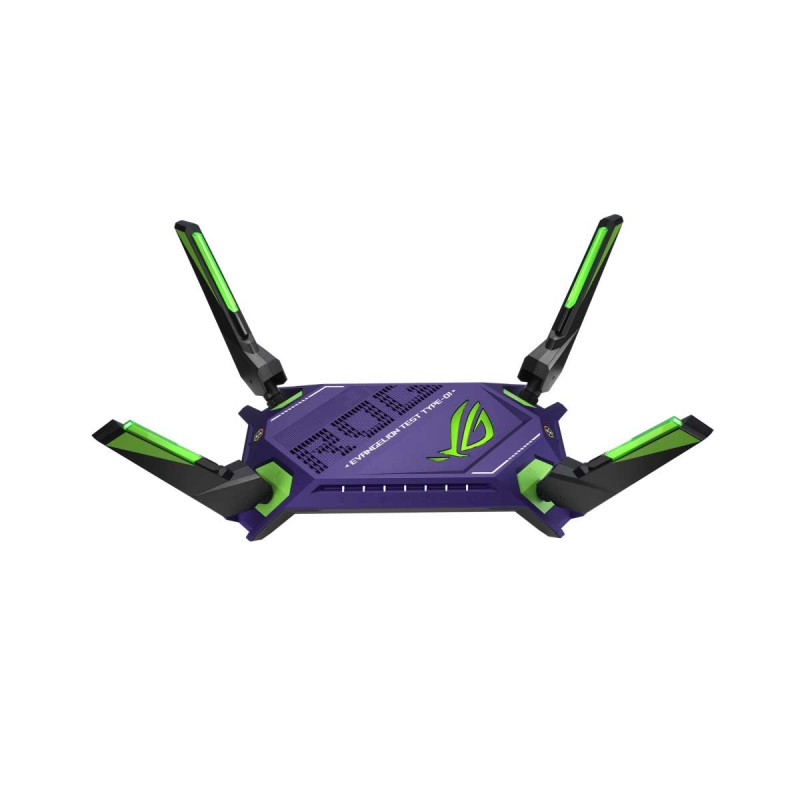

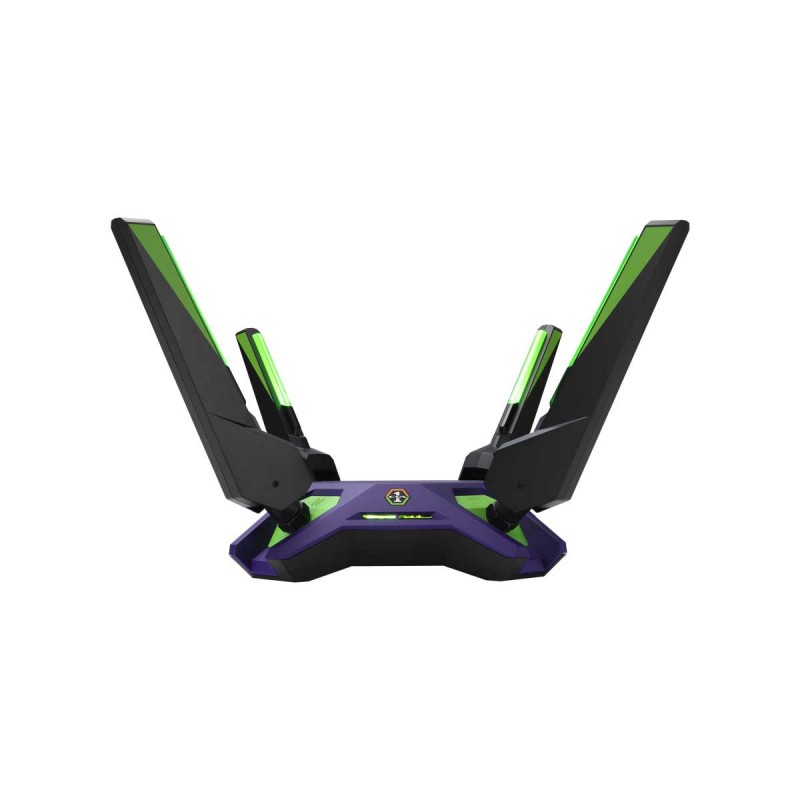

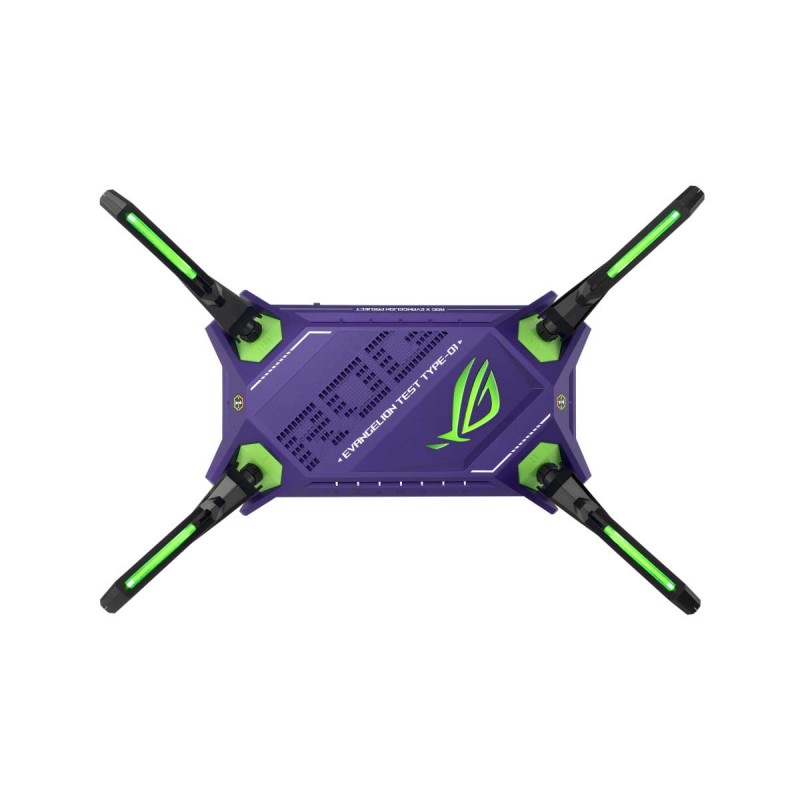

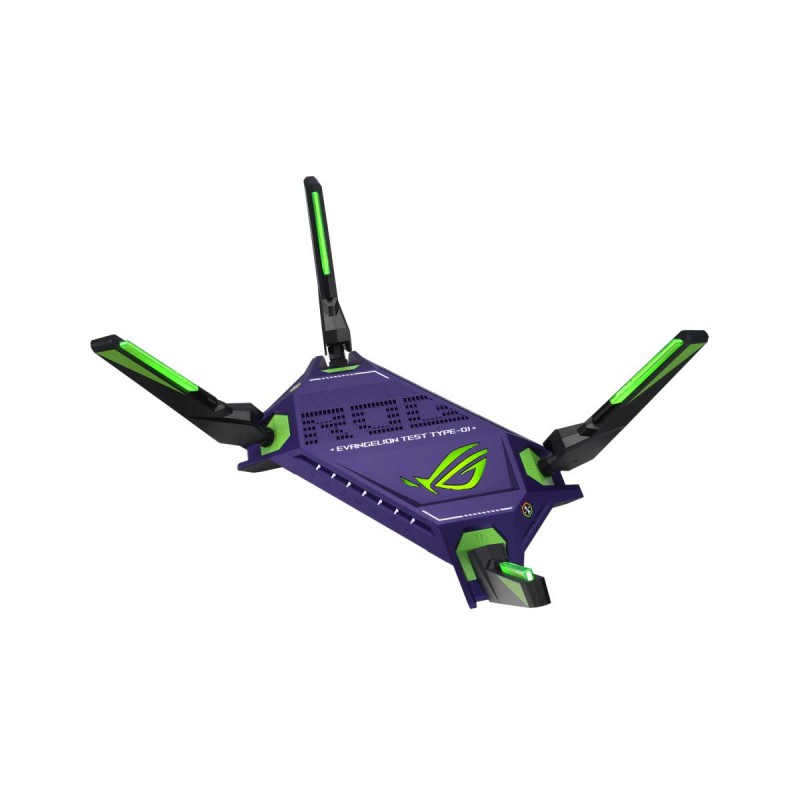

It’s 2022. The Republic of Gamers is launching new equipment for the EVANGELION project. The ROG Rapture GT-AX6000 EVA Edition features cutting-edge wireless technology, antennas styled like the EVA-01's shoulder plates, and a control app with a UI design fashioned after a visible A.T. Field. GT-AX6000 has dual 2.5 Gbps Ethernet ports that support link aggregation and load balancing, giving you the flexibility to give massive bandwidth to connected devices or take advantage of ultra-high-speed internet connections. GT-AX6000 is the world's first router powered by a 2.0 GHz quad-core 64-bit CPU, giving it the performance to handle even the most demanding gaming network. It delivers maximum network throughput for lightning-fast, accelerating data transfers and optimizing your gaming experience. The latest Broadcom chipset in GT-AX6000 includes exclusive upgraded features, including TX Shaper to extend overall coverage and TDCS to improve performance on the 80 MHz channels with WiFi 6 devices. In addition, with optimized antenna design and the Broadcom Air-IQ interference-detection technology, GT-AX6000 provides a cleaner WiFi environment, with DFS to ensure optimal channel selection.
| Model | GT-AX6000 EVA Edition |
| Wireless Standard | IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax |
| Maximum Speed | 2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps 5GHz AX: 5GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps |
| Connectivity | 4 x 1 Gbit RJ45 Ethernet Port 1 x 2.5 Gbit RJ45 WAN/LAN Port 1 x 2.5 Gbit RJ45 WAN Port 1 x USB 3.2 Gen 1 Port |
| WPS | Yes |
| Security | WPA / WPA2 / WPA3-Personal, WPA / WPA2-Enterprise, WPS |
| Antennas | 4 x external, foldable |
| Warranty | 3 Years |
Detailed Information
| Model Name | GT-AX6000 EVA Edition |
| AX Technology | Yes |
| Data Rate | 2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps 5GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps |
| Antenna | External antenna x 4 |
| Processor | 2.0 GHz quad-core processor |
| Memory | 256 MB Flash 1 GB RAM |
| Boosts Speed | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth |
| Operating Frequency | 2.4 GHz / 5 GHz |
| Ports | 1 x RJ45 for 2.5 Gigabits BaseT for WAN/LAN 1 x RJ45 for 2.5 Gigabits BaseT for LAN 4 x RJ45 for Gigabits BaseT for LAN 1 x USB 3.2 Gen 1 1 x USB 2.0 |
| Buttons | WPS Button Reset Button Power Button LED Control Button |
| LED Indicators | 1 x Power 1 x 2.4GHz 1 x 5GHz 1 x 2.5G WAN 1 x 2.5G LAN 1 x LAN 1 x WPS |
| Power Supply | AC Input: 110v-240v (50-60Hz) DC Output: 19v with max. 2.37A current or 19.5v with max 2.31A current |
| Package Contents | GT-AX6000 WiFi 6 Dual-Band Gaming Router RJ-45 cable Power Adapter Quick Start Guide Warranty Card |
| Product Weight | 1121.4 g |
| AiMesh | AiMesh Primary AiMesh router AiMesh node |
| Router APP | ASUS Router APP |
| Game | Game Boost / Acceleration ROG_First OpenNAT (Game Profile) Gaming port |
| AiProtection | AiProtection Pro Router Security Assessment Malicious site blocking Two-Way IPS Infected Device Prevention and Blocking |
| Parental Control | Parental Control Parental Control Customized Internet schedule |
| Traffic Control | Adaptive QoS Bandwidth Monitor Bandwidth limiter Maximum Bandwidth limiter rule : 32 Traditional QoS Maximum Traditional QoS rule : 32 Traffic Monitor Real-time traffic monitor Wired Traffic Monitor Wireless Traffic Monitor Traffic Analyzer Traffic analysis period : Daily, Weekly, Monthly Website history |
| Wireless | IPv6 MU-MIMO Wi-Fi Encryption : Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise UTF-8 SSID Guest Network Maximum Guest Network rule : 2.4GHz x3, 5GHz x3 Guest Network Connection time limit WPS WiFi MAC address filter Maximum MAC filters : 64 Wireless scheduler Airtime fairness RADIUS Client Universal beamforming Explicit beamforming |
| WAN | Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP |
| LAN | DHCP Server IGMP snooping IPTV LAN Link Aggregation Manually assign IP address Maximum manually assign IP address rule : 64 |
| VPN | VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Server IPSec VPN Server OVPN VPN Server PPTP VPN Fusion |
| USB Application | File System : HFS+, NTFS, vFAT, ext2, ext3, ext4 HDD hibernation Safely Remove disk AiCloud Download master AiDisk Media Server Time Machine Samba Server FTP Server Shared Folder privileges |
| Administration | Operating mode : Accesspoint, AiMeshnode, Mediabridge, Repeater, Router Operating system : ASUSWRT Free OS upgrade Firewall Maximum Firewall keyword filter : 64 Maximum Firewall network service filter : 32 Maximum Firewall URL filter : 64 SSH Configuration backup and restore Diagnosis tools Feedback system System log |
| Manufacturer | |
| Manufacturer's Website | Link * |
| Product Website | Link * |
| Warranty Information | |
| Warranty Duration | 3 Years |
ASUS ROG Rapture GT-AX6000 EVA Edition Wi-Fi 6 (802.11ax) Dual Band Mesh-Enabled Wireless Router
- Product Code: 90IG0780-MO3B10
- Availability:
Out Of Stock
