The ZenWiFi XD5 system consists of up to three ASUS AX3000 WiFi 6 routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections — inside or outside your home! ZenWiFi XD5 puts your WiFi into top gear! With a total bandwidth of up to of 3000 Mbps, it's up to 3X faster than WiFi 5 routers. The ASUS ZenWiFi XD5 supports high-speed 160MHz bandwidth. It dramatically increases network capacity while reducing congestion, delivering higher performance for every WiFi 6 device. Uniquely, ZenWiFi lets you choose how you name your WiFi networks: a single name for everything, or separate names for each frequency band. The choice is yours! AiProtection Classic with Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that's happening on your network via the mobile app. ZenWiFi XD5 works perfectly with smart-home services — including Alexa skills — and is available in charcoal or white to suit your décor. Comes with mounting holes and a screw pack. Hang it on the wall or place it anywhere, the choice is yours! Even non-experts can quickly set up AiMesh technology, while more experienced users will appreciate the comprehensive advanced networking features.
| Model | ZenWiFi XD5 (W-1-PK) |
| Wireless Standard | IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax |
| Maximum Speed | 802.11a: Up to 54 Mbps 802.11b: Up to 11 Mbps 802.11g: Up to 54 Mbps 802.11n: Up to 300 Mbps 802.11ac: Up to 867 Mbps 802.11ax (2.4GHz): Up to 574 Mbps 802.11ax (5GHz): Up to 2402 Mbps 802.11ax (5GHz): Up to 1300 Mbps |
| Connectivity | 1 x 100/1000 RJ45 WAN/LAN Port 1 x 100/1000 RJ45 LAN Port |
| WPS | Yes |
| Security | WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS Support |
| Antennas | 2 x internal |
| Warranty | 3 Years |
Detailed Information
| Model Name | XD5 (W-1-PK) |
| Network Standard | IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) IPv4 IPv6 |
| Product Segment | AX3000 Ultimate AX Performance: 2402 Mbps + 574 Mbps |
| AX Technology | Yes |
| Data Rate | 802.11a: Up to 54 Mbps 802.11b: Up to 11 Mbps 802.11g: Up to 54 Mbps WiFi 4 (802.11n): Up to 300 Mbps WiFi 5 (802.11ac): Up to 867 Mbps WiFi 6 (802.11ax (2.4GHz): Up to 574 Mbps WiFi 6 (802.11ax) (5GHz): Up to 2402 Mbps WiFi 6 (802.11ax) (5GHz): Up to 1300 Mbps |
| Antenna | Internal Dual-Band Antenna x 2 |
| Transmit/Receive | 2.4GHz 2x2 5GHz 2x2 |
| Processor | 1.7 GHz Quad-Core Processor |
| Memory | 128 MB Flash 512 MB RAM |
| Boosts Speed | MIMO Technology |
| Operating Frequency | 2.4 GHz / 5 GHz |
| Ports | RJ45 for Gigabit BaseT for WAN/LAN x 1 RJ45 for Gigabit BaseT for LAN x 1 |
| Buttons | WPS Button Reset Button |
| LED Indicators | Power LED |
| Power Supply | AC Input: 110v-240v, 50-60Hz DC Output: 12v with max 1.5A current |
| Package Contents | ZenWiFi XD5 RJ45 Ethernet Cable Power Adapter Quick Start Guide Warranty Card Screw Pack |
| Product Weight (Each) | 307g |
| AiMesh | AiMesh Primary AiMesh Router AiMesh Node |
| Router App | ASUS Router App |
| Alexa | Supports Alexa Skill |
| AiProtection | AiProtection Classic Malicious Site Blocking Infected Device Prevention and Blocking |
| Parental Controls | Parental Control Parental Control Customized Internet Schedule |
| Traffic Controls | Bandwidth Monitor Bandwidth Limiter Traditional QoS Real-Time Traffic Monitor Wired Traffic Monitor Wireless Traffic Monitor |
| Wireless | IPv6 Wi-Fi Encryption: WPA3-Personal, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS support UTF-8 SSID Guest Network Guest Network Connection Time Limit WPS |
| WAN | Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP Android Tethering Port Forwarding Port Triggering DMZ DDNS NAT Passthrough : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP Let's Encrypt Safe Browsing |
| LAN | DHCP Server IGMP Snoooping IPTV Manually Assign IP Addresses |
| VPN | Instant Guard VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server OVPN VPN Server PPTP VPN Fusion VPN Server WireGuard |
| Administration | Operating system : ASUSWRT Free OS upgrade Firewall Maximum Firewall keyword filter : 64 Maximum Firewall network service filter : 32 Maximum Firewall URL filter : 64 Wake on LAN (WOL) SSH Configuration backup and restore Diagnosis tools Feedback system System log Security Scan |
| Manufacturer | |
| Manufacturer's Website | Link * |
| Product Website | Link * |
| Warranty Information | |
| Warranty Duration | 3 Years |

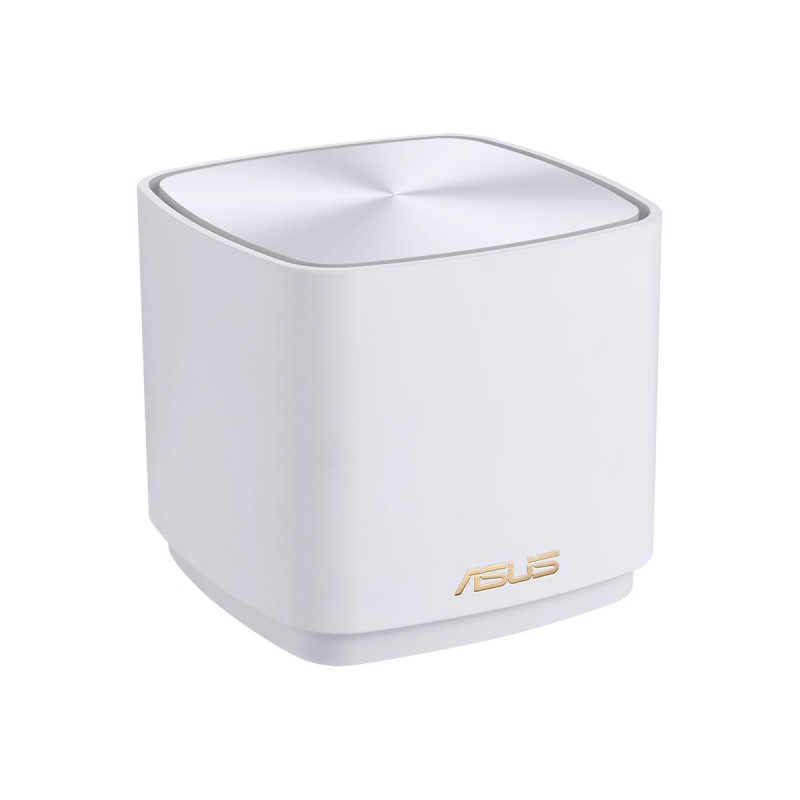

ASUS ZenWiFi XD5 AX3000 Wi-Fi 6 (802.11ax) Dual Band Mesh-Enabled Wireless Router, White — Single Pack
- Product Code: 90IG0750-MO3B60
- Availability:
Out Of Stock
Lead Times:
- In Stock with Progenix: Ready for collection/dispatch once payment clears. The cut-off for same-day dispatch is 12:00pm on business days.
- In Stock with Supplier: 1-3 business days until dispatched or ready for collection
- Out Of Stock: Contact us to see if this item will be restocked.
