The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs. Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch. Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.

CPU	AMD AM4 Socket Supports AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Chipset	AMD B450
Memory	2 x DIMM, Max. 64GB DDR4 4400(O.C) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz Un-buffered Memory Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU
Onboard Graphics	1 x HDMI port Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors 1 x DVI-D Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors 1 x DVI-D Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors
Audio	Realtek ALC887/897 7.1-Channel High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Choose the chassis with HD audio module in front panel to support 8-channel audio output Audio Features LED-illuminated design Audio Shielding Dedicated audio PCB layers Premium Japanese audio capacitors
LAN	Realtek RTL8111H 10/100/1000 Mbps ASUS LANGuard
Wireless Communication Module	None
Expansion Slots	3rd/2nd/1st Gen AMD Ryzen Processors 1 x PCIe 3.0 x16 (x4 mode) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors 1 x PCIe 3.0 x16 (x8 mode) AMD Athlon with Radeon Vega Graphics Processors 1 x PCIe 3.0 x16 (x4 mode) AMD B450 chipset 2 x PCIe 2.0 x1
Storage Interface	Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) Athlon with Radeon Vega Graphics Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) AMD B450 chipset : 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 10
USB	Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s)
Internal I/O Connectors	Fan and Cooling Related 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) Power related 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) Storage related 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 4 x SATA 6Gb/s connector(s) USB 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) Miscellaneous 1 x SPI TPM header 1 x COM port(s) connector(s) 1 x S/PDIF out header(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x Speaker connector

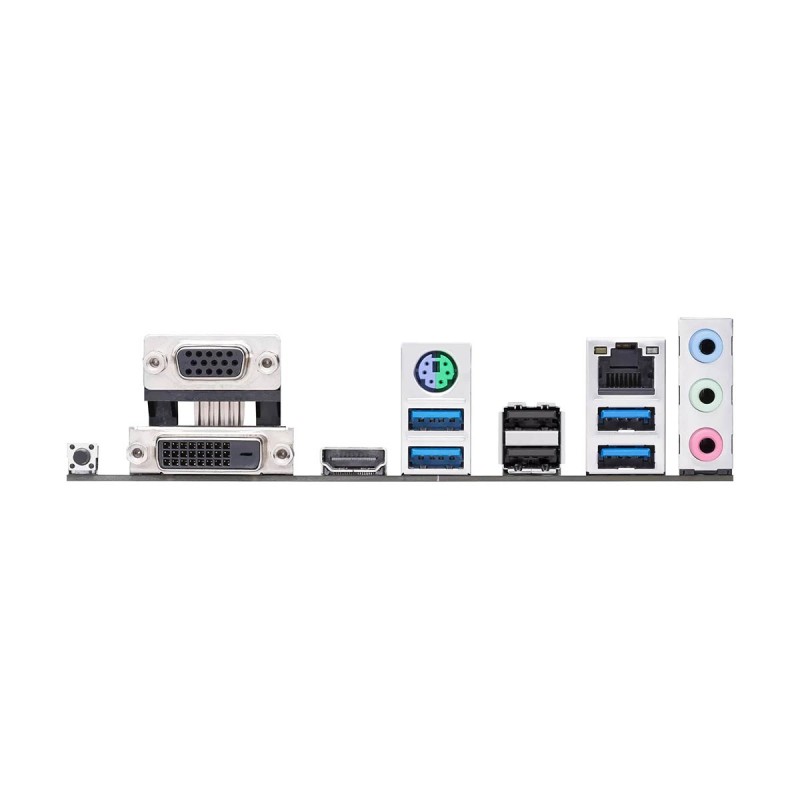

Back Panel Connectors	1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 3 x Audio jack(s) 1 x BIOS FlashBack Button(s)
I/O Controller	N/A
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control
BIOS	256 Mb Flash ROM UEFI AMI BIOS
Unique Features	ASUS 5X PROTECTION III ASUS DIGI+ VRM ASUS LANGuard ASUS Overvoltage Protection ASUS SafeSlot Core ASUS Stainless-Steel Back I/O ASUS Q-Design ASUS Q-DIMM ASUS Q-Slot ASUS Thermal Solution Aluminum heatsink design ASUS EZ DIY BIOS FlashBack button BIOS FlashBack LED ASUS Lighting Control
Bundled Software	Armoury Crate AI Suite 3 Performance and Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert PC Cleaner EZ update System Information ASUS CPU-Z AI Charger ASUS EZ Installer DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode
Operating System	Windows 7 64-bit, Windows 10 64-bit
Form Factor	Micro-ATX Form Factor 22.6cm x 22.1cm

Manufacturer
Manufacturer's Website	Link *
Product Website	Link *
Warranty Information
Warranty Duration	3 Years

* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating Bad Good

ASUS PRIME B450M-K II, AMD B450 Chipset, Socket AM4, DDR4, Micro ATX Desktop Motherboard

- Socket AM4, AMD B450 Chipset
- Supports Ryzen 1000 to 5000 Series Processors
- 2 x DDR4 DIMM Slots, up to 64GB, DDR4-4400
- 1 x PCIe 3.0 x16 Slot
- 2 x PCIe 2.0 x1 Slots
- 1 x M.2 PCIe 3.0 NVMe Slot
- 4 x SATA 3.0 Ports, Supports RAID 0 / 1 / 10
- 1Gbps LAN
- 1 x HDMI, 1 x DVI-D, 1 x D-Sub VGA
- 4 x Rear USB Type-A 5Gb/s
- 2 x Rear USB 2.0/1.1
- 1 x PS/2 Keyboard/Mouse Port
- 3 x Rear Audio Jacks
- BIOS Flashback: Update BIOS without CPU / RAM / GPU
- Form Factor: Micro ATX
- 3 Year Warranty

Product Code: 90MB1600-M0EAY0
