• AMD AM4 Socket 3rd and 2nd AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors


• AMD X570


• 3rd Gen AMD Ryzen Processors
  4 x DIMM, Max. 128GB, DDR4 4400(O.C) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz Un-buffered Memory
• 2nd Gen AMD Ryzen Processors
  4 x DIMM, Max. 128GB, DDR4 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz Un-buffered Memory
• 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
  4 x DIMM, Max. 128GB, DDR4 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz Memory
• Dual Channel Memory Architecture
• ECC Memory (ECC mode) support varies by CPU.

Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors

• VGA output support : HDMI port

• Supports HDMI 1.4b with max. resolution 4096  x 2160  @ 24  Hz

• Realtek S1200A 8-Channel High Definition Audio CODEC
• Supports : Jack-detection, Front Panel Jack-retasking
• Front panel audio connector (AAFP)
  * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
• Audio Feature
• Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
• Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
• Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

• Realtek RTL8111H

• ASUS LAN Guard

• N/A

3rd Gen AMD Ryzen Processors

• 1 x PCIe 4.0 x16 (x16 mode)

2nd Gen AMD Ryzen Processors

• 1 x PCIe 3.0 x16 (x16 mode)

2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors

• 1 x PCIe 3.0 x16 (x8 mode)

AMD X570 chipset

• 1 x PCIe 4.0 x16 (max at x4 mode)
• 3 x PCIe 4.0 x1

3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors

• Supports AMD 2-Way CrossFireX Technology

3rd Gen AMD Ryzen Processors

• 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support

2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors

• 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

AMD X570 chipset

• 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
• 6 x SATA 6Gb/s port(s)
• Support Raid 0, 1, 10

3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors

• 2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A)
  * The USB ports under the LAN port can run at USB 3.2 Gen 2 speeds with 3rd Gen AMD Ryzen Processors

3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors

• 2 x USB 3.2 Gen 1 port(s) (2 at back panel, blue, Type-A)

AMD X570 chipset

• 2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A)

AMD X570 chipset

• 4 x USB 3.2 Gen 1 port(s) (4 at mid-board)
• AMD X570 chipset
• 5 x USB 2.0 port(s) (2 at back panel, 3 at mid-board)

• 2 x Aura RGB Strip Headers

• 1 x Addressable Gen 2 header(s)
• 2 x USB 2.0 connector(s) support(s) additional 5 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
• 1 x SPI TPM header
• 1 x COM port(s) connector(s)
• 6 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 3 x Chassis Fan connector(s) (3 x 4 -pin)
• 1 x PCH_FAN (1 x 4 -pin)
• 1 x AIO_PUMP connector (1 x 4 -pin)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s)
• 1 x Clear CMOS jumper(s)
• 2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

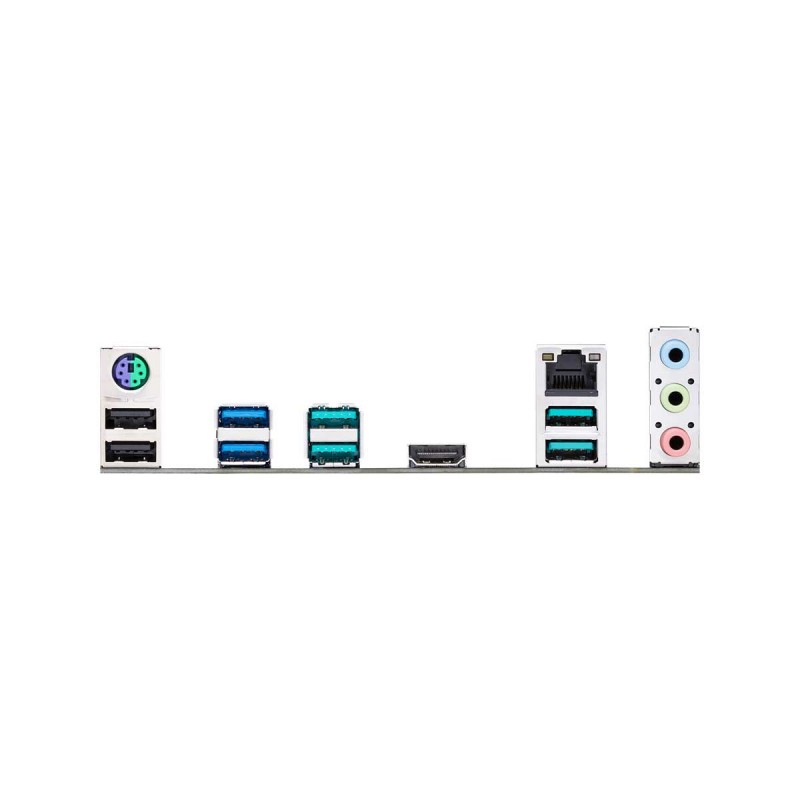

• 1 x PS/2 keyboard/mouse combo port(s)

• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 2 x USB 2.0
• 3 x Audio jack(s)
• 2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A
• 4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)
  * The USB ports under the LAN port can run at USB 3.2 Gen 2 speeds with 3rd Gen AMD Ryzen Processors

• N/A

• Voltage detection
• Temperature detection
• Fan speed detection
• Overheating warning
• Fan fail warning
• Fan speed control
  * Whether the fan speed control function is supported will depend on the fan you install.

• 256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information


• ASUS 5X Protection III
  ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
  ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
  ASUS Overvoltage Protection: World-class circuit-protecting power design
  ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
  ASUS DIGI+ VRM - Digital power design with Dr. MOS
  ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
  ASUS ESD Guards - Enhanced ESD protection
• ASUS SafeSlot - Protect your graphics card Investment
  ASUS OptiMem
  Improved DDR4 Stability
• ASUS EPU
  EPU
• AURA
  Aura RGB Strip Headers
  Aura Control
  Addressable Gen 2 Header
• ASUS Exclusive Features
  AI Suite 3
  Ai Charger
  Armoury Crate
• ASUS Quiet Thermal Solution
  Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan and PCH Heatsink
  ASUS Fan Xpert 4
• ASUS EZ DIY
  ASUS CrashFree BIOS 3
  ASUS EZ Flash 3
  ASUS UEFI BIOS EZ Mode
• ASUS Q-Design
  ASUS Q-Slot
  ASUS Q-DIMM

• Driver and software disc

• Windows 10 64-bit

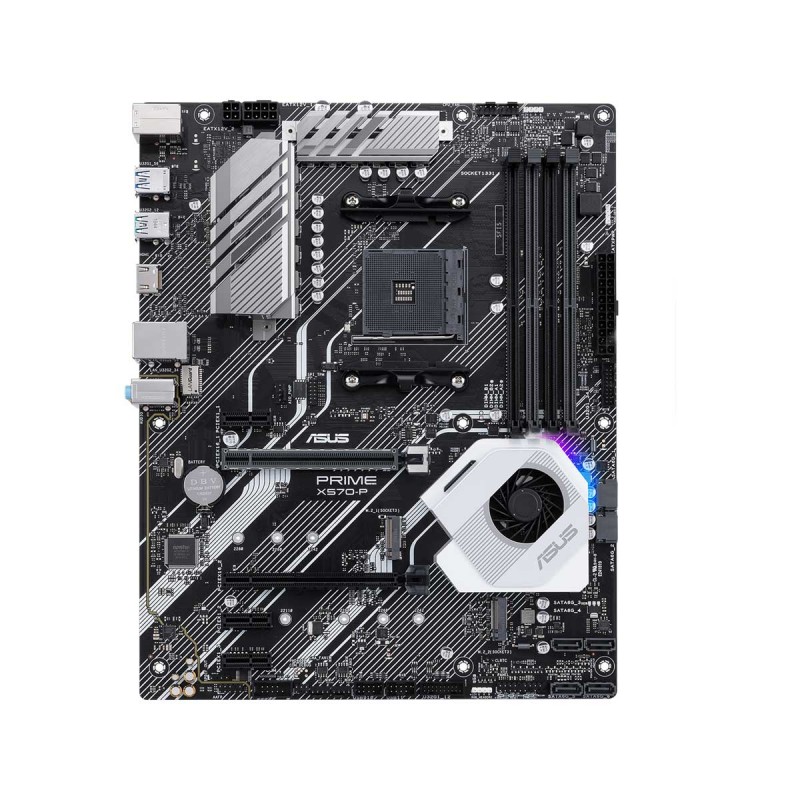

• ATX Form Factor, 30.5cm x 24.4cm
