MAG X870E TOMAHAWK MAX WIFI PZ is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen 9000 series processors. MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before. The MAG X870E TOMAHAWK MAX WIFI PZ features a back-connect design, which relocates the motherboard power, CPU power, fan pins, SATA, and other interfaces to the back of the motherboard. This allows for simpler cable management, while also providing a cleaner and more aesthetically pleasing appearance for the system.

CPU

AMD Socket AM5

  • Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
ChipsetAMD X870E
Memory

4 x DDR5 UDIMM, Maximum Memory Capacity 256GB

  • Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
  • Ryzen 9000 Series Processors max. overclocking frequency:
    • 1DPC 1R Max speed up to 8400+ MT/s
    • 1DPC 2R Max speed up to 6400+ MT/s
    • 2DPC 1R Max speed up to 6400+ MT/s
    • 2DPC 2R Max speed up to 6400+ MT/s
  • Supports AMD POR Speed and JEDEC Speed
  • Supports Memory Overclocking and AMD EXPO
  • Supports Dual-Channel mode
  • Supports Non-ECC, Un-buffered memory
  • Supports CUDIMM, Clock Driver bypass mode only
Onboard Graphics

Integrated Graphics Processor with AMD Radeon Graphics

  • 1 x HDMI
    • Support HDMI 2.1, maximum resolution of 4K 60Hz
  • 2 x Type-C DisplayPort
    • USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz
Audio

Realtek ALC4080 Codec

  • 7.1-Channel USB High Performance Audio
  • Supports up to 32-bit/384kHz playback on front panel
  • Supports S/PDIF output
LAN

Realtek 8126 5G LAN

  • 5Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps
Wireless Communication Module

Wi-Fi 7

  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth 5.4

Expansion Slots

3 x PCI-E x16 slot

  • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
    • Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
    • Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
    • Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Storage Interface

4 x M.2

  • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
    • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
    • Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
  • M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
    • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
    • Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors)
    • The M2_2 slot will be unavailable when using Ryzen 8500/ 8300 Series processors.
    • USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4.
  • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1, RAID 5 for M.2 NVMe storage devices

  • RAID 5 configuration is only supported by Ryzen 9000 series processors.
  • RAID 10 for M.2 NVMe storage devices is only supported by Ryzen 9000/7000 series processors.
USB

Rear:

  • 4 x USB 2.0
  • 3 x USB 5Gbps Type A
  • 2 x USB 10Gbps Type A
  • 1 x USB 10Gbps Type C
  • 2 x USB 40Gbps Type C

Front:

  • 4 x USB 2.0
  • 4 x USB 5Gbps Type A
  • 1 x USB 20Gbps Type C
Internal I/O Connectors
  • 1 x Power Connector(ATX_PWR)
  • 2 x Power Connector(CPU_PWR)
  • 1 x Power Connector(PCIE_PWR 8pin)
  • 1 x CPU Fan
  • 1 x Combo Fan (Pump_Sys Fan)
  • 6 x System Fan
  • 1 x EZ Conn-header (JAF_2)
  • 2 x Front Panel (JFP)
  • 1 x Chassis Intrusion (JCI)
  • 1 x Front Audio (JAUD)
  • 3 x Addressable V2 RGB LED connector (JARGB_V2)
  • 1 x RGB LED connector(JRGB)
  • 1 x TPM pin header(Support TPM 2.0)
  • 2 x Direct OC Jumper (JBCLK)
  • 4 x USB 2.0 ports
  • 4 x USB 5Gbps Type A ports
  • 1 x USB 20Gbps Type C ports

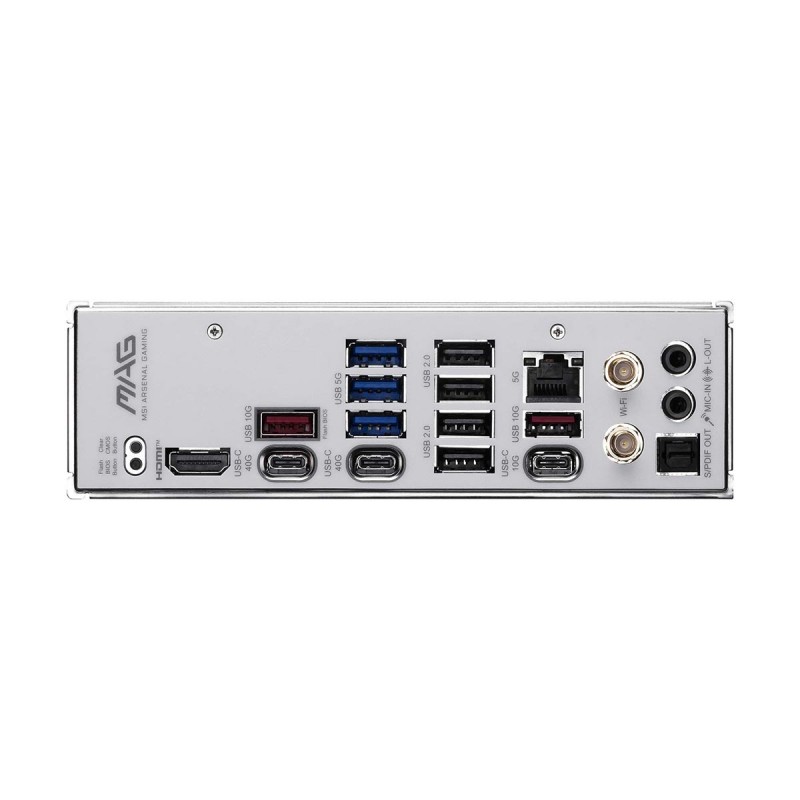

Back Panel Connectors
  • 1 x Clear CMOS Button
  • 2 x USB 10Gbps Type-A
  • 3 x USB 5Gbps Type-A
  • 4 x USB 2.0
  • 1 x 5G LAN
  • 2 x Wi-Fi / Bluetooth
  • 2 x Audio connectors
  • 1 x Flash BIOS Button
  • 1 x HDMI
  • 2 x USB 40Gbps Type-C
  • 1 x USB 10Gbps Type-C
  • 1 x Optical S/PDIF Out
I/O Controller
  • iTE I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Fan fail warning
  • Fan speed control
BIOSNot Specified
Unique Features

4 x EZ Debug LED

1 x EZ Digi-Debug LED

1 x EZ Memory Detection LED

Bundled SoftwareDrivers
Operating System
  • Support for Windows 11 64-bit
Form Factor

ATX Form Factor

  • 30.5cm x 24.4cm

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

MSI MAG X870E TOMAHAWK MAX WIFI PZ, AMD X870E Chipset, Socket AM5, Reverse Connector ATX Desktop Motherboard

- Socket AM5, AMD X870E Chipset
- Supports AMD Ryzen 7000, 8000 & 9000 Series Processors
- 4 x DDR5 DIMM Slots, up to 256GB, DDR5-8400+ (OC)
- Supports CUDIMM Memory Modules (Bypass Mode)
- 1 x PCIe 5.0 x16 Slot
- 1 x PCIe 4.0 x16 Slot (x4 Electrical)
- 1 x PCIe 3.0 x16 Slot (x1 Electrical)
- 2 x M.2 PCIe 5.0 NVMe Slots
- 2 x M.2 PCIe 4.0 x4 NVMe Slots
- 4 x SATA Ports, Supports RAID 0 / 1 / 10
- 5Gbps LAN, Wi-Fi 7 & Bluetooth 5.4
- 1 x HDMI 2.1, 2 x Type-C DisplayPort
- 2 x Rear USB Type-C 40Gb/s, 1 x Rear USB Type-C 10Gb/s
- 2 x Rear USB Type-A 10Gb/s, 3 x Rear USB Type-A 5Gb/s
- 4 x Rear USB 2.0/1.1
- 2 x Rear Audio Jacks, 1 x S/PDIF Optical Out
- EZ PCIe Quick-Release Mechanism
- EZ M.2 CLIP II Tool-Less M.2 SSD Installation
- EZ M.2 Shield Frozr II
- EZ Debug LED, EZ Digit Debug LED & EZ Memory Detection LED
- EZ Antenna Quick-Release Wi-Fi Antenna
- Flash BIOS Button - Update BIOS without CPU / RAM / GPU
- 3 x ARGB Gen2 Headers
- Form Factor: Project Zero ATX with Reverse Connector Design
- 3 Year Warranty
