Images are for reference purposes only and product appearances/colours may vary.

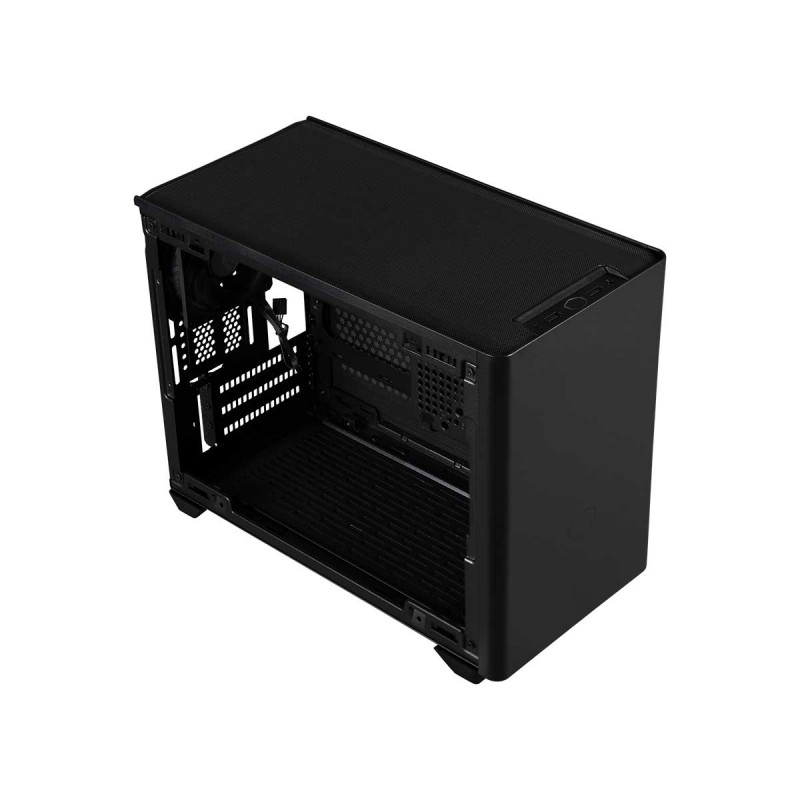

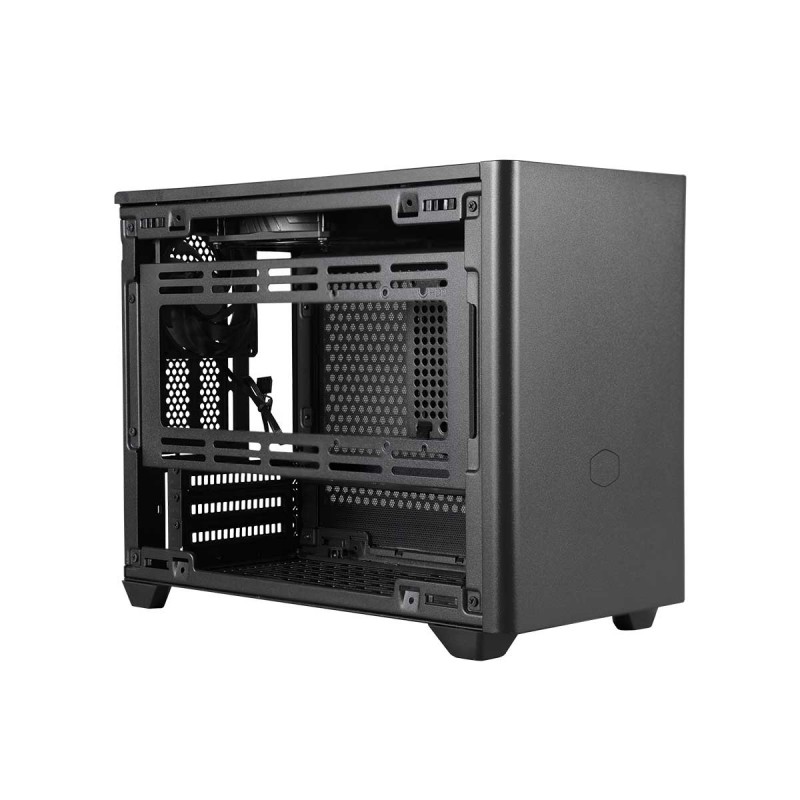

The MasterBox NR200 takes all of the features found in a core performance ATX chassis and efficiently utilizes them in a space less than half the volume. Every feature is thoughtfully laid out in the 18-liter case to maximize component compatibility, ease of use, and thermal efficiency. Open ventilation and multiple fan mounts bring airflow where it’s needed, while generous watercooling and aircooling clearances allow the fitment of coolers that can take advantage of all the airflow. Ample clearance for long, triple-slot graphics cards means no sacrifices are needed in GPU power to take advantage of small form factor sizing. The frame is wrapped in a sleek and tasteful steel chassis that blends in perfectly on top of desk. The NR200 can house up to 7 fans in total for every cooling configuration imaginable. Five panels are flanked with ventilation for unrestricted airflow. One 92mm and one 120mm Sickleflow fan are included. The compact structure can efficiently house CPU coolers up to 155mm in height and radiators up to 280mm in length, so even the hottest running hardware can’t be held back. Triple slot GPUs are supported with a maximum length of 330mm and maximum width of 156mm allowing the fitment of high-end graphics cards. The rear ventilation contains PCI slots to allow for vertical GPU mounting to better showcase the graphics card (PCI riser cable sold separately).

ModelMCB-NR200-KNNN-S00
ColourBlack
LightingNone
MaterialsSteel, Plastic, Mesh
Dimensions376mm x 185mm x 292mm
Form FactorMini Tower
Motherboard SupportMini ITX
Front I/O

2 x USB 3.0
1 x Headphone Out / Mic In
1 x Power Button

Side PanelVented
Drive Bays

5.25": 0
3.5" / 2.5" Combo: 1
3.5": 1
2.5": 2

Expansion Slots3
Fan Support

Front: None
Top: 2 x 120mm (1 x 120mm fan included)
Back: 1 x 92mm (included)
Bottom: 2 x 120mm
Side: 2 x 120mm / 2 x 140mm

Radiator Support

Front: None
Top: None
Back: Up to 92mm
Bottom: Up to 240mm
Side: Up to 280mm

Clearances

CPU Cooler: 155mm (76mm with GPU in vertical position)
GPU Length: 330mm
PSU Length: SFX, SFX-L

Weight4.8 kg

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration2 Years
