The AMD RDNA 3 Architecture elevated by buffed cooling and power delivery to effortlessly churn out frames at 4K resolution and beyond, and backed with an arsenal of rugged reinforcements to cover your six. Lock, load, and dominate with the TUF Gaming Radeon RX 7800 XT OG Edition. The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 55 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 60 Celsius, referencing a speed curve that balances performance and acoustics for work or play. The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills most of the card’s large, 2.9-slot footprint. An aluminum shroud and backplate, complemented by a robust diecast core in the middle, prevent PCB flex and feature large vents to further increase heat dissipation. Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that’s uniquely you.
| Graphics Processing | Radeon RX 7800 XT |
| Core Clock | OC Mode: Up to 2565 MHz (Boost Clock) / Up to 2254 MHz (Game Clock) Default Mode: Up to 2520 MHz (Boost Clock) / Up to 2213 MHz (Game Clock) |
| Stream Processors | 3840 |
| Ray Accelerators | 60 |
| Memory Clock | 19500 MHz |
| Memory Size | 16 GB |
| Memory Type | GDDR6 |
| Memory Bus | 256 bit |
| Memory Bandwidth (GB/sec) | 624 GB/s |
| Card Bus | PCI-E 4.0 x16 |
| Digital max resolution | 7680x4320 |
| Multi-view | 4 |
| Card size | 320 x 140 x 58 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 750W |
| Power Connectors | 2 x 8-Pin |

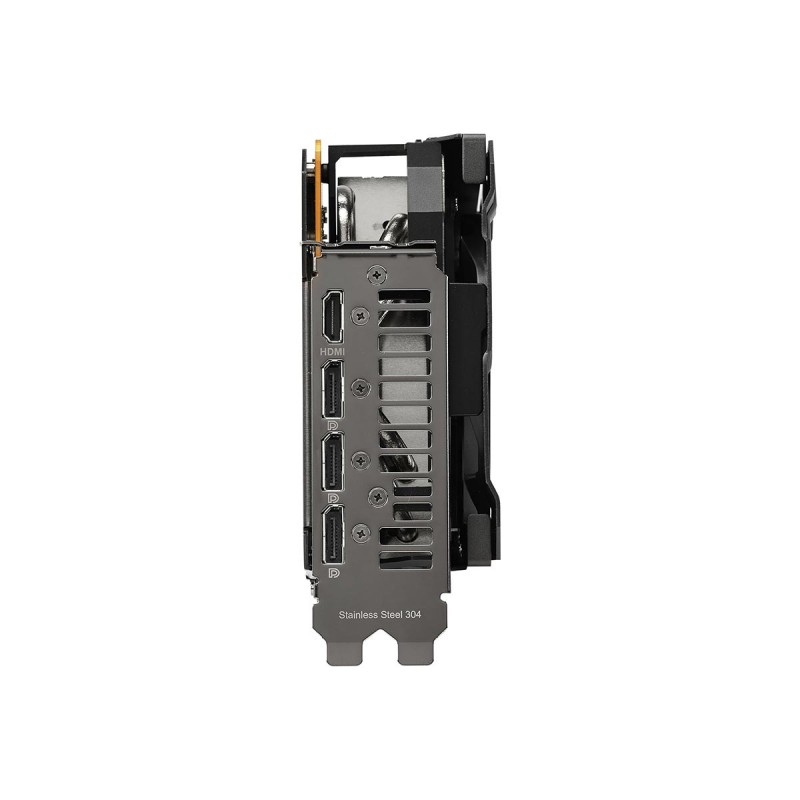

| Output | 3 x DisplayPort 2.1 1 x HDMI 2.1 |
| Multi-GPU Support | No |
| Accessories | TUF Certificate of Reliability TUF Velco Hook & Loop Collection Card Speedsetup Manual |
| Manufacturer | |
| Manufacturer's Website | Link * |
| Product Website | Link * |
| Warranty Information | |
| Warranty Duration | 3 Years |
ASUS TUF GAMING Radeon RX 7800 XT OG OC Edition Graphics Card, 16GB
- AMD Radeon RX 7800 XT Graphics Processor
- Base Clock: 1800 MHz
- Boost Clock: Up To 2520 MHz
- Stream Processors: 3840
- Ray Accelerators: 60
- AI Accelerators: 120
- Compute Units: 60
- Memory: 16GB GDDR6
- Effective Memory Clock: 19,500 MHz
- Real Time Ray Tracing
- 3 x DisplayPort 2.1, 1 x HDMI 2.1
- 2 x PCIe 8-Pin Power Connectors
- 3 Year Warranty
- Product Code: 90YV0K70-M0NA00
