Images are for reference purposes only and product appearances/colours may vary.

The WINDFORCE 2X cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation. The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure. The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle. The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling. Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter. Extended heatsink design allows air flow to pass through, providing better heat dissipation. The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

Graphics ProcessingGeForce RTX 3060 8GB
Core Clock1807 MHz (Reference Card: 1777 MHz)
CUDA Cores3584
Ray Tracing Cores28
Tensor Cores112
Streaming Multi-Processors28
Memory Clock15000 MHz
Memory Size8 GB
Memory TypeGDDR6
Memory Bus128 bit
Memory Bandwidth (GB/sec)240 GB/s
Card BusPCI-E 4.0 x 16
Digital max resolution7680x4320@60Hz
Multi-view4
Card size198 x 121 x 39 mm
PCB FormATX
DirectX12 Ultimate
OpenGL4.6
Recommended PSU550w
Power Connectors1 x 8 Pin
Output2 x DisplayPort 1.4a
2 x HDMI 2.1
Multi-GPU SupportNo
Accessories

Quick guide

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

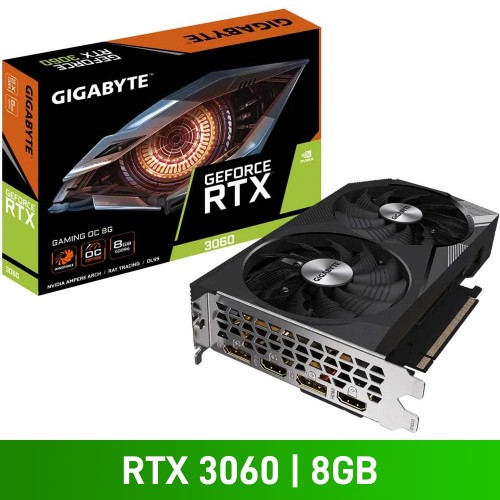

Gigabyte GeForce RTX 3060 GAMING OC 8G Graphics Card, 8GB

  • Product Code: GV-N3060GAMING OC-8GD
  • Availability: In Stock leadtimeTooltip Lead Times:
    • In Stock with Progenix: Ready for collection/dispatch once payment clears
    • In Stock: 0-2 working days until dispatched or ready for collection
    • Out Of Stock: Contact us to see if this item will be restocked.
    "In Stock with Progenix" will be displayed in green below the product title.
  • R6,647



Price diplayed is already subject to a 4% discount for EFT payments
