Designed for DIY PC enthusiasts aiming to create unique custom loop builds and achieve the highest possible performance in silence. AORUS provides an all-round cooling solution as critical parts like GPU, VRAM and MOSFET are actively cooled to ensure system stability under high overclocks. The optimal spacing between the micro fins allows for significant heat transfer from the GPU via stable water flow and prevents blocking. The micro fins over the GPU increase the contact area with liquid flows. In addition, we have shortened the distance between the water channel and the GPU to provide more efficient heat dissipation. The large copper base plate covers the entire water channel over the GPU, VRAM, and other critical parts, so the heat can then be quickly taken away. With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER. The water block is built in with a leak detection circuit covering the entire waterblock, which promptly alerts users by flash warning light in case of any liquid leaks. The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience. The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection. When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.

Graphics ProcessingGeForce RTX 4080 16GB
Core Clock2565 MHz (Reference Card: 2505 MHz)
CUDA Cores9728
Ray Tracing Cores76
Tensor Cores304
Streaming Multi-Processors76
Memory Clock22400 MHz
Memory Size16 GB
Memory TypeGDDR6X
Memory Bus256 bit
Memory Bandwidth (GB/sec)716.8 GB/s
Card BusPCI-E 4.0 x16
Digital max resolution7680 x 4320
Multi-view4
Card size235 mm x 169 mm x 29 mm
PCB FormATX
DirectX12 Ultimate
OpenGL4.6
Recommended PSU850w
Power Connectors1 x 16-pin
Output3 x DisplayPort 1.4a
1 x HDMI 2.1
Multi-GPU SupportNo
AccessoriesQuick guide
Warranty registration
WATERFORCE water block installation guide
AORUS Metal sticker
Xtreme Robot Limited Edition with AORUS flag
One 16 pin to triple 8-pin power adaptor
Thermal grease

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years (Additional 1 Year with Registration)
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

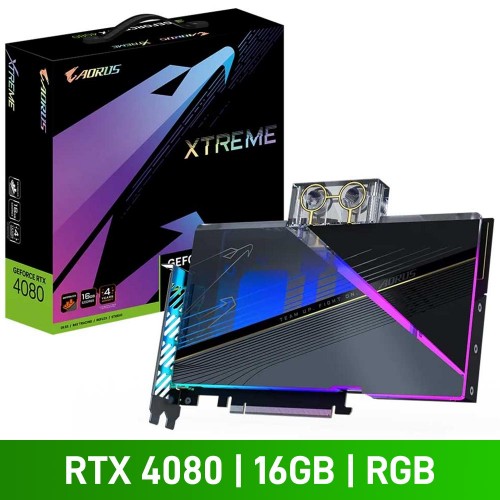

Gigabyte AORUS GeForce RTX 4080 16GB XTREME WATERFORCE WB Graphics Card, 16GB

- NVIDIA GeForce RTX 4080 Graphics Processor
- Base Clock: 2210 MHz
- Boost Clock: Up To 2565 MHz
- CUDA Cores: 9728
- 3rd Gen Ray Tracing Cores: 76
- 4th Gen Tensor Cores: 304
- Memory: 16GB GDDR6X
- Effective Memory Clock: 22,400 MHz
- Real Time Ray Tracing
- DLSS 3.5 AI Rendering Technology
- 3 x DisplayPort 1.4, 1 x HDMI 2.1a
- PCIe 5.0 12VHPWR Connector
- Requires Custom Water Cooling Loop
- 3 Year Warranty

  • Product Code: GV-N4080AORUSX WB-16GD
  • Availability: In Stock leadtimeTooltip Lead Times:
    • In Stock with Progenix: Ready for collection/dispatch once payment clears
    • In Stock: 1-3 working days until dispatched or ready for collection
    • Out Of Stock: Contact us to see if this item will be restocked.

    Last Item in Stock
  • R31,862



Price displayed is already subject to a 4% discount for EFT payments
