• AMD Socket AM4, support for: AMD Ryzen 5000 Series / Ryzen 5000 G-Series / AMD Ryzen 4000 G-Series / AMD Ryzen 3000 Series / AMD Ryzen 3000 G-Series / AMD Ryzen 2000 Series / AMD Ryzen 2000 G-Series Processors


• AMD X570


• 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

• Dual channel memory architecture
• Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
  * ECC memory (ECC mode) support varies by CPU
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Integrated Graphics Processor:

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.0 version, HDCP 2.2, and HDR.

Maximum shared memory of 16 GB

• Realtek Audio codec
• High Definition Audio
• 2/4/5.1/7.1-channel

• Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• None

Integrated in the CPU:

• 1 x PCI Express x16 slot (PCIEX16)
  * AMD Ryzen 5000 Series Processors / AMD Ryzen 3000 Series Processors support PCIe 4.0 x16 mode
  * AMD Ryzen 4000 G-Series Processors / AMD Ryzen 2000 Series Processors support PCIe 3.0 x16 mode
  * AMD Ryzen 3000 G-Series Processors / AMD Ryzen 2000 G-Series Processors support PCIe 3.0 x8 mode
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Integrated in the Chipset:

• 1 x PCI Express x16 slot (PCIEX2), Supporting PCIe 4.0(Note)/3.0 x2 mode
  * The PCIEX2 slot shares bandwidth with the SATA3 4, 5 connectors. The SATA3 4, 5 connectors will become unavailable when a device is installed in the PCIEX2 slot.
• 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0
  * For AMD Ryzen 5000 Series Processors / AMD Ryzen 3000 Series Processors only.

• Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

Note: For 3rd Generation AMD Ryzen processors/2nd Generation AMD Ryzen processors only.

Integrated in the CPU:

• 1 x M.2 connector (M2A_CPU), M key, type 2242/2260/2280/22110 SSDs:
  * AMD Ryzen 5000 Series Processors / AMD Ryzen 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
  * AMD Ryzen 4000 G-Series Processors / AMD Ryzen 3000 G-Series Processors / AMD Ryzen 2000 Series Processors / AMD Ryzen 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

Integrated in the Chipset:

• 1 x M.2 connector (M2C_SB), supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
  * Supporting PCIe 4.0*/3.0 x4/x2 SSDs
  * For AMD Ryzen 5000 Series Processors / AMD Ryzen 3000 Series Processors only.
• 1 x M.2 connector (M2B_SB), supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
  * Supporting SATA and PCIe 4.0*/3.0 x4/x2 SSDs
  * For AMD Ryzen 5000 Series Processors / AMD Ryzen 3000 Series Processors only.
• 6 x SATA 6Gb/s connectors:
• Support for RAID 0, RAID 1, and RAID 10

• 4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

• 2 x USB Type-C ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header)
• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• 2 x USB 3.2 Gen 1 ports available through the internal USB header
• 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 3 x system fan headers
• 1 x system fan/water cooling pump header
• 1 x CPU cooler LED strip/RGB LED strip header
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 6 x SATA 6Gb/s connectors
• 3 x M.2 Socket 3 connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C header, with USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
• 1 x Clear CMOS jumper
  ＊ All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

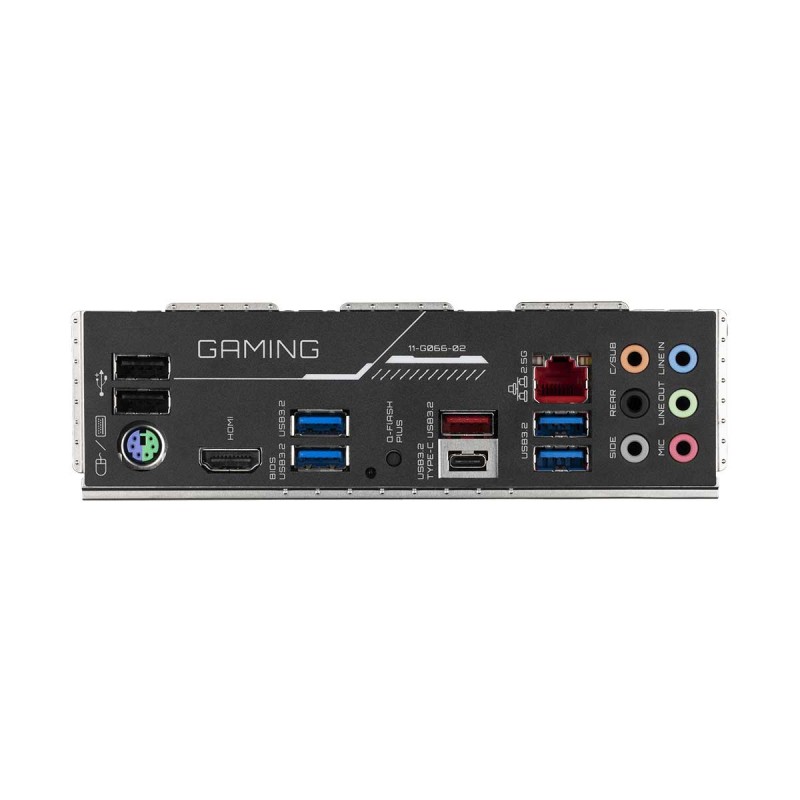

• 2 x USB 2.0/1.1 ports

• 1 x PS/2 keyboard/mouse port
• 1 x HDMI port
• 4 x USB 3.2 Gen 1 ports
• 1 x Q-Flash Plus button
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 1 x USB Type-C port, with USB 3.2 Gen 2 support
• 1 x RJ-45 port
• 6 x audio jacks

• iTE I/O Controller Chip

• Voltage detection

• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  RGB Fusion
  Smart Backup
  System Information Viewer
• Support for Q-Flash Plus
• Support for Q-Flash
• Support for Xpress Install


• Norton Internet Security (OEM version)
• Realtek 8125 Gaming LAN Bandwidth Control Utility

• Support for Windows 10 64-bit

• ATX Form Factor, 30.5cm x 24.4cm
