Images are for reference purposes only and product appearances/colours may vary.

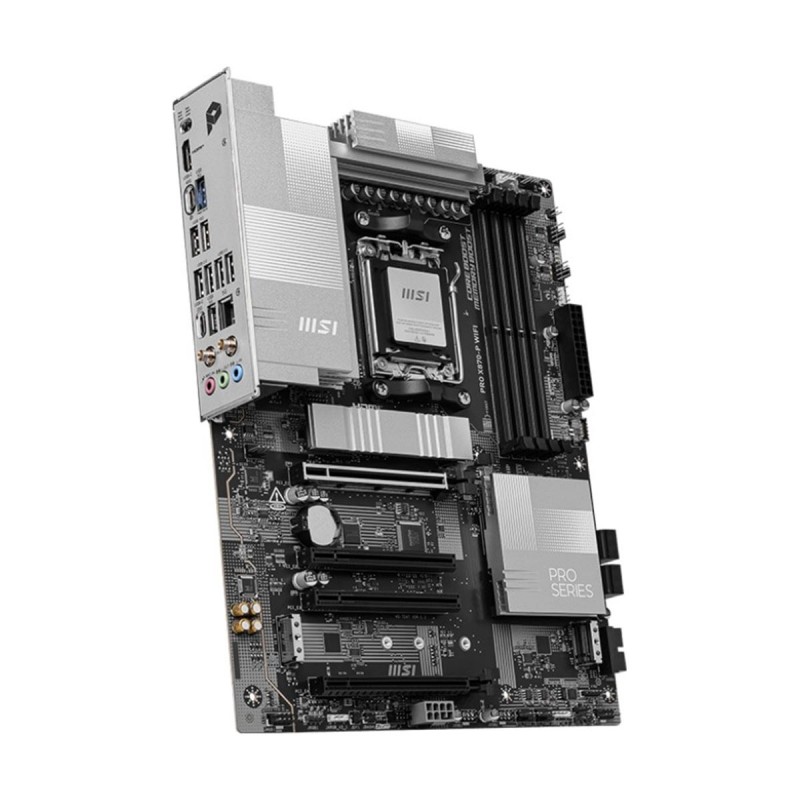

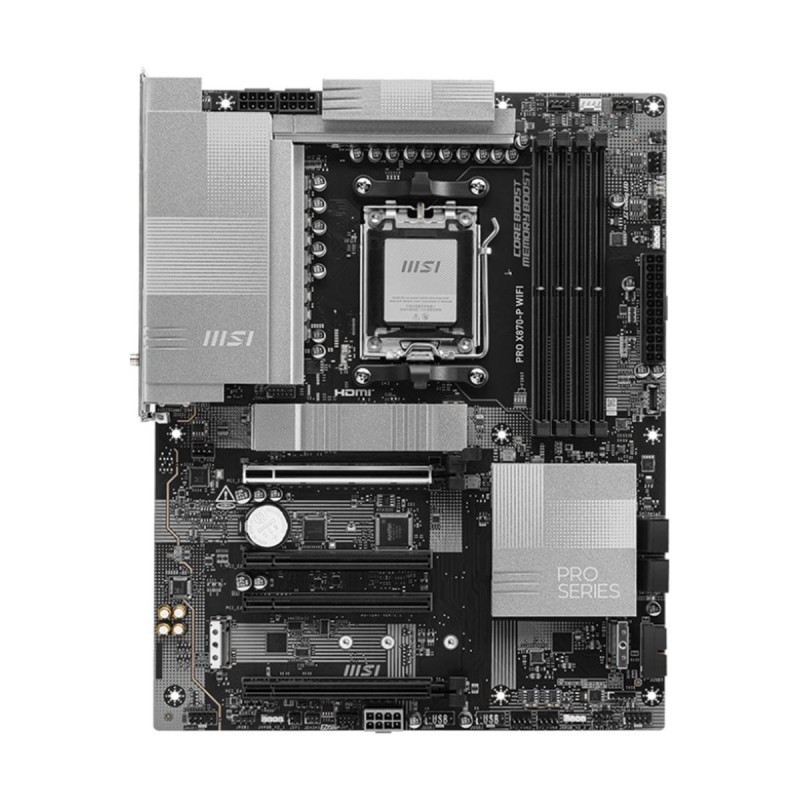

PRO X870-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen 9000 series processors. The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency. MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

CPU

AMD Socket AM5

  • Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processor
ChipsetAMD X870
Memory

4 x DDR5 UDIMM, Maximum Memory Capacity 256GB

  • Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
  • Ryzen 9000 Series Processors max. overclocking frequency:
    • 1DPC 1R Max speed up to 8200+ MT/s
    • 1DPC 2R Max speed up to 6400+ MT/s
    • 2DPC 1R Max speed up to 6400+ MT/s
    • 2DPC 2R Max speed up to 4800+ MT/s
  • Supports AMD POR Speed and JEDEC Speed
  • Supports Memory Overclocking and AMD EXPOTM
  • Supports Dual-Channel mode
  • Supports Non-ECC, Un-buffered memory
  • Supports CUDIMM, Clock Driver bypass mode only
Onboard Graphics

Integrated Graphics Processor:

  • 1 x HDMI
    • Support HDMITM 2.1, maximum resolution of 4K 60Hz
  • 1 x Type-C DisplayPort
    • USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz
Audio

Realtek ALC897

  • 7.1-Channel High Definition Audio
LAN

Realtek 8126VB 5G LAN

5Gb/s / 2.5Gb/s / 1Gb/s / 100Mb/s / 10Mb/s

Wireless Communication Module

Wi-Fi 7

  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth 5.4

Expansion Slots

4 x PCI-E x16 slot

  • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
    • Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
    • Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
    • Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processors)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
    • PCI_E4 slot will run at x2 speed when installing M.2 SSD in the M2_3 slot.
Storage Interface

3 x M.2

  • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
  • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
  • Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
  • M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
  • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices

4 x SATA 6G

Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

  • SATA_A1~A4 do not support RAID function.
  • RAID 5 configuration is only supported by Ryzen 9000 series processors.
USB

Rear:

  • 4 x USB 2.0
  • 2 x USB 5Gbps Type A
  • 2 x USB 10Gbps Type A
  • 1 x USB 20Gbps Type C
  • 1 x USB 40Gbps Type C

Front:

  • 4 x USB 2.0
  • 2 x USB 5Gbps Type A
  • 1 x USB 10Gbps Type C
Internal I/O Connectors
  • 1 x Power Connector(ATX_PWR)
  • 2 x Power Connector(CPU_PWR)
  • 1 x Power Connector(PCIE_PWR 8pin)
  • 1 x CPU Fan
  • 1 x Combo Fan (Pump_Sys Fan)
  • 6 x System Fan
  • 1 x EZ Conn-header (JAF_1)
  • 2 x Front Panel (JFP)
  • 1 x Chassis Intrusion (JCI)
  • 1 x Front Audio (JAUD)
  • 1 x Tuning Controller connector(JDASH)
  • 3 x Addressable V2 RGB LED connector (JARGB_V2)
  • 1 x RGB LED connector(JRGB)
  • 1 x TPM pin header(Support TPM 2.0)
  • 4 x USB 2.0 ports
  • 2 x USB 5Gbps Type A ports
  • 1 x USB 10Gbps Type C ports
Back Panel Connectors
  • 1 x Clear CMOS Button
  • 2 x USB 5Gbps Type-A
  • 4 x USB 2.0
  • 1 x 5G LAN
  • 2 x Wi-Fi / Bluetooth
  • 3 x Audio connectors
  • 1 x Flash BIOS Button
  • 1 x HDMI
  • 1 x USB 40Gbps Type-C
  • 2 x USB 10Gbps Type-A
  • 1 x USB 20Gbps Type-C
I/O Controller
  • Not Specified
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Fan fail warning
  • Fan speed control
BIOS
  • Not Specified
Unique Features

4 x EZ Debug LED

Bundled Software

Drivers

Operating System
  • Support for Windows 11 64-bit
Form Factor
  • ATX Form Factor, 30.5cm x 24.4cm

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty DurationLimited Lifetime
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

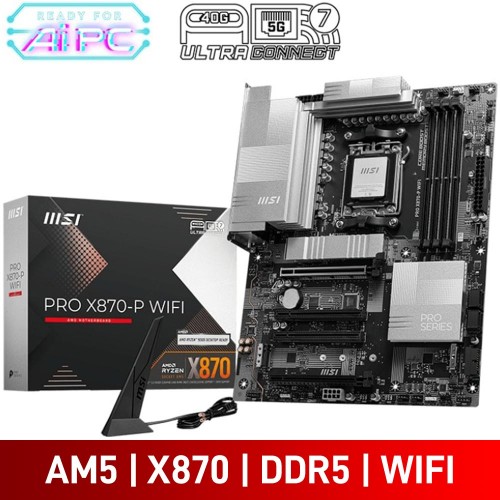

MSI PRO X870-P WIFI, AMD X870 Chipset, Socket AM5, ATX Desktop Motherboard

- Socket Socket AM5, AMD X870 Chipset
- Supports Ryzen 7000 / 8000 / 9000 Series Processors
- 4 x DDR5 DIMM Slots, up to 256GB, DDR5-8200
- Supports CUDIMM Memory Modules (Bypass Mode)
- 1 x PCIe 5.0 x16 Slot
- 1 x PCIe 4.0 x16 Slot (x4 Electrical)
- 2 x PCIe 3.0 x16 Slots (x1 Electrical)
- 1 x M.2 PCIe 5.0 NVMe Slot
- 2 x M.2 PCIe 4.0 NVMe Slots
- 4 x SATA 3.0 Ports
- 5Gbps LAN, Wi-Fi 7 & Bluetooth 5.4
- 1 x HDMI 2.1, 1 x Type-C DP Alt Mode
- 2 x Rear USB Type-C 40Gb/s, 1 x Rear USB Type-C 20Gb/s
- 2 x USB Type-A 10Gb/s, 2 x Rear USB Type-A 5Gb/s
- 4 x Rear USB 2.0/1.1
- 3 x Rear Audio Jacks
- 3 x ARGB Gen2 Headers
- Form Factor: ATX
- 3 Year Warranty

  • Product Code: 7E47-001R
  • Availability: In Stock with Supplier leadtimeTooltip Lead Times:
    • In Stock with Progenix: Ready for collection/dispatch once payment clears. The cut-off for same-day dispatch is 12:00pm on business days.
    • In Stock with Supplier: 1-3 business days until dispatched or ready for collection
    • Special Order Item: Ordered specially upon request. Contact us for estimated lead times.
    • Out Of Stock: Contact us to see if this item will be restocked.
    Last Item in Stock

  • R5,286



Price displayed is already subject to a 4% discount for EFT payments

0 reviews / Write a review
