Built to deliver reliable performance with versatile features, perfect for daily tasks. Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly. This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

CPU	Intel Socket LGA1851 for Intel Core Ultra Processors (Series 2) Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT) Integrated NPU for dedicated AI acceleration
Chipset	Intel H810 Express Chipset
Memory	2 x DIMM slots, max. 128GB, DDR5 Supports DDR5 non-ECC, un-buffered memory up to 7200 with Intel Core Ultra 200S Plus Processors Supports DDR5 non-ECC, un-buffered memory up to 6400 with Intel Core Ultra 200S Processors Supports Clocked Unbuffered DIMM (CUDIMM) Supports Intel Extreme Memory Profile (XMP) 3.0
Onboard Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 8K@60 Hz / 5K@120Hz Support for DisplayPort 1.4 version. 1 x HDMI port, supporting a maximum resolution of 4K@120 Hz Support for HDMI 2.1 version and HDCP 2.3.
Audio	Realtek Audio CODEC High Definition Audio 7.1-channel
LAN	Realtek RTL8111H GbE LAN chip 1 Gbps / 100 / 10 Mbps
Wireless Communication Module	None
Expansion Slots	CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode Supports NVMe SSD as boot disks Chipset: 1 x PCIe 4.0 x1 Slot (PCIE2) Supports NVMe SSD as boot disks 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage Interface	Chipset: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode Supports NVMe SSD as boot disks 4 x SATA3 6.0 Gb/s Connectors
USB	Chipset: 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) 6 x USB 2.0 (4 Rear, 2 Front) All USB ports support ESD Protection
Internal I/O Connectors	1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header Supports in total up to 12V/3A, 36W LED Strip 2 x Addressable LED Headers Support in total up to 5V/3A, 15W LED Strip 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control) CPU_FAN1 supports the fan power up to 1A (12W). 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control) CHA_FAN1 supports the fan power up to 3A (36W). CHA_FAN1 can auto detect if 3-pin or 4-pin fan is in use. 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Back Panel Connectors	2 x Antenna Mounting Points 1 x HDMI Port 1 x DisplayPort 1.4 2 x USB 3.2 Gen1 Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control
BIOS	1 x 256 Mbit flash AMI UEFI Legal BIOS with GUI support
Unique Features	Superb Productivity PCIe Gen5 (Graphics) Dual Channel DDR5 Rock-Solid Durability 6+1+1+1+1 Power Phase ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology EZ Update ASRock Auto Driver Installer
Bundled Software	Software ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC These utilities can be downloaded from ASRock Live Update & APP Shop. UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash
Operating System	Support for Windows 11 64-bit
Form Factor	Micro ATX Form Factor 24.4cm x 19.3cm

Manufacturer
Manufacturer's Website	Link *
Product Website	Link *
Warranty Information
Warranty Duration	3 Years

* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating Bad Good

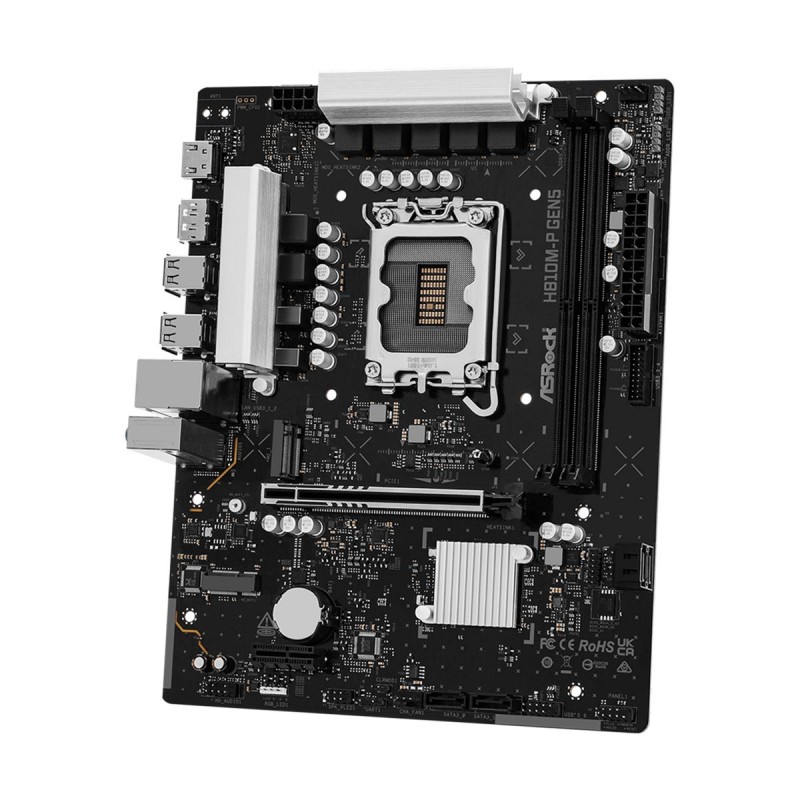

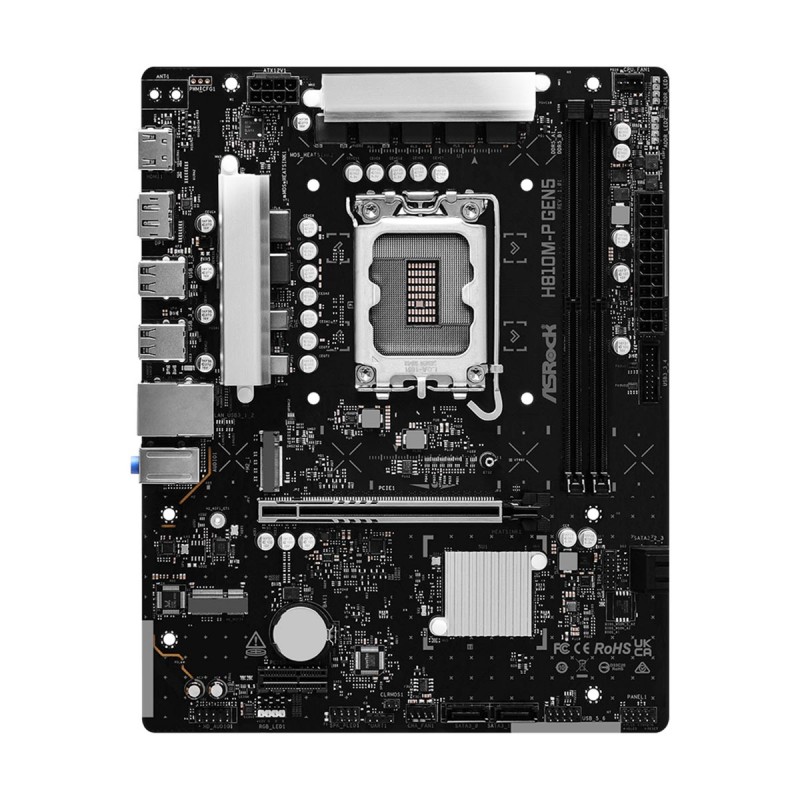

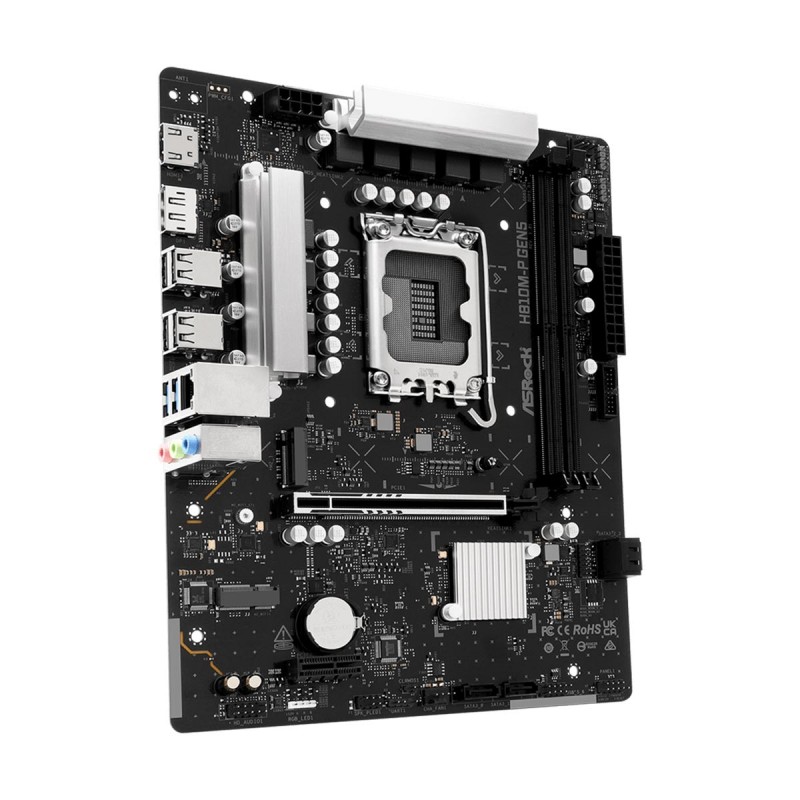

ASRock H810M-P GEN5, Intel H810 Chipset, LGA1851, DDR5, Micro ATX Desktop Motherboard

- Socket LGA1851, Intel H810 Chipset
- Supports Intel Core Ultra (Series 2) Processors
- 2 x DDR5 DIMM Slots, up to 128GB, DDR5-6400
- 1 x PCIe 5.0 x16 Slot
- 1 x PCIe 4.0 x1 Slot
- 1 x M.2 PCIe 4.0 NVMe Slot
- 4 x SATA Ports
- 1Gbps LAN
- 1 x HDMI 2.1, 1 x DisplayPort 1.4
- 2 x Rear USB Type-A 5Gb/s
- 4 x Rear USB 2.0/1.1
- 3 x Rear Audio Jacks
- 2 x ARGB Gen2 Headers
- Auto Driver Installer
- Form Factor: Micro ATX
- 3 Year Warranty

Product Code: H810M-P Gen5
Availability: In Stock with Supplier Lead Times:

In Stock with Progenix: Ready for collection/dispatch once payment clears. The cut-off for same-day dispatch is 12:00pm on business days.

In Stock with Supplier: 1-3 business days until dispatched or ready for collection

Special Order Item: Ordered specially upon request. Contact us for estimated lead times.

Out Of Stock: Contact us to see if this item will be restocked.

R1,681

Price displayed is already subject to a 4% discount for EFT payments

0 reviews / Write a review
