Taichi represents the philosophical state of undifferentiated absolute and infinite potential. A motherboard that fulfills every task – with style! Become like water. Shapeless, formless, versatile for any situation. The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs. Besides the M.2 SSD toolless design on the motherboard, ASRock up a notch by introducing this industry first M.2 heatsink quick release mechanism on the motherboard. The user friendly toolless design helps installing M.2 SSD super easy & simple.

CPU

AMD Socket AM5

  • Supports AMD Ryzen 7000 / 8000 / 9000 Series Desktop Processors
ChipsetAMD X870E
Memory

4 x DDR5 DIMM sockets supporting up to 256 GB of system memory

  • Dual Channel DDR5 Memory Technology
  • Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)
  • Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Onboard Graphics

Integrated Graphics Processor with AMD Radeon Graphics support:

  • 1 x HDMI 2.1 TMDS/FRL 8G Compatible
    • Supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  • 2 x USB4
    • Support HDCP 2.3 and max. resolution up to 8K 30Hz
Audio

5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)

  • WIMA Audio Capacitors (For Rear Outputs)
  • ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR)
  • Individual PCB Layers for R/L Audio Channel
  • Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets)
  • Nahimic Audio
LAN

5 Gigabit LAN 10/100/1000/2500/5000 Mb/s

  • Realtek RTL8126
Wireless Communication Module

802.11be 2x2 Wi-Fi 7 Module

  • Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
  • Supports 2.4GHz/5GHz/6GHz frequency band
  • Supports 160MHz channel bandwidth with 6GHz frequency band
  • 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
  • Supports MU-MIMO

Supports Bluetooth 5.4

Expansion Slots

CPU:

  • 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes
    • PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors

Chipset:

  • 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage Interface

CPU:

  • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
    • M2_1 is the first priority for M.2 installation
    • M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors

Chipset:

  • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
  • 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
  • 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
  • 6 x SATA3 6.0 Gb/s Connectors

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

USB

CPU:

  • 2 x USB4 Type-C (Rear)
  • 2 x USB 3.2 Gen2 Type-A (Rear)

Chipset:

  • 1 x USB 3.2 Gen2x2 Type-C (Front)
  • 3 x USB 3.2 Gen2 Type-A (Rear)
  • 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front)
  • 6 x USB 2.0 (2 Rear, 4 Front)

All USB ports support ESD Protection

Internal I/O Connectors
  • 3 x Thermistor Cable Headers
  • 1 x Power LED and Speaker Header
  • 1 x RGB LED Header
    • Supports in total up to 12V/3A, 36W LED Strip
  • 3 x Addressable LED Headers
    • Support in total up to 5V/3A, 15W LED Strip
  • 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
    • CPU_FAN1 supports the fan power up to 1A (12W)
    • CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP support the fan power up to 3A (36W)
    • CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP can auto detect if 3-pin or 4-pin fan is in use
  • 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
    • CPU_FAN1 supports the fan power up to 1A (12W)
    • CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP support the fan power up to 3A (36W)
    • CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP can auto detect if 3-pin or 4-pin fan is in use
  • 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
    • CPU_FAN1 supports the fan power up to 1A (12W)
    • CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP support the fan power up to 3A (36W)
    • CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP can auto detect if 3-pin or 4-pin fan is in use
  • 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
    • CPU_FAN1 supports the fan power up to 1A (12W)
    • CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP support the fan power up to 3A (36W)
    • CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP can auto detect if 3-pin or 4-pin fan is in use
  • 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
  • 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
  • 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
  • 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
  • 1 x Dr. Debug with LED
  • 1 x Power Button with LED
  • 1 x Reset Button with LED

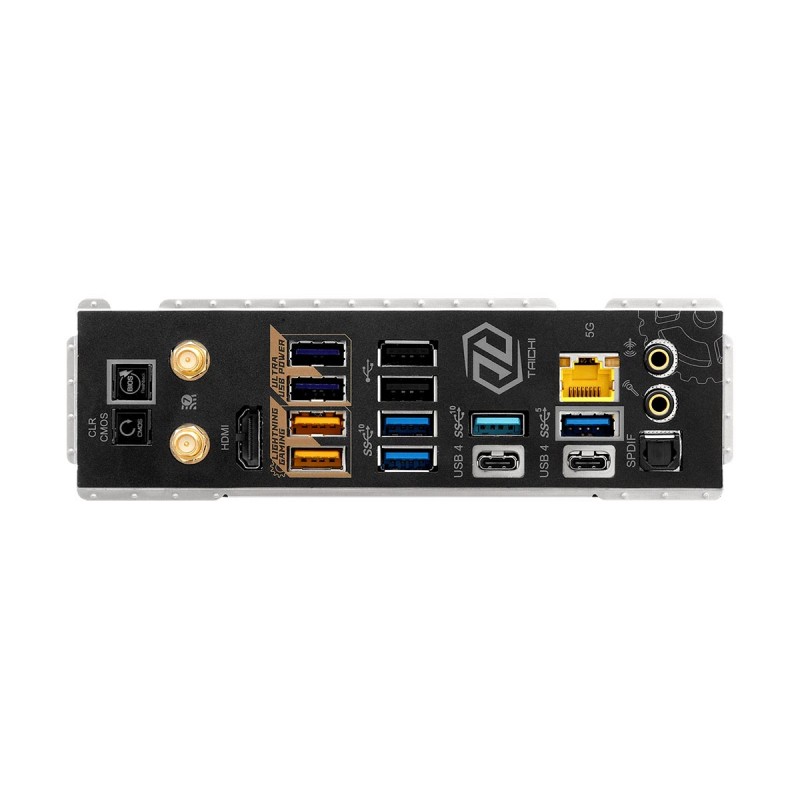

Back Panel Connectors
  • 2 x Antenna Ports
  • 1 x HDMI Port
  • 1 x Optical SPDIF Out Port
  • 2 x USB4 Type-C Ports (40 Gb/s)
    • Supports USB PD 3.0 up to 5V@3A (15W) charging
  • 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.)
  • 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.)
  • 2 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • 1 x Clear CMOS Button
  • 1 x BIOS Flashback Button
  • 1 x Line Out Jack (Gold Audio Jack)
  • 1 x Microphone Input Jack (Gold Audio Jack)
I/O Controller

Not Specified

H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
BIOS

1 x 256 Mbit flash

  • AMI UEFI Legal BIOS with GUI support
Unique Features

Superb Productivity

  • PCIe Gen5 (Graphics, M.2)
  • Dual Channel DDR5
  • USB4 Type-C Ports (40 Gb/s)

Rock-Solid Durability

  • Server-Grade Low-Loss PCB
  • 24+2+1 Power Phase, 110A SPS for VCore+SOC with Enlarged Heatsink Armor
  • Flexible Integrated I/O Shield
  • 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)

Ultrafast Connectivity

  • 5G LAN, 802.11be Wi-Fi 7 Module
  • ASRock Lightning Gaming Ports

EZ Update

  • BIOS Flashback Button
  • ASRock Auto Driver Installer
Bundled Software

Software

  • ASRock Motherboard Utility (A-Tuning)
  • ASRock Polychrome SYNC
  • ASRock XFast LAN
    • These utilities can be downloaded from ASRock Live Update & APP Shop

UEFI

  • ASRock EZ Mode
  • ASRock Full HD UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash
Operating System

Support for Windows 11 64-bit

Form Factor

E-ATX Form Factor

  • 30.5cm x 26.7cm

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

ASRock X870E TAICHI LITE with Wi-Fi, AMD X870E Chipset, Socket AM5, E-ATX Desktop Motherboard

- Socket Socket AM5, AMD B850 Chipset
- Supports Ryzen 7000 / 8000 / 9000 Series Processors
- 4 x DDR5 DIMM Slots, up to 256GB, DDR5-8200+
- 2 x PCIe 5.0 x16 Slot
- 1 x M.2 PCIe 5.0 NVMe Slot
- 3 x M.2 PCIe 4.0 NVMe Slots
- 6 x SATA 3.0 Ports, Supports RAID 0 / 1 / 10
- 5Gbps LAN, Wi-Fi 7 & Bluetooth 5.4
- 1 x HDMI 2.1, 2 x USB Type-C DisplayPort Alt Mode
- 2 x Rear USB Type-C 40Gb/s
- 5 x Rear USB Type-A 10Gb/s, 3 x Rear USB Type-A 5Gb/s
- 2 x Rear USB 2.0/1.1 Ports
- 2 x Rear Audio Jacks, 1 x S/PDIF Out
- M.2 Heatsink Toolless Design & M.2 Bottom Heatsink
- Thermistor Cable & Header for Additional Monitoring
- BIOS Flashback - Update BIOS without CPU / RAM / GPU
- Integrated RGB & 3 x ARGB Gen2 Headers
- Form Factor: E-ATX
- 3 Year Warranty
