• Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors

• Supports Intel 14 nm CPU
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

• Intel H470


• 4 x DIMM, Max. 128GB, DDR4 2933 / 2800 / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory

• Dual Channel Memory Architecture
• Supports Intel Extreme Memory Profile (XMP)
• OptiMem

Integrated Graphics Processor

• 1 x DisplayPort 1.4
  * Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz.
• 1 x HDMI 1.4b

• Realtek ALC887 8-Channel High Definition Audio CODEC
  Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
• Audio Feature:
  Audio Shielding
  Dedicated audio PCB layers
  Premium Japanese audio capacitors
  * Choose the chassis with HD audio module in front panel to support 8-channel audio output.

• Realtek RTL8111H


• M.2 slot only (Key E) (Support CNVI & PCIe interface)
  * Wi-Fi module is sold separately.

• 1 x PCIe 3.0 x16 (x16 mode)

• 1 x PCIe 3.0 x16 (x4 mode)
• 4 x PCIe 3.0 x1

• Supports AMD 2-Way CrossFireX Technology


Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

Intel H470 Chipset :

• 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

• 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)
  * When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used.
• 6 x SATA 6Gb/s port(s)
• Support Raid 0, 1, 5, 10
• Intel Rapid Storage Technology supports
• Intel Optane Memory Ready

Rear USB Port ( Total 8 )

• 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x Type-C)
• 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
• 4 x USB 2.0 port(s)(4 x Type-A)

Front USB Port ( Total 7 )

• 4 x USB 3.2 Gen 1 port(s)
• 3 x USB 2.0 port(s)

• 1 x CPU Fan connector(s)

• 3 x Chassis Fan connector(s)
• 1 x AIO_PUMP connector
• 1 x Aura RGB Strip Headers
• 1 x Addressable Gen 2 header(s)
• 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
• 1 x M.2 with E key for Wi-Fi module
• 1 x SPI TPM header
• 6 x SATA 6Gb/s connector(s)
• 1 x S/PDIF out header(s)
• 1 x Thunderbolt header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin EATX 12V Power connectors
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Clear CMOS jumper(s)
• 1 x System panel connector
• 1 x COM port header

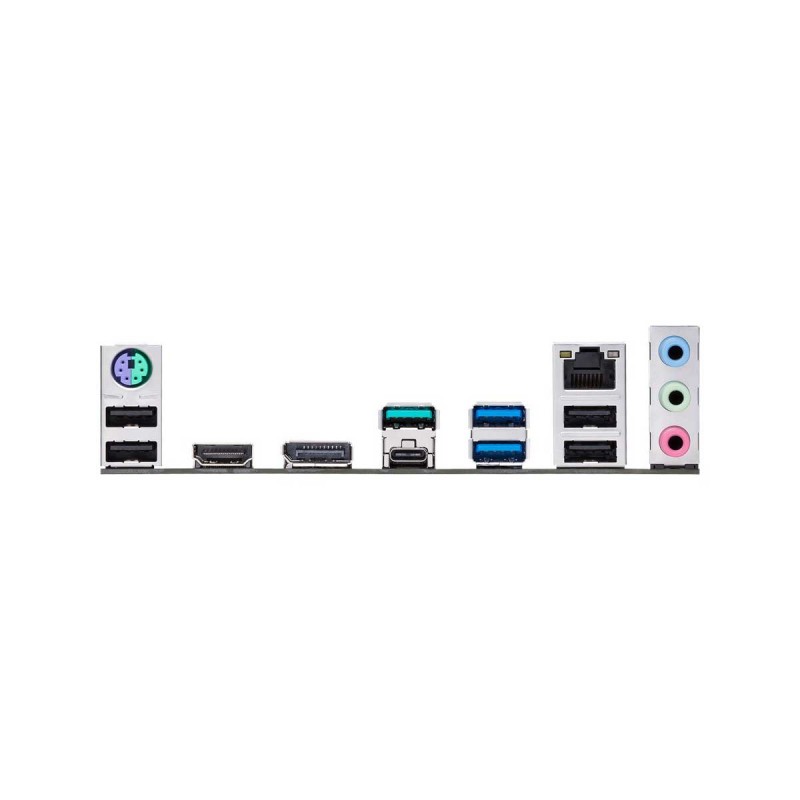

• 1 x PS/2 keyboard/mouse combo port(s)

• 1 x DisplayPort
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C)
• 2 x USB 3.2 Gen 1 Type-A
• 4 x USB 2.0
• * USB_E1, USB_E2, USB_E3 & USB_E4 share bandwidth.
• 3 x Audio jack(s)

• N/A

• Voltage detection
• Temperature detection
• Fan speed detection
• Overheating warning
• Fan fail warning
• Fan speed control
  * Whether the fan speed control function is supported will depend on the fan you install.

• 128 Mb Flash ROM, UEFI AMI BIOS


• ASUS 5X PROTECTION III
  ASUS DIGI+ VRM
  ASUS LANGuard
  ASUS Overvoltage Protection
  ASUS SafeSlot Core
  ASUS Stainless-Steel Back I/O
• ASUS Q-Design
  ASUS Q-DIMM
  ASUS Q-Slot
• ASUS Thermal Solution
  Aluminum M.2 heatsink
  Aluminum heatsink design
• AURA Sync
  Standard RGB header
  Addressable Gen 2 RGB header

• Driver and software disc

• Windows 10 64-bit

• ATX Form Factor, 30.5cm x 23.4cm
