H510 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading. Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning. The maximum memory capacity on the H510 motherboard is 64 GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channel, total memory capacity is 64GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing. Reinforced PCIe 4.0 x 16. Low signal Loss PCB. GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level. Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience. GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

CPU
  • 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
  • 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors*
    * Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family.
  • L3 cache varies with CPU
Chipset
  • Intel H510 Express Chipset (Rev. 1.0 and 1.3)
  • Intel B560 Express Chipset with H510 Featureset (Rev. 1.1)
Memory

11th Generation Intel Core i9 / i7 / i5 processors:

  • Support for DDR4 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz memory modules

10th Generation Intel Core i9 / i7 processors:

  • Support for DDR4 2933 / 2666 / 2400 / 2133 MHz memory modules

10th Generation Intel Core i5 / i3 / Pentium / Celeron processors:

  • Support for DDR4 2666 / 2400 / 2133 MHz memory modules

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics

Integrated Graphics Processor - Intel HD Graphics support

  • 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    The DVI-D port does not support D-Sub connection by adapter.
  • 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
    Support for HDMI 1.4 version and HDCP 2.3.
  • 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    Support for DisplayPort 1.2 version and HDCP 2.3
  • Support for up to 2 displays at the same time
Audio

Realtek Audio CODEC

  • High Definition Audio
  • 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
LAN
  • Realtek GbE LAN chip (1 Gbit/100 Mbit)
Wireless Communication Module

None

Expansion Slots

1 x PCI Express x16 slot, running at x16

  • The PCI Express x16 slot conforms to PCI Express 4.0 standard*
    * Supported by 11th Generation processors only.

2 x PCI Express x1 slots

  • The PCI Express x1 slots conform to PCI Express 3.0 standard.
Multi-Graphics Technology

None

Storage Interface

Chipset:

  • 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
    * The PCIEX1_1 slot shares bandwidth with the M.2 connector. When the PCIEX1_1 slot is populated, the M.2 connector supports up to PCIe 3.0 x2 SSD only.
  • 4 x SATA 6Gb/s connectors
USB

Chipset:

  • 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Chipset+USB 2.0 Hub:

  • 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB header)
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 1 x CPU fan header
  • 2 x system fan headers
  • 1 x RGB LED strip header
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x serial port header
  • 1 x Clear CMOS jumper

＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

Back Panel Connectors
  • 1 x PS/2 keyboard port
  • 1 x PS/2 mouse port
  • 1 x DVI-D port
  • 1 x DisplayPorts
  • 1 x HDMI port
  • 2 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks
I/O Controller
  • iTE I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    Ambient LED
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    Smart Backup
    System Information Viewer
  • Support for Q-Flash
  • Support for Xpress Install
Bundled Software
  • Norton Internet Security (OEM version)
  • Realtek 8118 Gaming LAN Bandwidth Control Utility
Operating System
  • Support for Windows 10 64-bit
Form Factor
  • Micro ATX Form Factor, 24.4cm x 21.0cm

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

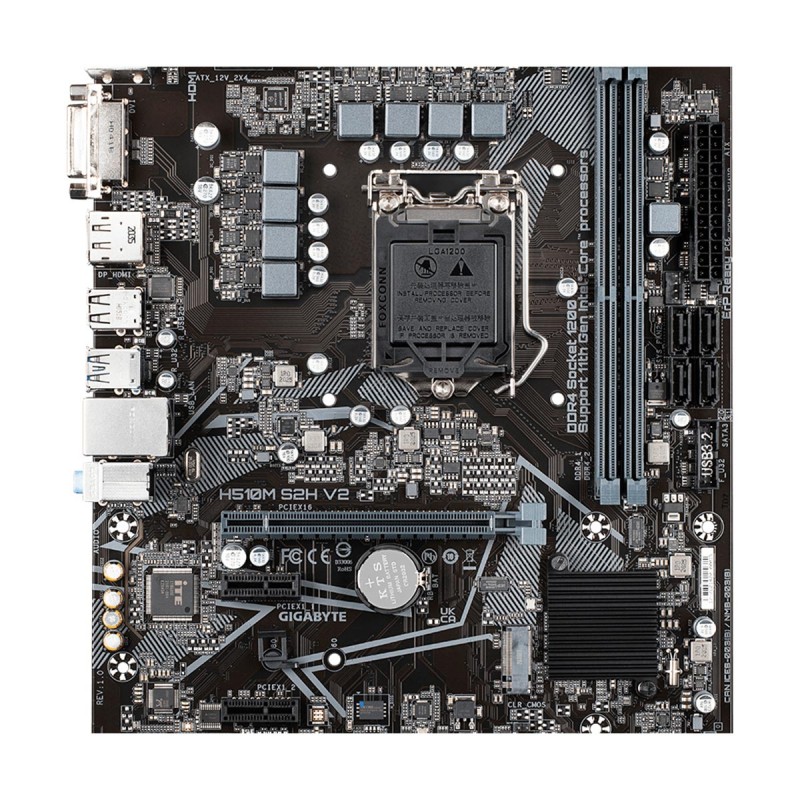

Gigabyte H510M S2H V2, Intel H510 or B560 Chipset, LGA1200, Micro ATX Desktop Motherboard

- Socket LGA1200, Intel H510 or B560 Chipset
- Supports 10th, and 11th Gen Processors
- 2 x DDR4 DIMM Slots, Up To 64GB, DDR4-3200
- 1 x PCIe 4.0 x16 Slot
- 2 x PCIe 3.0 x1 Slots
- 1 x M.2 PCIe 3.0 NVMe Slot
- 4 x SATA 3.0 Ports
- 1Gbps LAN
- 2 x USB Type-A 5Gb/s
- 3 Year Warranty

  • Product Code: GA-H510M-S2H-V2
  • Availability: Out Of Stock leadtimeTooltip Lead Times:
    • In Stock with Progenix: Ready for collection/dispatch once payment clears
    • In Stock: 1-3 working days until dispatched or ready for collection
    • Out Of Stock: Contact us to see if this item will be restocked.

  • R1,979



Price displayed is already subject to a 4% discount for EFT payments

0 reviews / Write a review
