• Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket


• Intel Z490 Express Chipset


• 4 x DDR4 memory slots, support up to 128GB

• Supports 1R 2133/2666/2933 MHz
  1DPC 1R Max speed up to 5000+ MHz
  1DPC 2R Max speed up to 4500+ MHz
  2DPC 1R Max speed up to 4400+ MHz
  2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC mode, un-buffered memory
• Supports Intel Extreme Memory Profile (XMP)

Intel JHL7540 Thunderbolt 3 Controller

• 2x Thunderbolt 3 (Type-C) ports on the back panel
• Supports Thunderbolt 3 with a maximum resolution of 5120x2880 @60 Hz
• Supports DisplayPort 1.4 with a maximum resolution of 4096x2304 @60 Hz
• Maximum shared memory is 1GB
  * Thunderbolt 3 supports two displays in 4K resolution or one display in 5K resolution.

• Realtek ALC1220 Codec + ESS E9018 combo DAC
• 7.1-Channel High Definition Audio
• Supports Optical S/PDIF output

• 1x Aquantia AQC107 10G LAN controller

• 1x Realtek RTL8125B 2.5G LAN controller

Intel AX201

• Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
• WiFi 6 Pre-Certified
• Supports Bluetooth 5.1 , FIPS, FISMA
• The Wireless module is pre-install in the M2 (Key-E) slot

• 3x PCIe 3.0 x16 slots, support x16/ x0/ x4 or x8/ x8/ x4 mode
• PCI_E1 & PCI_E2 slots (From CPU)
  Support up to PCIe 4.0 for 11th Gen Intel CPU
  Support up to PCIe 3.0 for 10th Gen Intel CPU
• PCI_E3 slot (From chipset)
  Supports up to PCIe 3.0
• 1x PCIe 3.0 x1 slot

• Supports 2-Way NVIDIA SLI Technology

• Supports 3-Way AMD CrossFire Technology

Chipset:

• 6x SATA 6Gb/s ports

• 3x M.2 slots (Key M)
• M2_1 slot
  CPU support mode (From 11th Gen Intel CPU only)- supports PCIe 4.0 x4/3.0 x4
  Chipset support mode-supports PCIe 3.0 x4 and SATA 6Gb/s
  Supports 2242/ 2260/ 2280/ 22110 storage devices
• M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
• M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
• Intel Optane Memory Ready
• Supports Intel Smart Response Technology for Intel Core processors
• SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
• SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_2 slot.
• Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

Chipset

• 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector)
• 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

ASMedia ASM1074 Chipset

• 8x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 4 ports through the internal USB 3.2 Gen 1 5Gbps connectors)

Intel JHL7540 Thunderbolt 3 Controller

• 2x USB 3.2 Gen 2 10Gbps Type-C ports on the back panel

• 1 x 24-pin ATX main power connector

• 2 x 8-pin ATX 12V power connectors
• 1 x 6-pin ATX PCIE power connector
• 6 x SATA 6Gb/s connectors
• 3 x M.2 slots (M-Key)
• 1 x USB 3.2 Gen 2 10Gbps Type-C port
• 2 x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin water-pump fan connector
• 8 x 4-pin system fan connectors
• 1 x 3-pin Water Flow connector
• 1 x Front panel audio connector
• 2 x System panel connectors
• 1 x Chassis Intrusion connector
• 2 x 2-pin Thermal Sensors connectors
• 1 x TPM module connector
• 1 x 4-pin RGB LED connector
• 2 x 3-pin RAINBOW LED connectors
• 1 x 3-pin CORSAIR LED connector

• 1 x Clear CMOS Button

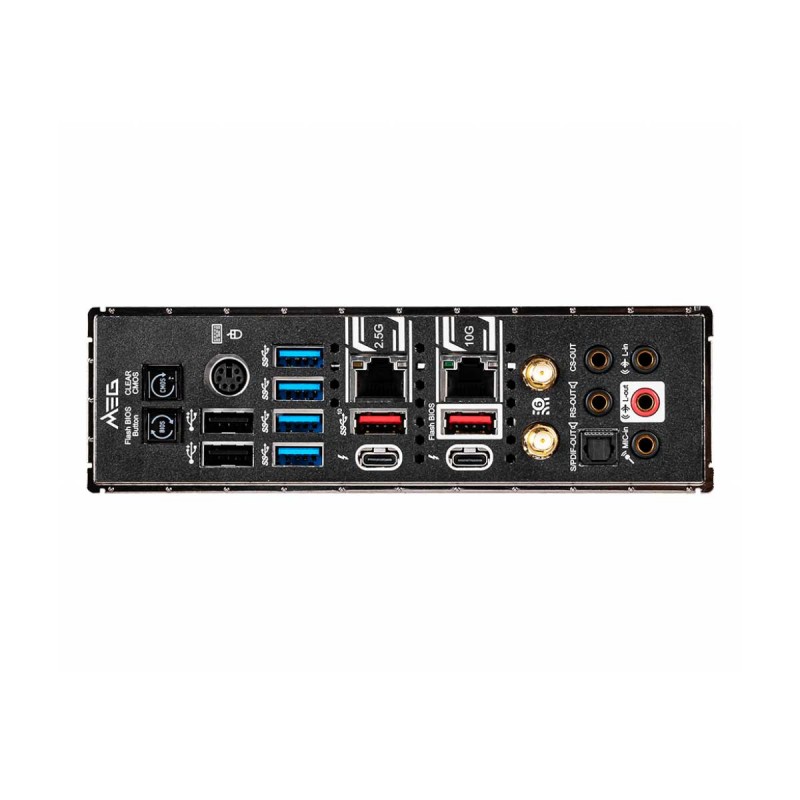

• 1 x PS/2 Keyboard / Mouse Port
• 4 x USB 3.2 Gen1 5Gbps (Type-A)
• 1 x 2.5G LAN
• 1 x 10G Super LAN
• 2 x Wi-Fi /Bluetooth Antenna Connectors
• 5 x HD Audio Connectors
• 1 x Flash BIOS Button
• 2 x USB 2.0
• 2 x Thunderbolt 3 (40Gbps)
• 2 x USB 3.2 Gen2 10Gbps (Type-A)
• 1 x Optical S/PDIF-Out

• N/A

• Voltage detection
• Temperature detection
• Fan speed detection
• Overheating warning
• Fan fail warning
• Fan speed control
  * Whether the fan speed control function is supported will depend on the fan you install.

• N/A

• N/A

• Driver Disc

• Support for Windows 10 64-bit

• E-ATX Form Factor, 30.5cm x 27.7cm
