• Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket


• Intel Z590 Express Chipset


• 4x DDR4 memory slots, support up to 128GB

• Supports 1R 2133 / 2666 / 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
• Supports 1R 2133 / 2666 / 2933 / 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)
• Max overclocking frequency:
  1DPC 1R Max speed up to 5600 MHz
  1DPC 2R Max speed up to 4800+ MHz
  2DPC 1R Max speed up to 4400+ MHz
  2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel Extreme Memory Profile (XMP)

• 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz

• Available only on processors featuring integrated graphics.

• Realtek ALC4082 Codec + ESS SABRE9018Q2C Combo DAC/HPA
  7.1-Channel High Definition Audio
  Supports S/PDIF output

• 1x Intel I225V 2.5Gbps LAN controller


• Intel Wi-Fi 6E AX210
  The Wireless module is pre-installed in the M.2 (Key-E) slot
  Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz (160MHz) up to 2.4Gbps
  Supports 802.11 a/ b/ g/ n/ ac/ ax
  Supports Bluetooth 5.2, FIPS, FISMA
  Wi-Fi 6E 6GHz depend on country regulations support and will be ready in WIN10 21H1.Bluetooth 5.2 will be ready in WIN10 21H1.

• 3x PCIe x16 slots
  Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4
• PCI_E1 & PCI_E3 slots (From CPU)
  Support up to PCIe 4.0 for 11th Gen Intel CPU
  Support up to PCIe 3.0 for 10th Gen Intel CPU
• PCI_E5 slot (From Z590 chipset)
  Supports up to PCIe 3.0
• 2x PCIe 3.0 x1 slots (From Z590 chipset)

• Supports 2-Way NVIDIA SLI Technology

• Supports 3-Way AMD CrossFire Technology

Chipset:

• 6x SATA 6Gb/s ports (from Z590 chipset)

• 4x M.2 slots (Key M)
• M2_1 slot (from CPU)
  Available only on 11th Gen Intel CPU
  Supports up to PCIe 4.0 x4
  Supports 2242/ 2260/ 2280/ 22110 storage devices
• M2_2, M2_3, M2_4 slots (from Z590 chipset)
  M2_2 , M2_3 & M2_4 support up to PCIe 3.0 x4
  M2_2 & M2_3 support up to SATA 6Gb/s
  M2_4 slot supports PCIe only.
  Supports 2242/ 2260/ 2280 storage devices
  Intel Optane Memory Ready
• Supports Intel Smart Response Technology for Intel Core processors

SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_3 slot.

M2_4 bandwidth will switch from x4 to x2 when PCI_E5 slot is inserted.

Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

Intel Z590 Chipset

• 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A port on the back panel, 1 Type-C internal connector)
• 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel, 2 ports available through internal USB connector)
• 2x USB 2.0 Type-A ports on the back panel

Hub-GL850G

• 4x USB 2.0 ports through internal USB connectors

Intel JHL8540 Thunderbolt 4 Controller

• 2x Thunderbolt 4 (USB-C) ports on the back panel
• Support up to 40Gbps transfer rate with Thunderbolt devices
• Support up to 20Gbps transfer rate with USB4 devices
• Support up to 10Gbps transfer rate with USB 3.2 devices
• Support up to 5V/3A ,15W power charging
• Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
• Supports up to 8K display (need to connect the DisplayPort of the motherboard or discrete graphics card to the Mini DisplayPort Input port on the back panel)

• 1 x 24-pin ATX main power connector

• 2 x 8-pin ATX 12V power connectors
• 1 x 6-pin PCIE power connector
• 6 x SATA 6Gb/s connectors
• 4 x M.2 slots (M-Key)
• 1 x USB 3.2 Gen 2 10Gbps Type-C connector
• 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin water-pump fan connector
• 6 x 4-pin system fan connectors
• 1 x Front panel audio connector
• 2 x System panel connectors
• 1 x Chassis Intrusion connector
• 1 x TPM module connector
• 1 x Tuning Controller connector

• 1 x Clear CMOS Button

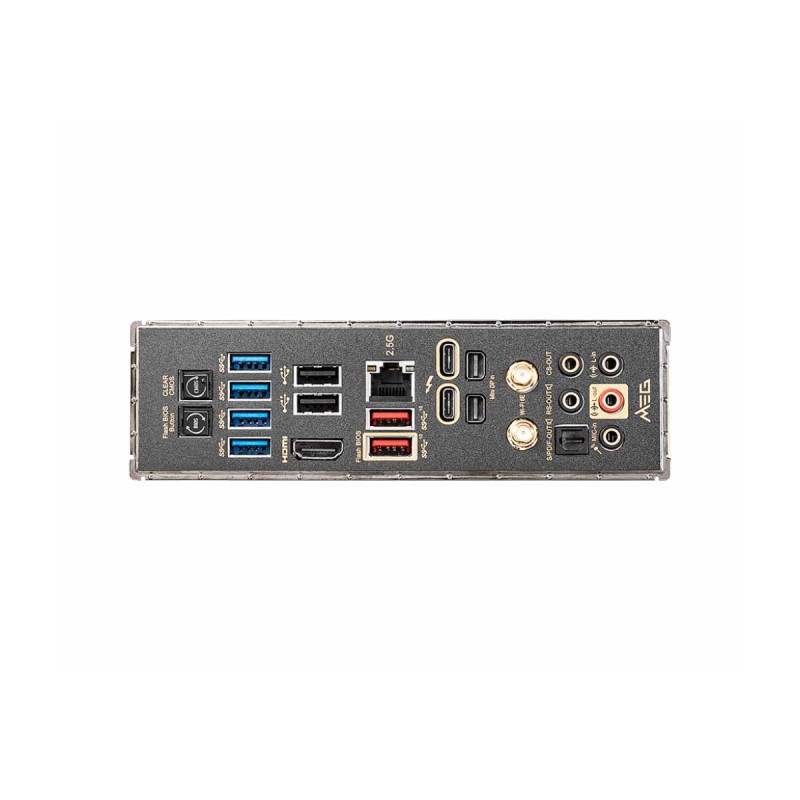

• 4 x USB 3.2 Gen1 5Gbps (Type-A)
• 2 x USB 2.0
• 1 x 2.5G LAN
• 2 x Thunderbolt 4 40Gbps (Type-C)
• 2 x Wi-Fi / Bluetooth
• 5 x HD Audio Connectors
• 1 x Flash BIOS Button
• 1 x HDMI
• 2 x USB 3.2 Gen2 10Gbps (Type-A)
• 2 x Mini DisplayPort Input (for Thunderbolt passthrough)
• 1 x Optical S/PDIF-Out

• N/A

• Voltage detection
• Temperature detection
• Fan speed detection
• Overheating warning
• Fan fail warning
• Fan speed control
  * Whether the fan speed control function is supported will depend on the fan you install.

• N/A

• 1 x EZ LED Control switch

• 1 x 2-Digit Debug Code LED
• 4 x EZ Debug LED
• 1 x 4-pin RGB LED connector
• 2 x 3-pin RAINBOW LED connectors
• 1 x 3-pin JCORSAIR LED connector

• Driver Disc

• Support for Windows 10 64-bit

• ATX Form Factor, 30.5cm x 24.4cm
