Images are for reference purposes only and product appearances/colours may vary.

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

CPU
  • Supports 10th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Chipset
  • Intel H470 Express Chipset with H510 Featureset
Memory
  • 2 x DDR4 memory slots, support up to 64GB
  • Memory Support 2933 / 2666 / 2400 / 2133 MHz
  • Supports 1R 2133 / 2666 / 2933 MHz for Intel Core i9 / Core i7 CPU
  • Supports 1R 2133 / 2666 MHz for Intel Core i5 / Core i3 / Pentium Gold and Celeron CPU
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel Extreme Memory Profile (XMP)
Onboard Graphics
  • 1 x HDMI 1.4, maximum resolution of 4K 30Hz
  • 1 x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz
Audio

Realtek ALC897 Codec

  • 7.1-Channel High Definition Audio
LAN

Realtek 8111H Gigabit LAN

  • Supports 10/100/1000 Mbps
Wireless Communication Module

None

Expansion Slots

CPU

  • 1 x PCIe x16 slot
    Support up to PCIe 3.0

Chipset

  • 1 x PCIe 3.0 x1 slot
Multi-Graphics Technology

None

Storage Interface

Chipset

  • M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
  • 4 x SATA 6G
USB

Chipset

  • 4 x USB 2.0 (Rear)
  • 4 x USB 2.0 (Front)
  • 2 x USB 3.2 Gen1 Type A (Rear)
  • 2 x USB 3.2 Gen1 Type A (Front)
Internal I/O Connectors
  • 1 x Power Connector(ATX_PWR)
  • 1 x Power Connector(CPU_PWR)
  • 1 x CPU Fan
  • 2 x System Fan
  • 2 x Front Panel (JFP)
  • 1 x Chassis Intrusion (JCI)
  • 1 x Front Audio (JAUD)
  • 1 x Com Port (JCOM)
  • 1 x RGB LED connector(JRGB)
  • 1 x TPM pin header(Support TPM 2.0)
  • 4 x USB 2.0 ports
  • 2 x USB 3.2 Gen1 Type A ports

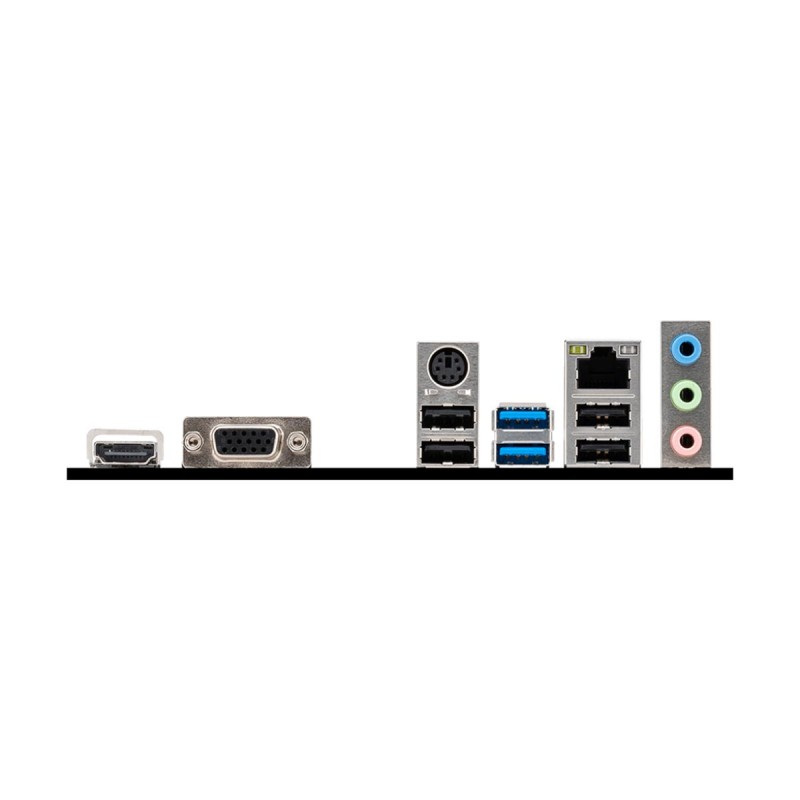

Back Panel Connectors
  • 1 x HDMI
  • 1 x VGA
  • 1 x Keyboard / Mouse
  • 2 x USB 3.2 Gen 1 5Gbps (Type-A)
  • 1 x LAN port
  • 3 x Audio Connectors
  • 4 x USB 2.0
I/O Controller
  • N/A
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
    * Whether the fan speed control function is supported will depend on the fan you install.
BIOS
  • N/A
Unique Features
  • 4 x EZ Debug LED
Bundled Software
  • Driver Disc
Operating System
  • Support for Windows 10 / 11 64-bit
Form Factor
  • Micro-ATX Form Factor, 23.6cm x 20.2cm

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

MSI PRO H510M-B, Intel H470 Chipset, LGA1200, Micro ATX Desktop Motherboard

- Socket LGA1200, Intel H470 Chipset
- Supports 10th Gen Processors
- 2 x DDR4 DIMM Slots, Up To 64GB, DDR4-2933
- 1 x PCIe 3.0 x16 Slot
- 1 x PCIe 3.0 x1 Slot
- 1 x M.2 PCIe 3.0 NVMe Slot
- 4 x SATA 3.0 Ports
- 1Gbps LAN
- 2 x USB Type-A 5Gb/s
- Form Factor: Micro ATX
- 3 Year Warranty

  • Product Code: PRO H510M-B
  • Availability: Out Of Stock leadtimeTooltip Lead Times:
    • In Stock with Progenix: Ready for collection/dispatch once payment clears
    • In Stock: 1-3 working days until dispatched or ready for collection
    • Out Of Stock: Contact us to see if this item will be restocked.

  • R1,576



Price displayed is already subject to a 4% discount for EFT payments

0 reviews / Write a review
