Images are for reference purposes only and product appearances/colours may vary.

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.

CPU

AMD Socket AM4

  • Supports AMD Ryzen 5000 & 3000 Series desktop processors, AMD Ryzen 4000 G-Series desktop processors
  • Not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G
ChipsetAMD B550
Memory

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

  • Supports DDR4 1866 / 2133 / 2400 / 2667 / 2800 / 2933 / 3000 / 3066 / 3200 MHz by JEDEC
  • Supports DDR4 2667 / 2800 / 2933 / 3000 / 3066 / 3200 / 3466 / 3600 / 3733 / 3866 / 4000 / 4133 / 4266 / 4400+ MHz by A-XMP OC MODE
    • 1DPC 1R max speed 4400 MHZ
    • 1DPC 2R max speed 3733 MHZ
    • 2DPC 1R max speed 3866 MHZ
    • 2DPC 2R max speed 3466 MHZ
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory
  • Supports un-buffered memory
Onboard Graphics

Integrated Graphics Processor:

  • 1 x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
  • 1 x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
  • 1 x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
    • Support HDCP 1.4 & 2.3

Maximum shared memory of 16 GB

Audio

Realtek ALC892/ALC897 Codec

  • 7.1-Channel High Definition Audio
LAN

Realtek 8111HN Gigabit LAN controlle

  • 1Gbps/100 Mbps
Wireless Communication Module

None

Expansion Slots

1 x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1

2 x PCIe 3.0 x1 slots

Storage Interface

Chipset:

  • 4 x SATA 6Gb/s ports
  • 2 x M.2 slots (Key M)
    • M2_1 slot (from AMD Processor)
      • Supports PCIe 4.0/ 3.0 x4 1
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
    • M2_2 slot (from AMD B550 chipset)
      • Supports PCIe 3.0x4
      • Supports 2242/ 2260/ 2280 storage devices

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

CPU:

  • 4 x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Chipset:

  • 3 x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6 x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 2 x M.2 slots (M-Key)
  • 1 x USB 3.2 Gen 1 5Gbps Type-C port
  • 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin water-pump fan connector
  • 3 x 4-pin system fan connectors
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x Serial port connector
  • 1 x Chassis Intrusion connector
  • 2 x 4-pin RGB LED connectors
  • 2 x 3-pin RAINBOW LED connectors
  • 1 x TPM module connector
  • 1 x Clear CMOS jumper

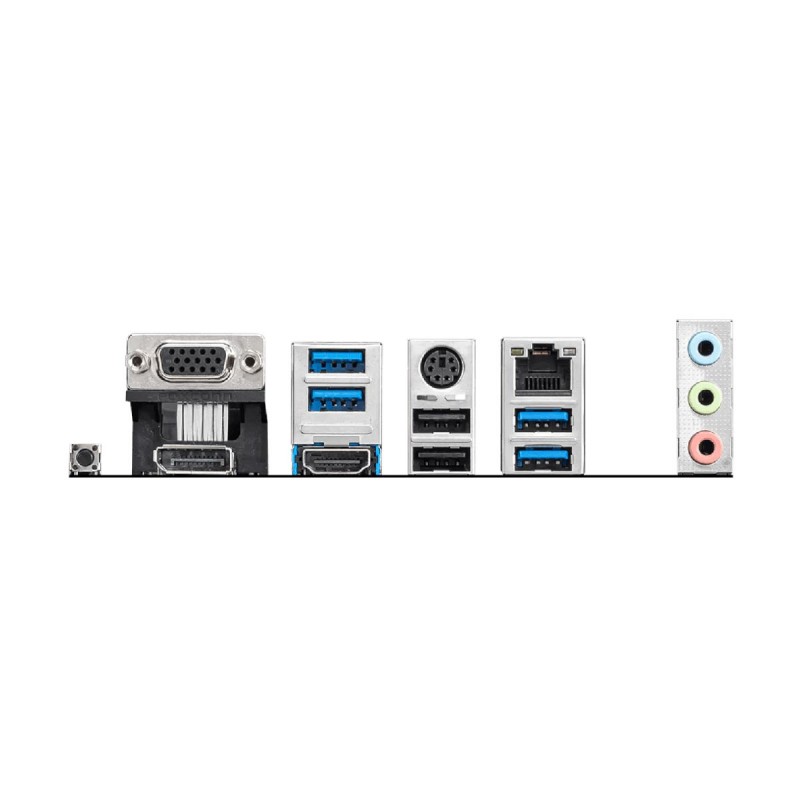

Back Panel Connectors
  • 1 x VGA
  • 4 x USB 3.2 Gen 1 5Gbps Type-A
  • 1 x Keyboard / Mouse
  • 1 x LAN
  • 1 x Flash BIOS button
  • 1 x DisplayPort
  • 1 x HDMI
  • 2 x USB 2.0
  • 3 x HD Audio Connectors
I/O ControllerNot Specified
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
BIOSNot Specified
Unique FeaturesFlash BIOS Button
EZ Debug LED
Bundled SoftwareDrivers
Operating SystemSupport for Windows 10 64-bit / Windows 11 64-bit
Form Factor

Micro ATX Form Factor

  • 24.4cm x 24.4cm

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

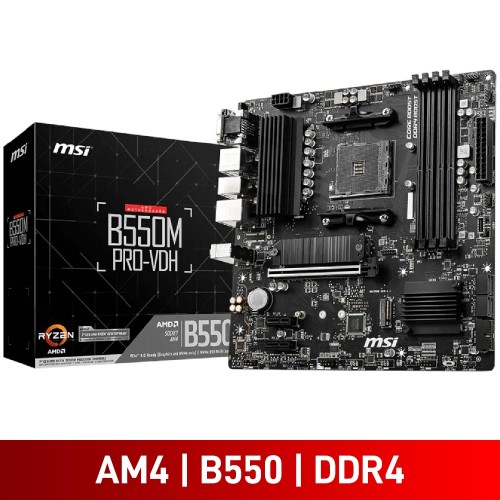

MSI B550M PRO-VDH, AMD B550 Chipset, Socket AM4, Micro ATX Desktop Motherboard

- Socket AM4, AMD B550 Chipset
- Supports Ryzen 3000 to 5000 Series Processors
- Does Not Support Ryzen 3200G / 3400G
- 4 x DDR4 DIMM Slots, up to 128GB, DDR4-4400+ (OC)
- 1 x PCIe 4.0 x16 Slot
- 2 x PCIe 3.0 x1 Slots
- 1 x M.2 PCIe 4.0 NVMe Slot
- 1 x M.2 PCIe 3.0 NVMe Slot
- 4 x SATA 3.0 Ports with RAID 0 / 1 / 10
- 1Gbps LAN
- 4 x Rear USB Type-A 5Gb/s
- 2 x Rear USB 2.0/1.1 Ports
- 1 x PS/2 Keyboard/Mouse Port
- 3 x Rear Audio Jacks
- M.2 Shield Frozr
- EZ Debug LED for Diagnosis
- Flash BIOS - Update BIOS without CPU / RAM / GPU
- 2 x ARGB Headers
- Form Factor: Micro ATX
- 3 Year Warranty

  • Product Code: 7C95-017R
  • Availability: In Stock with Supplier leadtimeTooltip Lead Times:
    • In Stock with Progenix: Ready for collection/dispatch once payment clears. The cut-off for same-day dispatch is 12:00pm on business days.
    • In Stock with Supplier: 1-3 business days until dispatched or ready for collection
    • Special Order Item: Ordered specially upon request. Contact us for estimated lead times.
    • Out Of Stock: Contact us to see if this item will be restocked.

  • R2,314



Price displayed is already subject to a 4% discount for EFT payments

0 reviews / Write a review
