Images are for reference purposes only and product appearances/colours may vary.

Supports AMD Ryzen 7000 Series Desktop Processors. Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC). Core Boost : With premium layout and digital power design to support more cores and provide better performance. Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility. Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2. AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience. Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

CPU
  • Socket AM5 supports AMD Ryzen 7000 Series Desktop Processors
Chipset
  • AMD A620
Memory
  • 2 x DDR5, Maximum Memory Capacity 64GB
  • Memory Support DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(JEDEC) / 5400(JEDEC) / 5200(OC) / 5000(JEDEC) / 4800(JEDEC) MHz
  • Max. overclocking frequency:
    1DPC 1R Max speed up to 6400+ MHz
    1DPC 2R Max speed up to 6000+ MHz
  • Support Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports AMD EXPO
Onboard Graphics

Integrated Graphics Processor:

  • 1x HDMI
    Support HDMITM 2.1, maximum resolution of 4K 60Hz
  • 1x VGA
    Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Audio

Realtek ALC897 Codec

  • 7.1-Channel High Performance Audio
LAN
  • Realtek RTL8111H Gigabit LAN
Wireless Communication Module

None

Expansion Slots

CPU:

  • 1x PCI-E x16 slot
    PCI_E1 Gen PCIe 4.0 supports up to x16

Chipset:

  • 1x PCI-E x1 slot
    PCI_E2 Gen PCIe 3.0 supports up to x1
Multi-Graphics Technology
  • N/A
Storage Interface

CPU:

  • 1 x M.2 slot
    * M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

Chipset:

  • 4 x SATA 6G port

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

USB

Rear:

  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type A

Front:

  • 2 x USB 3.2 Gen1 Type A
  • 4 x USB 2.0
Internal I/O Connectors
  • 1 x Power Connector(ATX_PWR)
  • 1 x Power Connector(CPU_PWR)
  • 1 x CPU Fan
  • 2 x System Fan
  • 2 x Front Panel (JFP)
  • 1 x Chassis Intrusion (JCI)
  • 1 x Front Audio (JAUD)
  • 1 x Com Port (JCOM)
  • 1 x RGB LED connector(JRGB)
  • 1 x TPM pin header(Support TPM 2.0)
  • 4 x USB 2.0 ports
  • 2 x USB 3.2 Gen1 Type A ports
Back Panel Connectors
  • 1 x HDMI
  • 1 x VGA
  • 2 x Keyboard/Mouse
  • 4 x USB 3.2 Gen 1 5Gbps (Type-A)
  • 1 x LAN port
  • 3 x Audio connectors
  • 2 x USB 2.0
I/O Controller
  • Not Specified
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Fan fail warning
  • Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  • Not Specified
Unique Features
  • 4 x EZ Debug LED
Bundled Software
  • Drivers
Operating System
  • Support for Windows 10 64-bit / Windows 11 64-bit
Form Factor
  • Micro ATX Form Factor, 24.4cm x 24.4cm

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

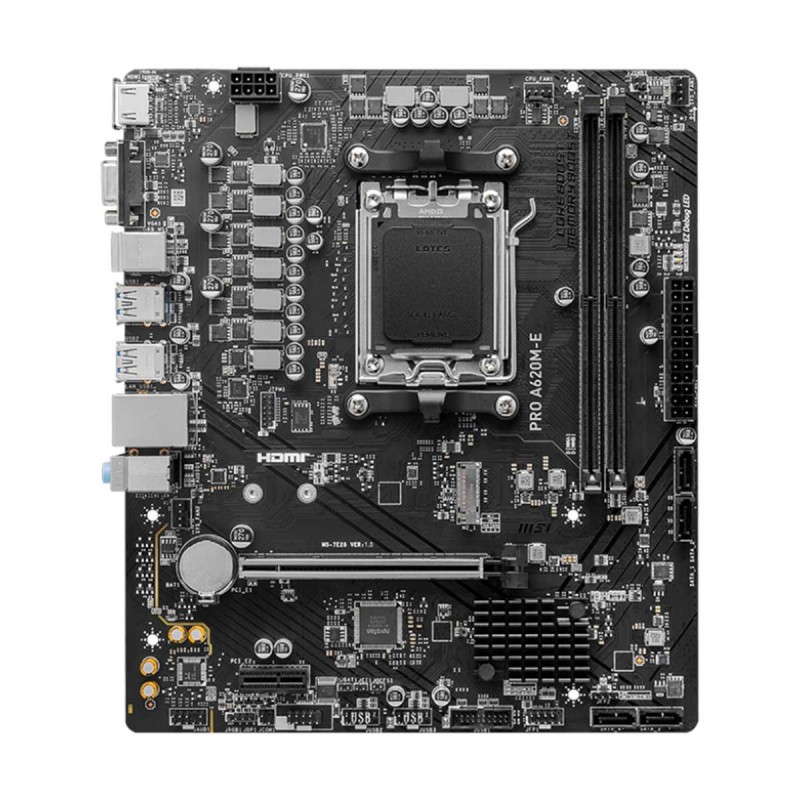

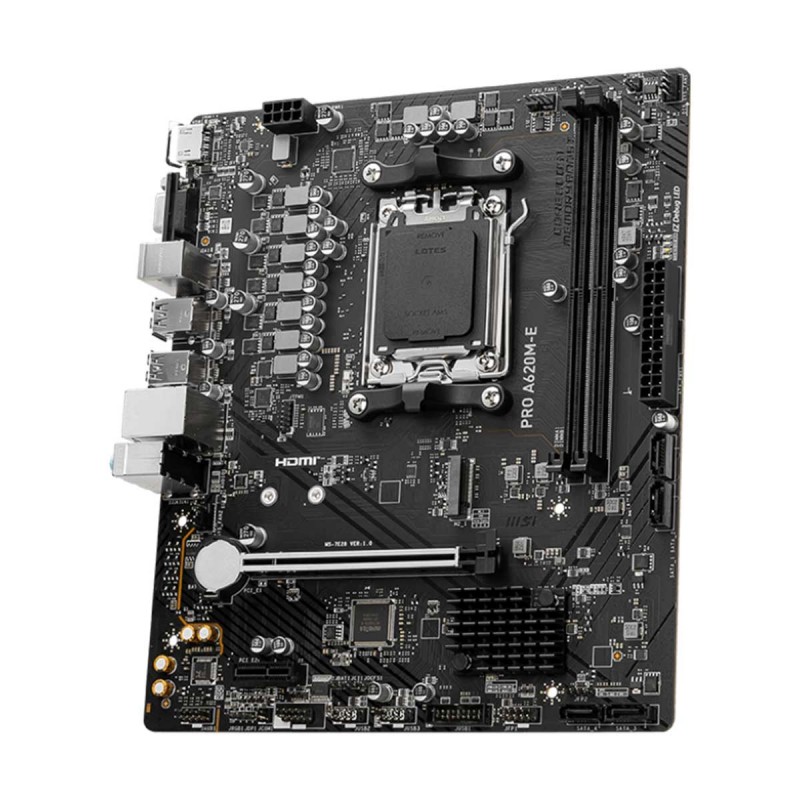

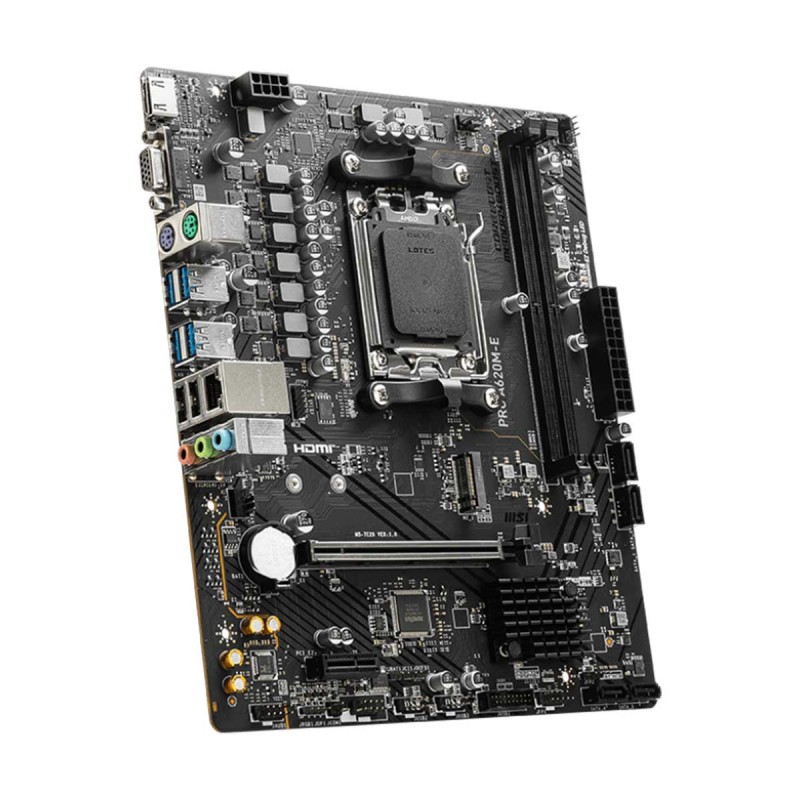

MSI PRO A620M-E, AMD A620 Chipset, Socket AM5, Micro ATX Desktop Motherboard
